Frame：H355~H1000
Rated power：
3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V
Frequency：50HZ or 60HZ
Speed：3000rpm, 1500rpm, 1000rpm,750rpm,600
rpm, 500
rpm, 370
rpm
Power scope：160kW~9000kW
Mounting：IMB3/ IMB5/ IMB35/ IMV1
Protection class：IP54, IP55
Cooling type：IC611
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Simo Motor
-
Model Number:
-
YRKK 560-8P
-
Frequency:
-
50/60Hz
-
Alternative Voltage:
-
3kV, 6kV, 6.6kV, 10kV, 11kV
-
Speed:
-
3000rpm, 1500rpm, 1000rpm, 750rpm
-
Power scope:
-
185~9000KW
-
Mounting:
-
IMB3/ IMB5/ IMB35/ IMV1
-
Protection class:
-
IP54, IP55
-
Cooling type:
-
IC611
-
Insulation:
-
F class(155℃)/ H class(155℃)
-
temperature range:
-
-15°C ~40°C
-
Humidity:
-
No above 90% while 25℃
Quick Details
-
AC Voltage:
-
3000~111000V
-
Warranty:
-
one year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Simo Motor
-
Model Number:
-
YRKK 560-8P
-
Frequency:
-
50/60Hz
-
Alternative Voltage:
-
3kV, 6kV, 6.6kV, 10kV, 11kV
-
Speed:
-
3000rpm, 1500rpm, 1000rpm, 750rpm
-
Power scope:
-
185~9000KW
-
Mounting:
-
IMB3/ IMB5/ IMB35/ IMV1
-
Protection class:
-
IP54, IP55
-
Cooling type:
-
IC611
-
Insulation:
-
F class(155℃)/ H class(155℃)
-
temperature range:
-
-15°C ~40°C
-
Humidity:
-
No above 90% while 25℃

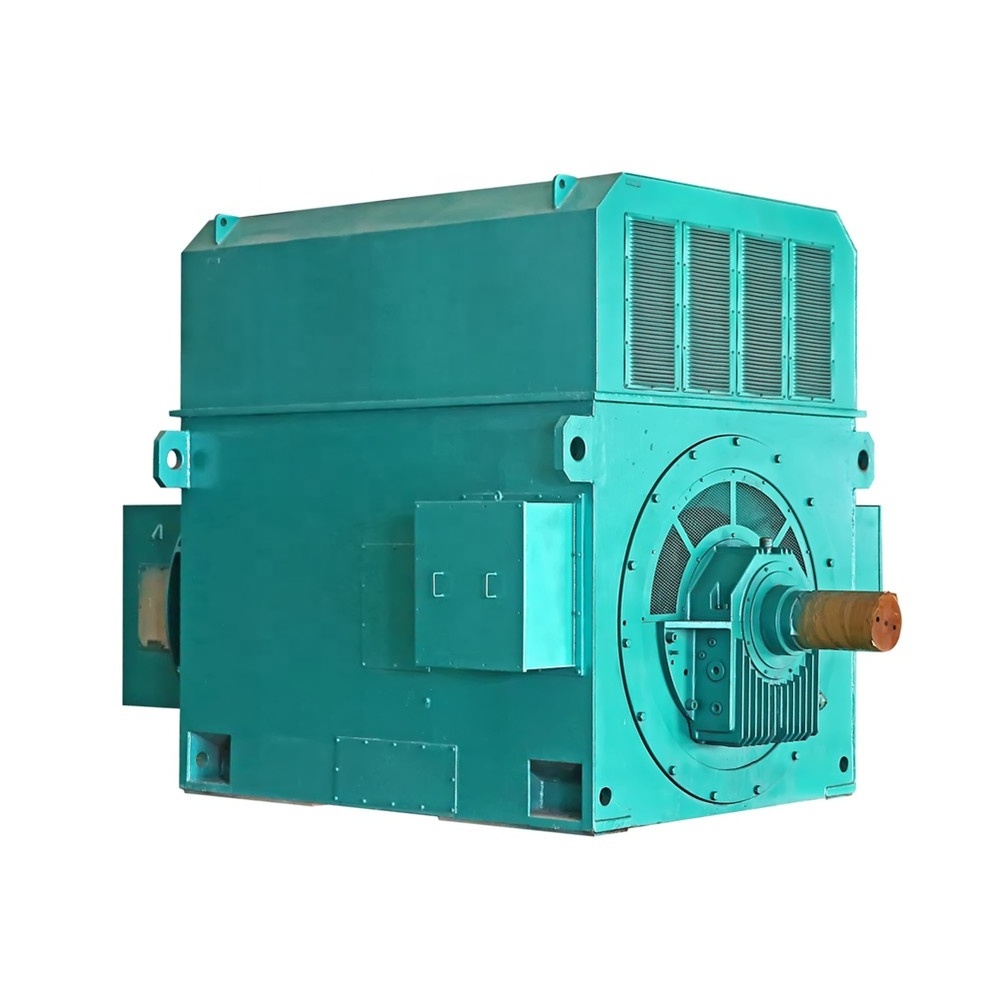

YRKK MEDIUM HIGH VOLTAGE THREE PHASE ELECTRIC MOTOR
Technical Advantages
Simo YRKK series of motor is winding rotor slip ring three-phase asynchronous motor, which can adjust starting torque and starting current through adjust rotor external connected additional resistance. Motor proper adopts box-type steel plate welding structure which has light weight and good rigidity.
Product Features
YRKK motor has advantages of compact structure, light weight, high efficiency, energy-saving, low noise and vibration, high reliability, long service life and convenient installation and maintenance, etc.
Operation Conditions:
Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).
Wide Application
YRKK motor is mainly applied in general machinery equipment or other similar machinery equipment, such as rolling mill, winch, blowers, water pump, mill, crusher, grinder applied in petroleum, chemical engineering, coal, power station, metallurgical, textile, medicine, food processing industries.
Simo YRKK series of motor is winding rotor slip ring three-phase asynchronous motor, which can adjust starting torque and starting current through adjust rotor external connected additional resistance. Motor proper adopts box-type steel plate welding structure which has light weight and good rigidity.
Product Features
YRKK motor has advantages of compact structure, light weight, high efficiency, energy-saving, low noise and vibration, high reliability, long service life and convenient installation and maintenance, etc.
Operation Conditions:
Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).
Wide Application
YRKK motor is mainly applied in general machinery equipment or other similar machinery equipment, such as rolling mill, winch, blowers, water pump, mill, crusher, grinder applied in petroleum, chemical engineering, coal, power station, metallurgical, textile, medicine, food processing industries.
SLIP RING
SIDE
SHAFT
PRODUCT SPECIFICATIONS
|
No.
|
Model
|
Power
|
Voltage
|
Speed
|
Net Weight
|
|
1
|
YRKK-5601-8
|
560KW
|
6000V
|
750 r/min
|
6540 kG
|
|
2
|
YRKK-5602-8
|
630KW
|
6000V
|
750 r/min
|
6830 KG
|
|
3
|
YRKK-5603-8
|
710KW
|
6000V
|
750 r/min
|
6860 KG
|
|
4
|
YRKK-5604-8
|
800KW
|
6000V
|
750 r/min
|
6860 KG
|
Q：Are you the manufacturer or a trading company/distributor?
A: We are the manufacturer of SIMO Brand electric motor. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The specifications, color and dimensions can be customized.
Q: Our existing motor is not SIMO brand, can we use your motor to replace?
A: Yes, we have great design and production team, and we have done many successful cases to replace with other brands’ motors,such as ABB, SIEMENS, WEG, FUJI, TECO etc.
Q: What is the payment terms?
A: 30% T/T in advance, 70% balanced before delivery.
Q: Are the motors in stock?
A: We have large amount of motors in stock, including the IEC motors, DC motors and high voltage motors. But the inventory is
dynamic and not every model will be in stock, please confirm before placing an order.
Q: How is your delivery time?
A: If the motor is in stock, it can be delivered within 7 days.
If not, the delivery time for different type is different, normally 60~90 days.
Q: What is your MOQ of this item ?
A: 1 set per item.
Q: How is your package?
A: All export motors will be well packaged to avoid any possible damages during transportation. Vacuum tin foil packaging inside,
and solid wooden box outside. The motor will be firmly fixed on the box base.
Q: How long is your warranty period?
A: One year since the delivery date.
Q: Can you provide the Certificate of Original ?
A: Yes, sure.
