Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Aokai
-
Model Number:
-
ADK-350A
-
Switch Combination:
-
1NC
-
Rated Current:
-
300A
-
Operation type:
-
Manual
-
Rated voltage:
-
80V
-
Work mode:
-
Continuous
-
Contact form:
-
1 NC
-
Electrical life:
-
continuous 20000times
-
Mechanical life:
-
1,000,000 times
-
Contact material:
-
AgCdo/AgCuo
-
Mechanical Life:
-
1,000,000 Times
-
Certification:
-
ISO9001
Quick Details
-
Protection Level:
-
IP65/IP67/IP68
-
Max. Current:
-
300A
-
Max. Voltage:
-
80V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Aokai
-
Model Number:
-
ADK-350A
-
Switch Combination:
-
1NC
-
Rated Current:
-
300A
-
Operation type:
-
Manual
-
Rated voltage:
-
80V
-
Work mode:
-
Continuous
-
Contact form:
-
1 NC
-
Electrical life:
-
continuous 20000times
-
Mechanical life:
-
1,000,000 times
-
Contact material:
-
AgCdo/AgCuo
-
Mechanical Life:
-
1,000,000 Times
-
Certification:
-
ISO9001

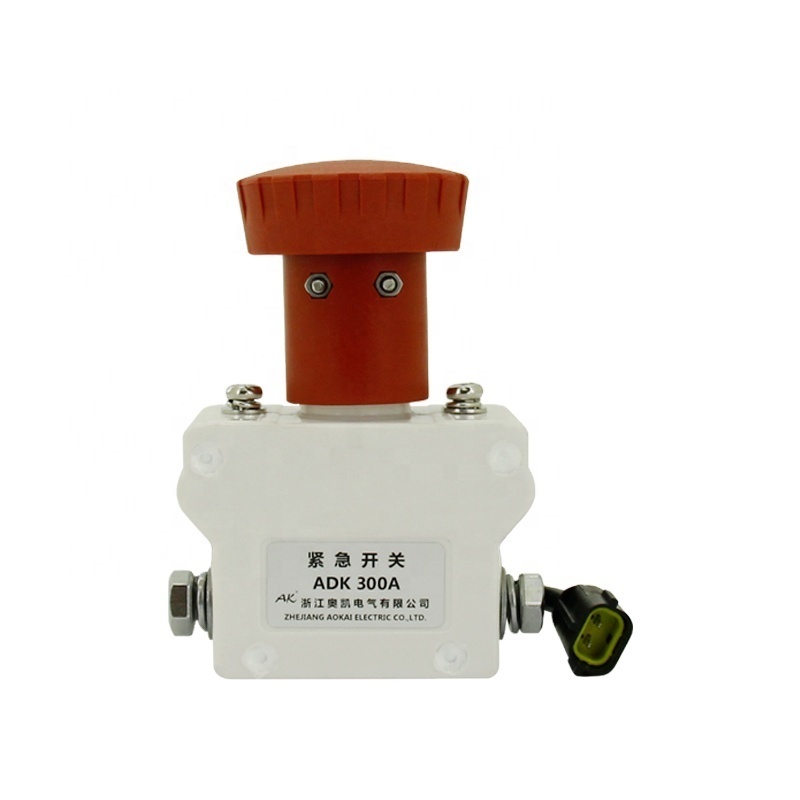

ADK 300A 350A Emergency switch for Electric Forklift truck
| Model | ADK350FS |
| Contact Type | 1NC |
| Contact Material | AgCdO / AgCuO |
| Rated Voltage | ≤80VDC |
| Rated Current (A) | 350A |
| External Auxiliary Switch | Micro Switch |
| Normal Closing Time | ≤100ms |
| Normal Disconnecting Time | ≤50ms |
| Working Duty | Continous |
| Mechanical Life (Cycles) | ≥50,000 |
|
Ambient Temperature
|
-40℃~+85℃ |
| Protection | IP40 |
| Load Wiring Torque | 8-10N.m (M8) |
| Mounting Screw Torque | 3-4N.m (M5) |
| Product Size (mm) | 75X38X123mm |
| PCS/CTN | 40pcs,56x38.5x21cm |
Circuit Diagram
Installation Diagram
Application
