Quick Details
-
Model Number:
-
SJG-2083CS NaOH Concentration meter
-
Product:
-
SJG-2083CS NaOH Concentration meter
-
Power Supply:
-
100-240V AC 50-60Hz
-
Nacl:
-
0%~25%
-
HCl:
-
0%~17.98%, 20.01%~39.07%
-
HNO3:
-
0%~30%
-
NaOH:
-
0%~25.99%, 15.13%~50%
-
H2SO4:
-
0%~30.25%, 91.91%~100%
-
KOH:
-
0~26%, 26~42%
-
Output signal:
-
4~20mA
-
Communication interface:
-
RS485 Modbus RTU
-
Type:
-
SJG-2083CS NaOH Concentration meter
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BOQU
-
Model Number:
-
SJG-2083CS NaOH Concentration meter
-
Product:
-
SJG-2083CS NaOH Concentration meter
-
Power Supply:
-
100-240V AC 50-60Hz
-
Nacl:
-
0%~25%
-
HCl:
-
0%~17.98%, 20.01%~39.07%
-
HNO3:
-
0%~30%
-
NaOH:
-
0%~25.99%, 15.13%~50%
-
H2SO4:
-
0%~30.25%, 91.91%~100%
-
KOH:
-
0~26%, 26~42%
-
Output signal:
-
4~20mA
-
Communication interface:
-
RS485 Modbus RTU
-
Type:
-
SJG-2083CS NaOH Concentration meter
Product Introduction

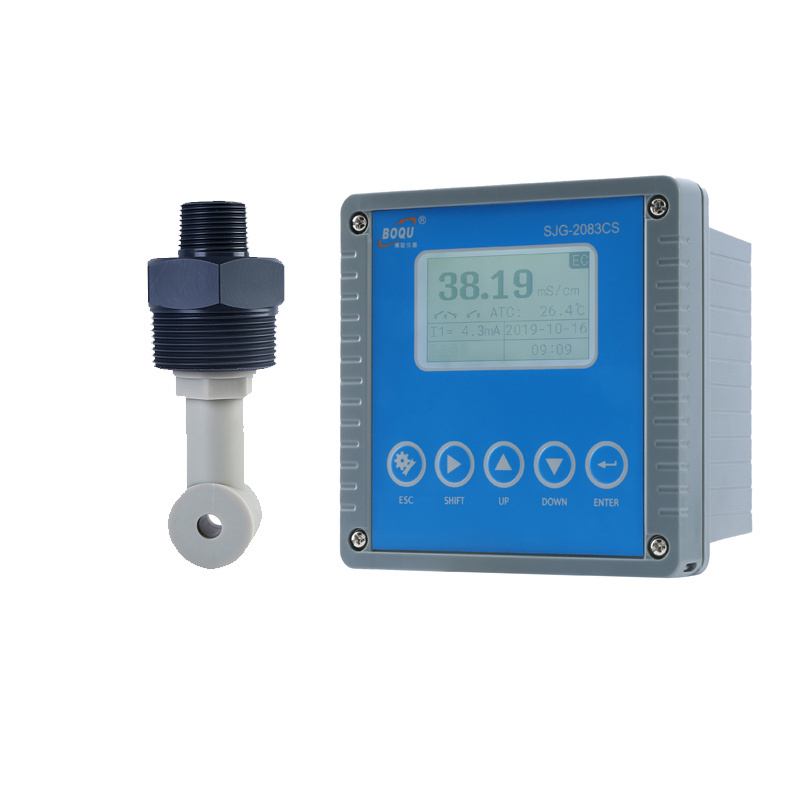

Acid and Alkali Concentration Meter
Model:SJG-2083CS
The SJG-2083CS Acid and Alkali Concentration Meter is a brand-new online smart digital acid and alkali concentration meter with digital inductive conductivity sensor and independently developed and manufactured by BOQU Instrument. It covers the measurement of various solutions like electrical conductivity, sodium chloride, hydrochloric acid, nitric acid, sodium hydroxide and dilute;concentrated sulfuric acid etc.It’s with digital acid-base concentration sensor, which can be widely used in thermal power generation, chemical industry, ion exchange method to produce high-purity water in the process of regenerating liquid concentration, or used to configure boiler pipe pickling liquid, to control the acid-base salt concentration in the solution continuous monitoring.
Technical Features
1.
Extremely quickly and precision Acid-base concentration sensor.
2.
Multi-function: measure conductivity,TDS,salinity and different acid or alkali concentration.
3.
It's suitable for harsh application and free-maintenance,save cost.
4.
Two ways of 4-20mA output for Acid-base concentration and temperature.
5.
Digital Inductive conductivity sensor,precision for harsh application.
6.
With data recording function,user easy to check history data and history curve.
|
Model
|
SJG-2083CS
|
|
|
|
Name
|
Online Acid-base Concentration Analyzer
|
|
|
|
Sensor
|
Digital Inductive Conductivity Sensor
|
|
|
|
Protection
|
IP65
|
|
|
|
Power Supply
|
100 – 240V AC 50;60Hz，24V
|
|
|
|
Output
|
Two ways of 4-20mA
|
|
|
|
Relay
|
Two relays ,5A;250V AC,5A;30V DC
|
|
|
|
Size
|
144×144×104mm
|
|
|
|
Protocol
|
RS485 Modbus RTU
|
|
|
|
Accuracy
|
±2%FS, ±0.1℃
|
|
|
|
Housing
|
ABS
|
|
|
|
Range
|
Conductivity
|
0.00mS;cm~2000.00 mS;cm
|
|
|
|
TDS
|
0~9999.00 mg/L(ppm)
|
|
|
|
Salinity
|
0~80.00 ppt
|
|
|
|
Temperature
|
-40.0~130.0℃
|
|
|
|
NaCl
|
0.00%~25.00%
|
|
|
|
HCl
|
0.00%~17.98% ; 20.01%~39.07%
|
|
|
|
NHO3
|
0.00%~30.00%
|
|
|
|
NaOH
|
0.00%~25.99% ; 15.13%~50.00%
|
|
|
|
H2SO4
|
0.00%~30.25% ; 91.91%~100.00%
|
|
|
|
KOH
|
0~26.00%,26~42.00%
|
|
