Quick Details
-
Weight (KG):
-
400 KG
-
Name:
-
Pallet Notcher Machine
-
Key words:
-
pallet/wood pallet making machine/wood pallet machine
-
Application:
-
Wooden Pallet
-
Power:
-
15KW
-
Material of knife:
-
Alloy
-
Capacity:
-
600-800pics/h
-
Machine size:
-
1200*1100*1200mm
-
Feature:
-
Slot smooth, size consistent
-
Wood pallet length:
-
max 1800mm
-
Wood pallet width:
-
160mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sawmill-World
-
Machine Type:
-
Wood Pallet Machines
-
Weight (KG):
-
400 KG
-
Name:
-
Pallet Notcher Machine
-
Key words:
-
pallet/wood pallet making machine/wood pallet machine
-
Application:
-
Wooden Pallet
-
Power:
-
15KW
-
Material of knife:
-
Alloy
-
Capacity:
-
600-800pics/h
-
Machine size:
-
1200*1100*1200mm
-
Feature:
-
Slot smooth, size consistent
-
Wood pallet length:
-
max 1800mm
-
Wood pallet width:
-
160mm

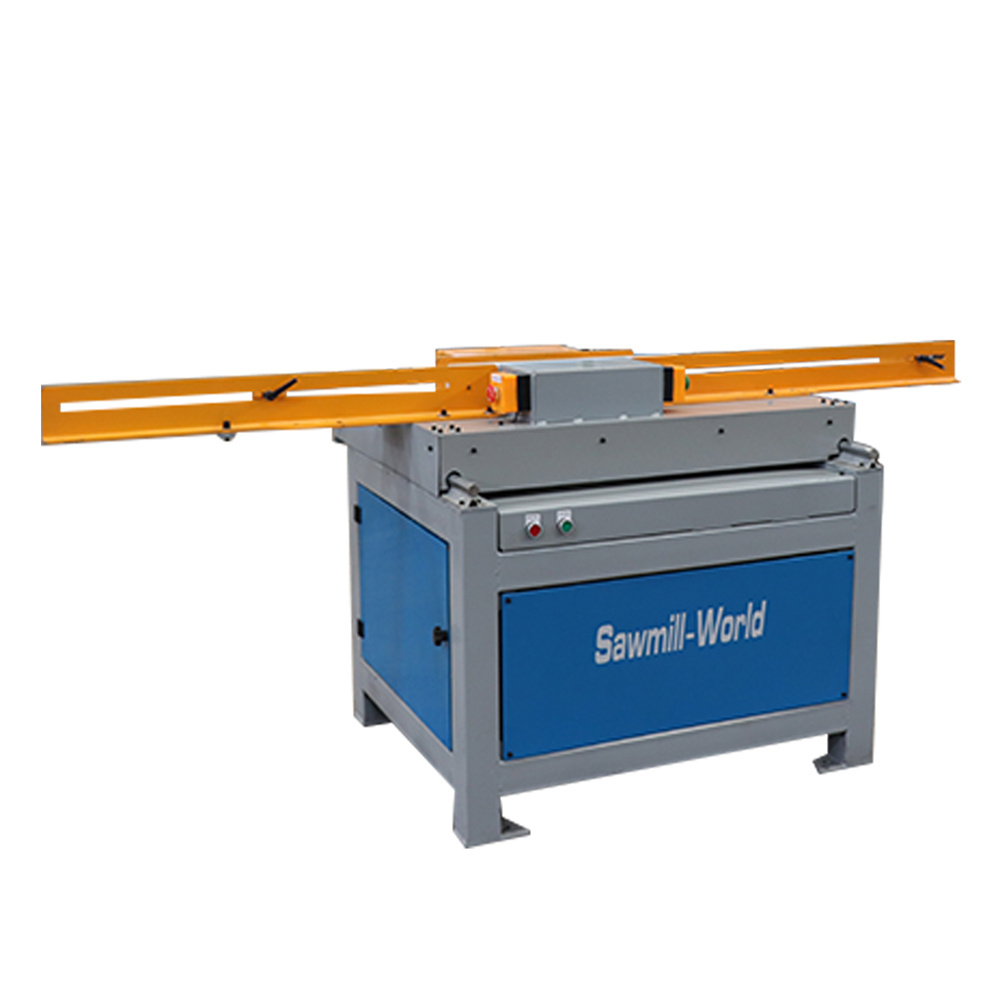

Single/Double Head Wood Tray Notching
Application and Characteristics:
Single/double head tray slotting machine is mainly used to make American standard wooden pallet . Forklifts are much easier to move.
1. Meet the international standard of wooden pallets, but also can be customized to your needs .
2. Can work continuously (feed and discharge), high production efficiency.
3. The operation process is simple and can be used by a single person .
4. The knife adopts hard alloy material, with high hardness, wear resistance, good strength and toughness,heat resistance, corrosion resistance and a series of excellent performance, so as to ensure the long term use of the machine performance
|
Model
|
WPN-1
|
WPN-2
|
|
Power
|
15KW
|
30KW
|
|
Material of knife
|
Alloy
|
Alloy
|
|
Capacity
|
600-800pics/h
|
1800pics/h
|
|
Machine size
|
1200*1100*1200mm
|
2300*1300*1300mm
|
|
Feature
|
Slot smooth, size consistent
|
Slot smooth, size consistent
|
|
Wood pallet length
|
max 1800mm
|
max 1400mm
|
|
Wood pallet width
|
160mm
|
max 90mm
|
|
Slot depth
|
<45mm
|
<45mm
|
|
Slot width
|
200-230mm
|
200-230mm
|
|
Machine wight
|
400KG
|
1000KG
|
Apply for many kinds of slots, also can customized.
pallet machine/pallet making machine/pallet manufacturing machine
Blades are divided into semicircle knives and flat knives. Half round knife 2 pieces, each piece 6 teeth. Flat knife 14 pieces, each piece of 6 teeth.
Continuous feeding and automatic discharging platform, standard size, high precision, the depth and width of the groove sizes can be adjusted.
Detatils
Knife
Blades are divided into semicircle knives and flat knives. Half round knife 2 pieces, each piece 6 teeth. Flat knife 14 pieces,
each piece of 6 teeth.
Feed platform
Continuous feeding and automatic discharging platform, standard size, high precision, the depth and width of the groove sizes can
be adjusted.
Installation and Handling
1.After receiving the equipment, if any serious damage is found, please contact the distributor or manufacturer in time. 2.This machine is a small equipment, suitable for forklift or crane handling, handling please pay attention to keep the mechanical balance, handling process should be careful to avoid machine collision or tilt.
pallet dismantling machine
3.The machine must be placed on the solid concrete ground, mechanical workbench should be placed level.
4.During installation, the cutting tool and all accessories must be securely installed on the body, and all protection devices and safety devices should be installed in the corresponding positions. The machine can only be started when it is in a safe and normal state.
hydraulic hand lift jack/manual pallet truck
5.According to the machine electrical principle to connect the power supply, check whether the switch is normal, check whether the spindle rotation direction is
correct.
woodworking machinery/sawmill-world/sawmill/band saw blade
Routine Maintenance
1. Check, adjust and lubricate the conveying device and transmission device regularly.
wood pallet making machine
2. Regularly check whether the length and tightness of the main motor belt are moderate.
cheap wood pallets
3. Regularly check whether there is sawing dust in the cylinder loop and clean it in time.
blush pallets/robot palletizer
4.the tool should be cleaned regularly (3-5 days) with diesel, with a clean wiping machine cloth, clean the debris and wipe it with a cloth.
pallet/make up pallet/hand pallet truck/euro pallet/electric pallet truck/pallet wrap/pallet wrapper
5. Check whether the spindle nut is
loose regularly.
shredder pallet/shredder wood chipper/shredder
Related Products
Packing & Delivery
We usually pack the wood pallet machines in standard export wooden cases. If you have special request, please contact us in time.Have two modes of transportation: sea and land. We can also deliver the wood pallet cutting band saw to your agent in China if you have.
