Quick Details
-
Welding Mode:
-
TIG MIG MAG SAW PAW
-
Welding Diameter:
-
50-500mm
-
Dimensions:
-
1600mm*1100mm*1400mm
-
Usage:
-
Body Seam Welder
-
Voltage:
-
220V/380V/420V/480V 50/60Hz
-
Weight (KG):
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Blue
-
Gas source pressure:
-
0.4-0.6Mpa
-
Welding Speed:
-
200-1000mm/min
-
Certification:
-
CE Certificate
-
Weight:
-
360KG
-
Power:
-
50W-1500W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DuroWelder
-
Forming Time:
-
1s-10s Adjustable
-
Welding Mode:
-
TIG MIG MAG SAW PAW
-
Welding Diameter:
-
50-500mm
-
Dimensions:
-
1600mm*1100mm*1400mm
-
Usage:
-
Body Seam Welder
-
Voltage:
-
220V/380V/420V/480V 50/60Hz
-
Weight (KG):
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Blue
-
Gas source pressure:
-
0.4-0.6Mpa
-
Welding Speed:
-
200-1000mm/min
-
Certification:
-
CE Certificate
-
Weight:
-
360KG
-
Power:
-
50W-1500W

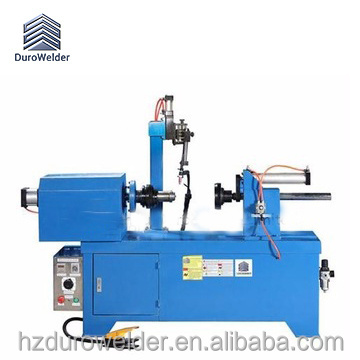

Automatic Argon Arc (Plasma) Circular Seam Welding Machine
Main Features and Applications
Automatic Argon Arc (Plasma) Circular Seam Welding Machine mainly includes two parts : specially designed circular seam Automatic Machinery Part and Standard Welding Source Part.
According to the different request of each welding part, Circular seam Automatic Machinery Part can be designed as Horizontal Type and Vertical Type Circular Seam Welding Machine. Specially designed and produced by our factory.
Standard Welding Source Part includes TIG (tungsten inert gas shielded arc welding), MIG (metal inert gas shielded arc welding), MAG (metal active gas arc welding) SAW (submerged arc welding ), PAW(plasma arc welding), etc. Automatic Machinery Part can be equipped with the standard welding source manufactured by our company, can also work with other well-known brands of welding power .
The Workpiece rotation driving mechanism is composed with converter motor, reduction box , and three-jaw clamp, travel steadily with step less adjustable speed.
Clamp axle and fixing system pressing down , releasing and retreat , welding torch's action all are driven by air cylinders , furthermore welding torch has been equipped with precision micro-adjustment mechanism to get the best welding position.
Automatic Argon Arc (Plasma) Circular Seam Welding Machine mainly includes two parts : specially designed circular seam Automatic Machinery Part and Standard Welding Source Part.
According to the different request of each welding part, Circular seam Automatic Machinery Part can be designed as Horizontal Type and Vertical Type Circular Seam Welding Machine. Specially designed and produced by our factory.
Standard Welding Source Part includes TIG (tungsten inert gas shielded arc welding), MIG (metal inert gas shielded arc welding), MAG (metal active gas arc welding) SAW (submerged arc welding ), PAW(plasma arc welding), etc. Automatic Machinery Part can be equipped with the standard welding source manufactured by our company, can also work with other well-known brands of welding power .
The Workpiece rotation driving mechanism is composed with converter motor, reduction box , and three-jaw clamp, travel steadily with step less adjustable speed.
Clamp axle and fixing system pressing down , releasing and retreat , welding torch's action all are driven by air cylinders , furthermore welding torch has been equipped with precision micro-adjustment mechanism to get the best welding position.
Main Technical Parameter
| Input power supply | 220V/380V/440V/480V, 50/60Hz |
| Motor power | 50W-1500W |
| Gas source pressure | 0.4-0.6Mpa |
| Max welding diameter | 488mm |
| Welding Speed | 200-1000mm/min |
Welding sample
The machine can be customized, please feel free to email us and provide your drawings of the workpiece,We will provide you the reasonable machine design scheme with a favorable price.
