Quick Details
-
Brand Name:
-
BINGO
-
Model Number:
-
FS-E03
-
Operating Temperature:
-
0~+100°C
-
Standard Operate Pressure:
-
100bar
-
Operate Temperature:
-
-20~+80°C
-
Mounting Position:
-
Discretional installation
-
Probe Material:
-
SS
-
Connection:
-
G1/4'' male, G1/2'' or customized
-
Housing Material:
-
PBT, ss
-
Rod Length:
-
1.5cm/2cm/6cm can be customized
-
Certification:
-
CE
Quick Details
-
Media Type:
-
Gas
-
Flow Rate:
-
1-150 cm/s(water)
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
BINGO
-
Model Number:
-
FS-E03
-
Operating Temperature:
-
0~+100°C
-
Standard Operate Pressure:
-
100bar
-
Operate Temperature:
-
-20~+80°C
-
Mounting Position:
-
Discretional installation
-
Probe Material:
-
SS
-
Connection:
-
G1/4'' male, G1/2'' or customized
-
Housing Material:
-
PBT, ss
-
Rod Length:
-
1.5cm/2cm/6cm can be customized
-
Certification:
-
CE
Product Description

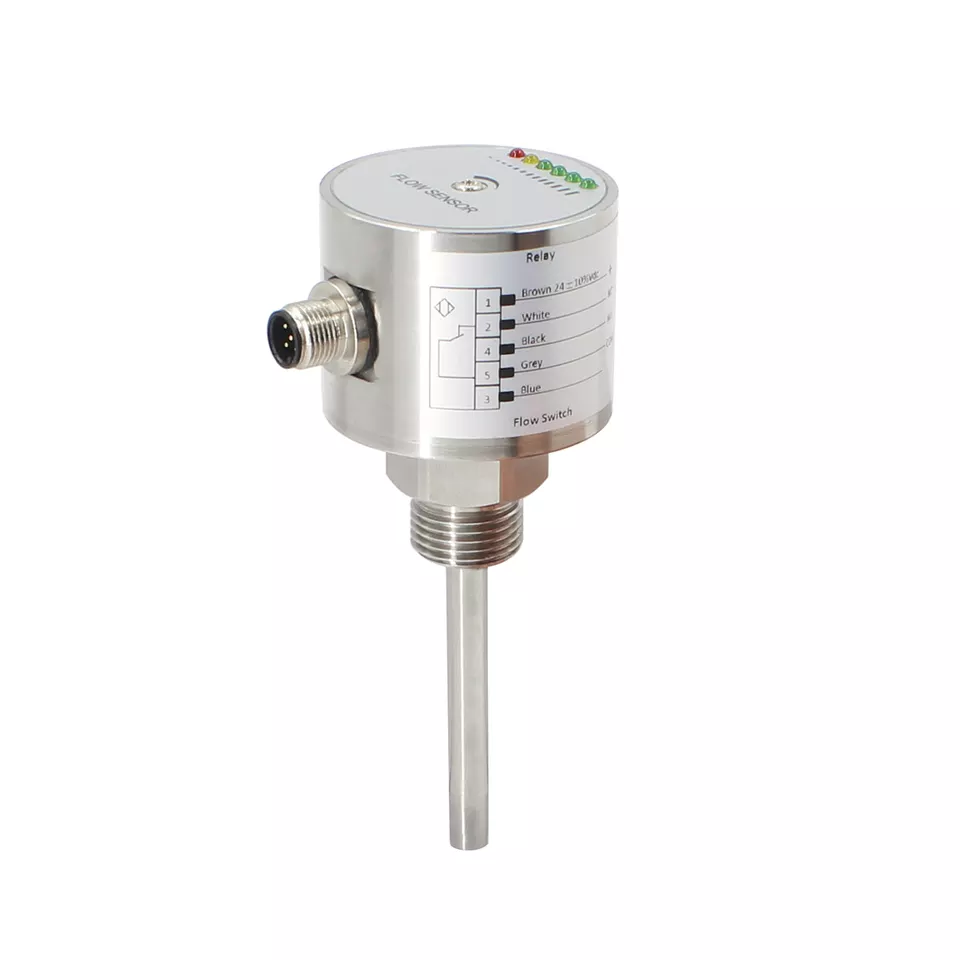

FS-E03 thermal flow switch
The product is on the basis of the principle of thermal, the sealed probe contains two resistors, one is heated, as the detecting resistor, another is not heated, as the benchmark resistance. When the fluid flows, the heat of detecting resistance will be taken away, resistance is changed. The differential resistance value is used as the basis of floe velocity.
No moving parts, maintenance free, easy installation, a model can be suitable for a variety of pipe diameters. Adjustable setting point of flow switch, extremely low pressure loss, compact structure. LED light shows the flow trend and switch state.
Specification
|
Capacity
|
1-150 cm/s(water); 3-300 cm/s (oil); 20-2000 cm/s (air)
|
|
Output
|
PNP. NPN. Relay
|
|
Power supply
|
24VDC or 230V
|
|
Flow indicator
|
6 LED lamps
|
|
Pressure
|
100bar
|
|
Medium temperature
|
-20~80℃
|
|
Wire connection
|
M12 connector
|
|
Material
|
Probe: Stainless Steel
|
|
Current (no load)
|
Max 80mA
|
