Quick Details
-
Model Number:
-
W2R-100
-
Rated Current:
-
100A
-
Product name:
-
ats automatic transfer switch
-
Rated working current:
-
100A
-
Rated working voltage:
-
230V AC
-
Control voltage:
-
AC230V
-
Insulation voltage:
-
690V AC
-
Impact-resistant voltage:
-
8KV
-
Frequency:
-
50/60Hz
-
CONTACTOR CONVERSION TIME:
-
<50ms
-
OPERATION CONVERSION TIME:
-
<50ms
-
Certification:
-
CE
Quick Details
-
Number of Pole:
-
3
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Shiyu
-
Model Number:
-
W2R-100
-
Rated Current:
-
100A
-
Product name:
-
ats automatic transfer switch
-
Rated working current:
-
100A
-
Rated working voltage:
-
230V AC
-
Control voltage:
-
AC230V
-
Insulation voltage:
-
690V AC
-
Impact-resistant voltage:
-
8KV
-
Frequency:
-
50/60Hz
-
CONTACTOR CONVERSION TIME:
-
<50ms
-
OPERATION CONVERSION TIME:
-
<50ms
-
Certification:
-
CE

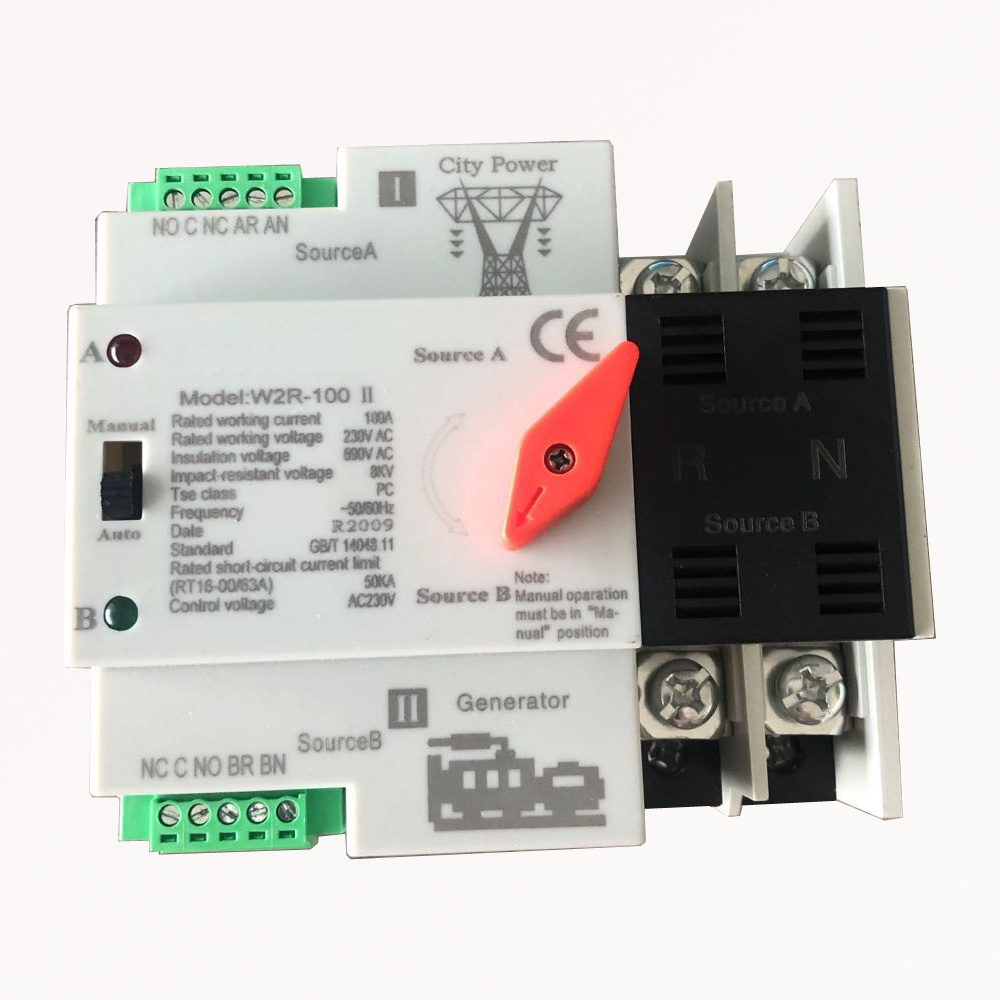

Manual-automatic dual power transfer switch
PRODUCT DESCRIPTION
The automatic transfer switch is a small household power transfer switch. Its two power inputs are respectively connected to the grid power supply and the backup power supply. When the grid power supply is abnormal, the standby power supply is automatically connected to ensure the continuity of power supply. The automatic transfer switch is suitable for emergency power supply systems with a rated voltage of 400VAC at 50Hz or 60Hz. It is widely used in various occasions where power supply cannot be sustained. The product conforms to the GB/T14048.11 standard.
BASIC TECHNICAL PARAMETERS
|
MODEL |
W2R-100 |
|
|
RATED CURRENT (le A) |
50 |
63 |
|
INSULATION VOLTAGE (Ui) |
AC 690V, 50Hz |
|
|
RATED VOLTAGE (Ue) |
AC 230V, 50Hz |
|
|
MEASURING ROD |
2P |
|
|
WEIGHT (kg) |
2.6 |
|
|
RATED SHORT CIRCUIT CURRENT |
50kA |
|
|
SHORT CIRCUIT PROTECTION DEVICE |
RT16-00-63A |
|
|
RATED IMPULSE WITHSTAND VOLTAGE |
8kV |
|
|
CONTACTOR CONVERSION TIME |
<50ms |
|
|
OPERATION CONVERSION TIME |
<50ms |
|
|
RETURN CONVERSION TIME |
<50ms |
|
|
POWER OFF TIME |
<50ms |
|
