Quick Details
-
Product name:
-

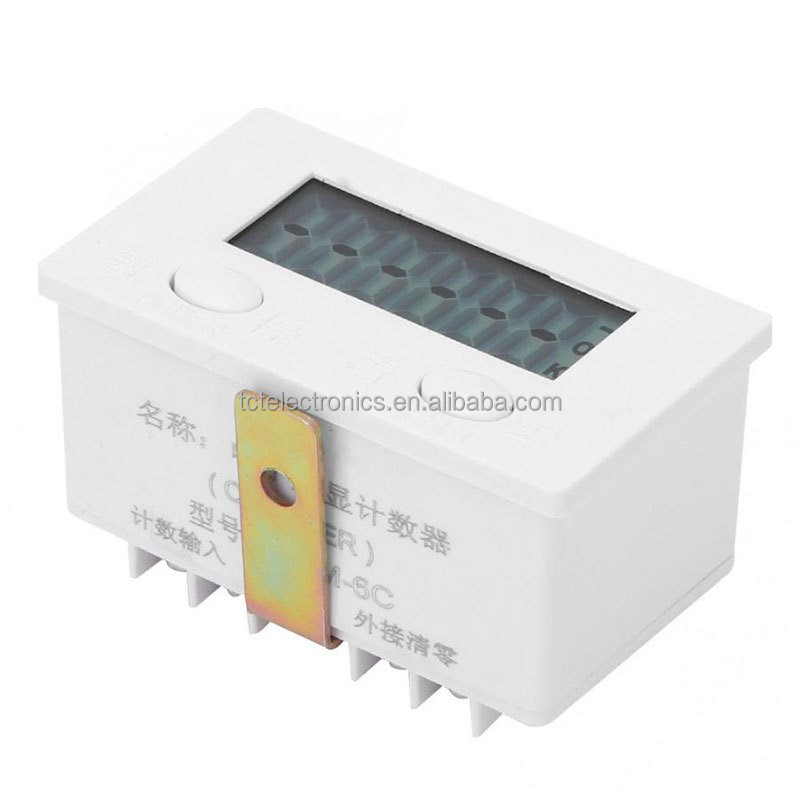

Magnetic induction digital display meter
-
Name:
-
Counter electronic digital display
-
Color:
-
White
-
Application:
-
Counting
-
Display:
-
Digits Display
-
Function:
-
Manual Tally Counter
-
Size:
-
63*37*30mm
-
Packing:
-
Box
Quick Details
-
Brand Name:
-
TCT Electroncis
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Magnetic induction digital display meter
-
Product name:
-
Magnetic induction digital display meter
-
Name:
-
Counter electronic digital display
-
Color:
-
White
-
Application:
-
Counting
-
Display:
-
Digits Display
-
Function:
-
Manual Tally Counter
-
Size:
-
63*37*30mm
-
Packing:
-
Box
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
TCT Electroncis
|
|
Model Number
|
Magnetic induction digital display meter
|
|
Product name
|
Magnetic induction digital display meter
|
|
Name
|
Counter electronic digital display
|
|
Color
|
White
|
|
Application
|
Counting
|
|
Display
|
Digits Display
|
|
Function
|
Manual Tally Counter
|
|
Size
|
63*37*30mm
|
|
Packing
|
Box
|
Packing & Delivery
The magnetically controlled induction switch and the magnet are flexibly installed at the corresponding position of the equipment according to the actual work needs, so that the equipment that needs to be counted can complete a working process, and the magnet also approaches and leaves the magnetically controlled induction switch once to complete a count. ; Note: It can only sense magnets, not other things.
When working, let the magnet follow the movement of the device and approach the magnetic induction switch at a distance of about 1 cm. Then let the magnet leave the magnetic induction switch more than 3.5 cm away. The counter will count +1. Repeat the above process and the counter will accumulate: 0, 1, 2, 3, 4, 5, 6... (Note: counting when the magnet leaves); when installing, please adjust the position and distance between the magnet and the sensor switch
1. Five-digit large-screen LCD display, low power consumption, long battery life, large and clear display
2. Press the count/pause button (PAUSE) to pause counting. Press the count/pause button again to resume counting.
3. Using magnet induction, easy and convenient installation, accurate counting
4. Counting speed: 20 times/second
5. Clear: panel/external clear terminal dual-purpose
6. Use ordinary AA batteries, no external power supply required
7. Anti-seismic design effectively ensures stable and reliable system operation
8. No mechanical wear, reliable operation and long service life
Technical Parameters:
Power supply: 1.5V -- A A AA battery Clearing method: panel/external
Counting range: 00000---99999 Clear small pulse width: 0.1 seconds
Counting frequency: 20HZ Operating environment temperature: -5─40℃
Counting small pulse width: 10mS Overall size: 64*38*38mm
Magnet sensing proximity distance: about 10 mm Opening size: 61*36 mm
Magnet induction distance: ≥ 35 mm Full set weight: about 120 grams
Configuration list: a digital counter, a magnet, a magnetic induction switch, and a bracket
Install the battery:
Please be sure to install the battery before use! !
Unscrew the 2 housing fixing screws, gently separate the back cover (be careful not to break the signal cable), and insert a AA battery (the battery needs to be purchased separately. Ordinary AA batteries can be used for more than half a year. The high performance is about 2 yuan. The battery can be used for more than a year and a half), close the back cover and screw back the 2 housing fixing screws
Instructions:
Start counting: Connect the magnetically controlled induction switch VJ12-D10K to the counting terminal, and then flexibly install the magnetically controlled induction switch and magnet at the corresponding position of the equipment according to actual work needs, allowing the equipment that needs to be counted to complete a working process. , the magnet also approaches and leaves the magnetically controlled induction switch again.
When working, let the magnet follow the movement of the device and approach the magnetic induction switch at a distance of about 1 cm, and then let the magnet leave the magnetic induction switch at a distance of more than 3.5 cm. The counter will count +1. Repeat the above process, and the counter will accumulate: 0 , 1, 2, 3, 4, 5, 6... (Note: counting when the magnet leaves). When installing, please adjust the position and distance of the magnet and sensor switch.
Pause counting: Press the Count/Pause button (PAUSE) to pause counting, and press the Count/Pause button (PAUSE) again to resume counting.
Clear: directly press the reset key (RESET) to clear the counter; or: connect an external button switch to the clear terminal (need to be purchased separately), turn on the button switch, and clear the counter;
Notes and special instructions:
1. The signal lines for counting and clearing input should be as short as possible and avoid being routed together with strong current or power wires to avoid unnecessary interference; if necessary, please use shielded wires, and the shielding layer is connected to the clearing terminal -.
2. Only contact signals can be input for counting signals and clearing signals, and other electrical signals cannot be input.
3. The sensing distance is related to the magnetic size of the magnet. Different magnets can be replaced to change the sensing distance.
4. The operating temperature of the magnet cannot exceed 70 degrees. If the temperature is too high, the magnetism will disappear and the induction will fail! !
5. When the LCD screen is blurry, please replace the battery with a new one. When not using it for a long time, please remove the battery to avoid battery deterioration and leakage that may damage the counter. After removing the battery, press the count/pause button (PAUSE) to make the screen display disappear and turn off the internal auxiliary battery of the counter.
