☆ The heating wire inside which is wound onto a ceramic core.
☆ The number of coils varies depending on the power, and provide a great uniform distribution of heat, which considerably increases the long life of the heater as well as prevents the oxidation of the heater wire even at high temperatures.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hongtai
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
0.08 KG
-
Warranty:
-
one year, one year
-
Working Temperature Range:
-
1 - 500 ℃
-
Sheath material:
-
SUS304
-
Wattage Tolerance:
-
+5%, -10%
-
Resistance tolerance:
-
+10%, -5%
-
Voltages available:
-
220v and can be customized
-
Max operating temp:
-
500 C
-
Length tolerance:
-
±1 mm
-
Diameter tolerance:
-
-0.02mm
-
Standard Cold Zone:
-
5-10mm
Quick Details
-
Type:
-
Water Heater
-
Power Source:
-
Electric
-
Voltage:
-
220v and can be customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hongtai
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
0.08 KG
-
Warranty:
-
one year, one year
-
Working Temperature Range:
-
1 - 500 ℃
-
Sheath material:
-
SUS304
-
Wattage Tolerance:
-
+5%, -10%
-
Resistance tolerance:
-
+10%, -5%
-
Voltages available:
-
220v and can be customized
-
Max operating temp:
-
500 C
-
Length tolerance:
-
±1 mm
-
Diameter tolerance:
-
-0.02mm
-
Standard Cold Zone:
-
5-10mm
Product Description

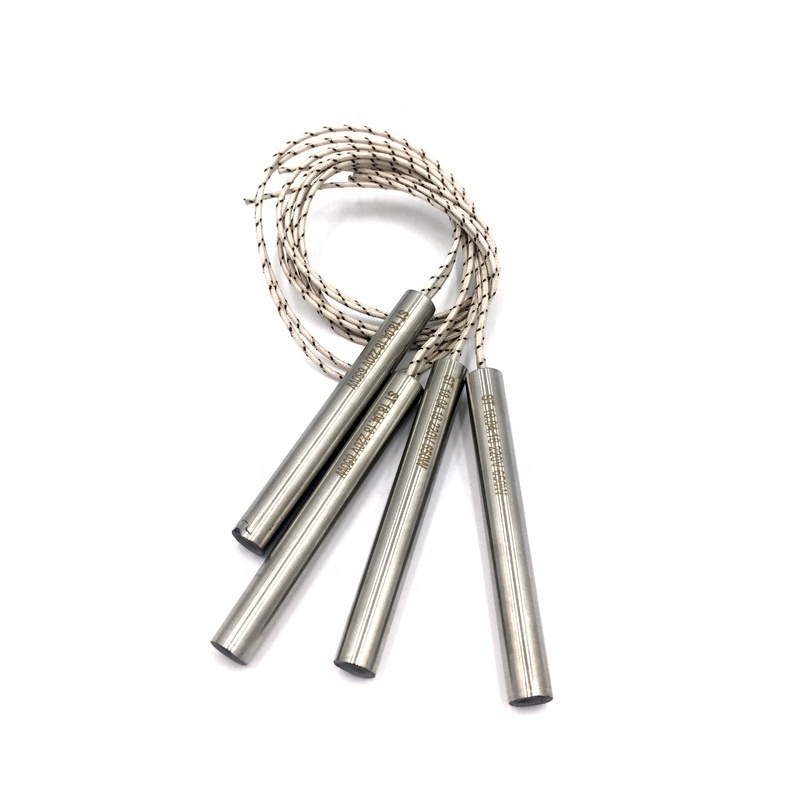

200w 3mm 220v 6*60mm electric cartridge heater heating element
are manufactured in two basic forms - high density and low density.
Cartridge heaters
are used to heat plastic injection moulds, dies, plates and so forth, whereas low-density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
|
Item Name
|
200w 3mm 220v 6*60mm electric cartridge heater heating element
|
|
|
||
|
Resistance heating wire
|
Ni-Cr or FeCr
|
|
|
||
|
Sheath
|
Stainless steel 304,321,316, Incoloy 800, Incoloy 840,
|
|
|
||
|
Insulation
|
High-purity Mgo
|
|
|
||
|
Maximum temperature
|
800 degree Celsius
|
|
|
||
|
Voltages available
|
380V,240V, 220V,110V,36V,24V or 12V
|
|
|
||
|
Power available
|
according to your requirement
|
|
|
||
|
Wattage Tolerance
|
+5%, -10%
|
|
|
||
|
Thermocouple
|
K type or J type
|
|
|
||
|
Lead wire
|
300mm length; Different type of wire is available
|
|
|
||
Structure of Cartridge Heater
Nickel-chromium resistance wire is precisely wound on high purity magnesium oxide cores and filler materials swaged inside stainless steel sheath. The compacted design gives maximum heat transfer. Nickel-chromium resistance wire gives maximum heater life. High-temperature lead wires or nickel pins are swaged into the heater. End discs are welded to prevent contamination.
Photo Shows
Characters of Cartridge Heater
Features of Cartridge Heater
☆ Long lifespan, Using high-purity magnesium mandrel and magnesium power for filling, high thermal conductivity.
☆ Using Centerless Machine to standardize Diameter, high thermal efficiency, fast heat dissipation.
☆ Advanced technology and equipment make the quality good and stable.
Cartridge Heater Order Guide
1. Type of Heater
2. Order quantity
3. Wattage and Voltage
4. Dia & length of the heater
5. The material of the pipe, fin, wire
6. Drawing(PDF format is better ) or Sample
7. Working environment and max temperature
Application
1. Injection moulding - Internal heating of nozzles
2. Hot runner systems - Heating of manifolds
3. Packaging industry - Heating of cutting bars, hot stamps
4. Laboratories - Heating of analytical equipment
5. Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
6. Telecommunications: Deicing, Enclosure Heater
7. Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
8. Food Service: Steamers, Dish Washers,
9. Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
