Quick Details
-
Model Number:
-
Pvc Pipe
-
Specification:
-
1/4"
-
Length:
-
100m
-
Thickness:
-
2mm
-
Standard:
-
ISO9001
-
Product name:
-
transparent fuel hose
-
Application:
-
spray working for field, garden and drinking
-
Feature:
-
multi-purpose
-
color:
-
as for your demand
-
Size:
-
1/4" to 3/8"
-
Working pressure:
-
5 bar
-
Bursting pressure:
-
15 bar
-
Cover:
-
pvc compound, available in any coor
-
Reinforcement:
-
high tensile stregth yarn
-
Tube:
-
pvc compound
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WANFLEX
-
Model Number:
-
Pvc Pipe
-
Specification:
-
1/4"
-
Length:
-
100m
-
Thickness:
-
2mm
-
Standard:
-
ISO9001
-
Product name:
-
transparent fuel hose
-
Application:
-
spray working for field, garden and drinking
-
Feature:
-
multi-purpose
-
color:
-
as for your demand
-
Size:
-
1/4" to 3/8"
-
Working pressure:
-
5 bar
-
Bursting pressure:
-
15 bar
-
Cover:
-
pvc compound, available in any coor
-
Reinforcement:
-
high tensile stregth yarn
-
Tube:
-
pvc compound
Factory direct WANFLEX non smell non toxic 6 mm Soft clear PVC oil tube
Specifications of PVC clear gasoline tubing
Tube: Clear PVC Material
Cover: Transparent PVC Material
Reinforcement : High tensile synthetic yarn braided
Application:
PVC fibre reinforced hose is used for conveying water,oil,gas under normal working condition in the factory, farm, ship, building and family. The hose used for foodstuffs is made of special food grade material, It can also be used for conveying milk, beverage, distilled liquor, beer, jam and other foods, It can be used as pvc shower hose too.
Temperature range: -10℃ to +65℃
Features of PVC fiber braided hose
*Flexible,light weight,anti-abrasion,anti-uv.
*Used for conveying water,oil,gas under normal working condition in *factories,farm,ship,building and family.
*Can be restored to original shape even if squashed.
*-10℃ to +65℃(Good flexible under -40℃ condition )
Diametes of PVC fiber braided hose
| Size Inch | ID MM | OD MM | WP BAR | BP BAR | Length m/Roll |
Weight g/M |
| 1/8" | 3 | 5 | 2 | 6 | 100 | 16 |
| 5/32" | 4 | 6 | 2 | 6 | 100 | 20 |
| 3/16" | 5 | 7 | 2 | 6 | 100 | 25 |
| 1/4" | 6 | 8 | 1.5 | 4.5 | 100 | 28.5 |
| 5/16" | 8 | 10 | 1.5 | 4.5 | 100 | 37 |
| 3/8" | 10 | 12 | 1.5 | 4.5 | 100 | 45 |
| 1/2" | 12 | 15 | 1.5 | 4.5 | 100 | 83 |
| 5/8" | 15 | 18 | 1 | 3 | 100 | 101 |
| 3/4" | 19 | 22 | 1 | 3 | 100 | 125 |
| 1" | 25 | 29 | 1 | 3 | 100 | 220 |
| 1-1/4" | 32 | 38 | 1 | 3 | 100 | 430 |
| 1-1/2" | 38 | 44 | 1 | 3 | 100 | 500 |
| 2" | 50 | 58 | 1 | 3 | 100 | 880 |

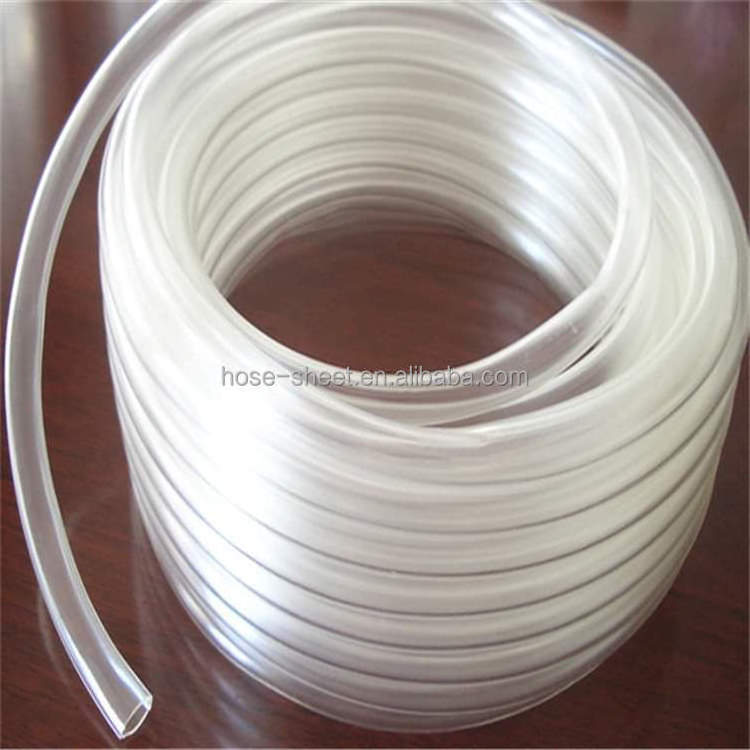

Pictures of pvc transparent hose
Clear clean pvc film
Woven bag
Carton
More Products
- 15+ years experience in rubber hose industry.
- Main products: PVC suction and discharge hose, layflat hose, garden hose etc.
- Located in Dongying,China, closed with the Qingdao port and Tianjin Port.
- Mainly Market: European, South America, Russia, UK, Middle East of Asia and Africa.
- Outstanding R&D engineers team.
- OEM available.
- Consistent and well trained team.
- Experienced sales team for different markets.
- ISO9001 approved production process.
1.What is your MOQ?
Our MOQ is usually 1000 for any kind of hose
2.What is your delievery time?
1x20' 20days , 1x40' 30 days
3.What is the shipping port?
We ship the goods via qingdao port.
4,What is your payment terms?
We accept 30% T/T in advance,70% in the period of shipment. Or L/C
5.What is the location of your company?
Our company is located in the Dongying Shandong Province,China.If you would
like to have a visit, you are much welcome.
6.What is your main products?
Our main products are all kinds of rubber hose including Hydraulic hose,air hose, welding hose, sandblast hose, suctioin and discharge rubber hose and pvc hose ,including PVC Layflat Hose,PVC Steel Wire Hose,PVC Fiber Hose,PVC Garden Hose ,PVC Transparent Hose ,PVC Suction Hose and also we have ISO9001:2008 Certification.
7.How about the samples?
We could send you the samples ,the samples are free to send to most places in China.If sent to other countries,transport fee should e paid by you.
8. Can you print our brand name?
of Course, but you should give us the authorization letter
9. What is your mainly market?
Our mainly market is : Brazil, Peru,USA.UK, Spain, Italy. South Africa, India, Russia,Ukraine, Turkey, UAE.Saudi Arabia, Korea. Indonesia. more than 20 countries and Areas
