Quick Details
-
Weight:
-
576 kg
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
7.5kW
-
Dimension(L*W*H):
-
1100*800*1360mm
-
Sheet Thickness (mm):
-
0.2-0.35mm
-
Production Capacity:
-
13m/min adjustable by inverter
-
Type:
-
Pipe Molding Machine
-
Pipe Material:
-
Carbon Steel
-
Diameter range:
-
up to 300mm
-
Speed control:
-
Inveter contorller
-
Seam type:
-
double lock
-
Forming speed:
-
1-20m/min
-
Forming length:
-
up to 12 meter
-
Cutting system:
-
Manual cutting
-
After Warranty Service:
-
Video technical support
Quick Details
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
BOBO
-
Condition:
-
New, New
-
Weight:
-
576 kg
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
7.5kW
-
Dimension(L*W*H):
-
1100*800*1360mm
-
Sheet Thickness (mm):
-
0.2-0.35mm
-
Production Capacity:
-
13m/min adjustable by inverter
-
Type:
-
Pipe Molding Machine
-
Pipe Material:
-
Carbon Steel
-
Diameter range:
-
up to 300mm
-
Speed control:
-
Inveter contorller
-
Seam type:
-
double lock
-
Forming speed:
-
1-20m/min
-
Forming length:
-
up to 12 meter
-
Cutting system:
-
Manual cutting
-
After Warranty Service:
-
Video technical support
Product Description

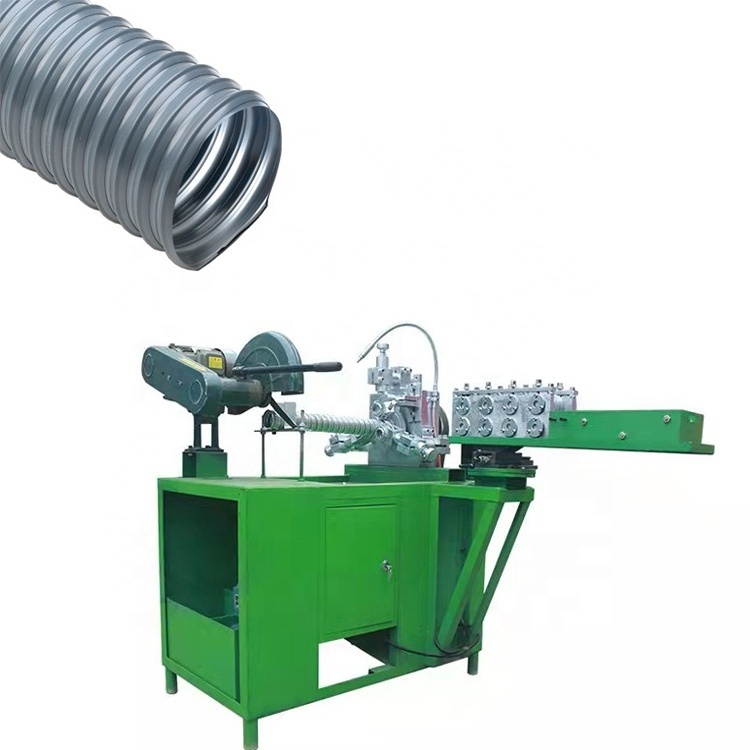

Post-tension Metal Cold Rolled Steel Strip Corrugated Pipe Duct Making Machine
The BHP-135 pipe making machine is an equipment for producing prestressed concrete reserved channel metal corrugated pipes. It uses galvanized or cold-rolled steel strips (black belts) to roll them into double corrugated shapes and then undercut them to form corrugated pipes. It can produce Φ35 Single and double corrugated metal bellows of various diameters within ~Φ135. The corrugated pipes produced by this machine are mainly used for prestressed holes in post-tensioned prestressed concrete bridges, large buildings and other projects. This machine has small size, high efficiency, simple operation and maintenance, and is suitable for centralized use on construction sites or factories. The quality of the finished pipe meets the requirements of JG225-2007 "Metal Spiral Pipes for Prestressed Concrete", and has good sealing performance and is easy to construct. The motor adopts infinitely variable speed and has a high tube discharge rate. At the same time, we produce matching flat tube machines for flat anchors.
Feature of Corrugated Spiral Post-tension Duct Making Machine
* Low power consumption
* Wear well with stable performance
* Saving material, high productivity.
* Low power consumption
* Wear well with stable performance
* Saving material, high productivity.
Our Advantages
One-click Start & Easy Operation
Adjustable Speed & Fast Cutting
Gear Transmission & Stable Transmission
Replaceable Mold & Wide Application Range
Product Details
Product Paramenters
|
1
|
Diameter
|
35-135mm
|
|
2
|
Thickness
|
0.2-0.35mm
|
|
3
|
Strip width
|
36mm
|
|
4
|
Strip feeding speed
|
1-30m/min, adjustable
|
|
5
|
Suitable material
|
Galvanized steel strip
|
|
6
|
Main motor power
|
7.5KW
|
|
7
|
Cutting motor power
|
4KW
|
|
8
|
Lubricnt motor power
|
0.125KW
|
|
9
|
Dimension
|
1420x 1800 x 1400mm
|
|
10
|
Weight
|
about 600KG
|
Packing and Shipping
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
