Quick Details
-
RF Output:
-
DVB-C/DVB-T/ISDB-T/ATSC RF out
-
Advertisement:
-
OSD/LOGO/QR Code/Caption Insertion
-
Support CC:
-
Closed Caption
-
Display:
-
LED Screen for easy management
-
Resolution:
-
Full HD
-
Bitrate:
-
1-15Mbps
-
Application Fields:
-
Home Entertainment, Hotels, Shops, Restaurants
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Product name:
-
HD Encoder Modulator with QAM, DVB-T2, ISDB-T, ATSC RF output
-
Input Signals:
-
H.265, H.264 Video with Frame B
-
RF Output:
-
DVB-C/DVB-T/ISDB-T/ATSC RF out
-
Advertisement:
-
OSD/LOGO/QR Code/Caption Insertion
-
Support CC:
-
Closed Caption
-
Display:
-
LED Screen for easy management
-
Resolution:
-
Full HD
-
Bitrate:
-
1-15Mbps
-
Application Fields:
-
Home Entertainment, Hotels, Shops, Restaurants
All ine one HD Encoder Modulator with QAM, DVB-T2, ISDB-T, ATSC RF output
Outline
HD encoder & modulator is designed based on consumer electronics which allow HDMI signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, etc.
It is an all-in-one device integrating encoding and modulating to convert audio/video signals into DVB-C/DVB-T/ISDB-T/ATSC RF out.
The signals source could be from STB, satellite receiver, closed-circuit television cameras and etc. Its output signal is to be received by TVs or STBs etc.
System Connection

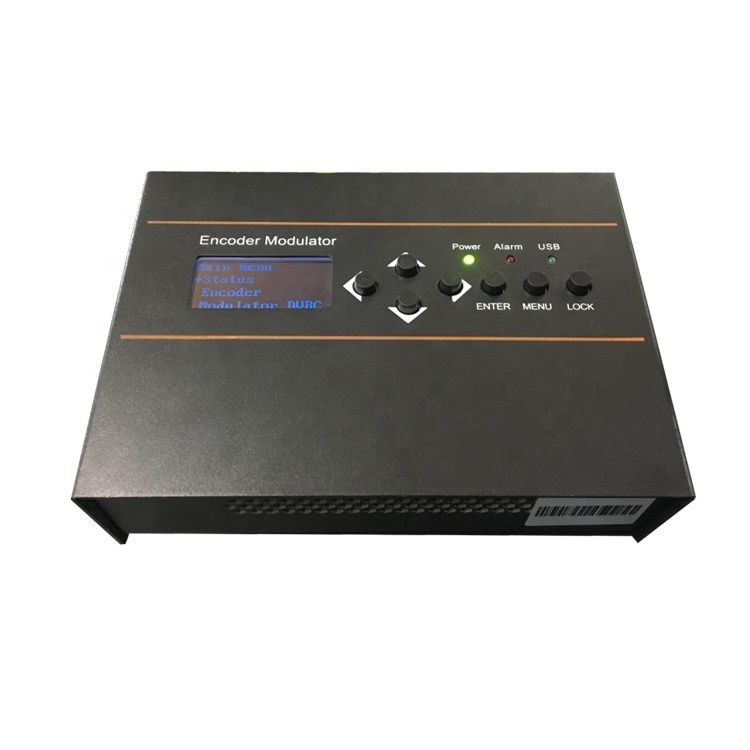

Appearance and Description
Technical Specs
|
HDMI Encoding Section |
||
|
Video |
Encoding |
HEVC/ H.265 , MPEG 4 AVC/H.264 |
|
Interface |
HDMI*1 |
|
|
Resolution |
1920*1080_60P, 1920*1080_50P; 1920*1080_59.94P, 1920*1080_59.94i; 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_59.94 1280*720_50P |
|
|
Chroma |
4:2:0 |
|
|
Bitrate |
1Mbps~15Mbps |
|
|
Rate Control |
CBR/VBR |
|
|
GOP Structure |
IBBBP, IBBP, IP |
|
|
Audio |
Encoding Format |
MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2; AC3 Passthrough |
|
Sample rate |
48KHz |
|
|
Bit-rate |
48~384Kbps (MPEG-1 Layer 2& LC-AAC) 24~128 Kbps (HE-AAC) 18~56 Kbps (HE-AAC V2)
|
|
|
IP output |
||||
|
IP out over UDP (Unicast/multicast), RTMP, RTP/RTSP, (RJ45, 100/1000M self-adaption) |
||||
|
DVB-C Modulator Section |
||||
|
Standard |
J.83A (DVB-C), J.83B |
|||
|
MER |
≥35dB |
|||
|
RF frequency |
100-900MHz, 1KHz step |
|||
|
RF output level |
-20~ -5dBm, 1dB step |
|||
|
Symbol rate |
5.000~7.000Msps adjustable |
|||
|
|
J.83A |
J.83B |
||
|
Constellation |
16/32/64/128/ 256 QAM |
64/ 256 QAM |
||
|
Bandwidth |
8M |
6M |
||
|
DVB-T Modulator Section (Optional) |
||||
|
Standard |
DVB-T COFDM |
|||
|
Bandwidth |
6M, 7M, 8M |
|||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||
|
Transmission Mode: |
2K, 8K |
|||
|
MER |
≥35dB |
|||
|
RF frequency |
100-900MHz, 1KHz step |
|||
|
RF output level |
-63~ -16dBm, 1dB step |
|||
|
ISDB-T Modulator Section (Optional) |
||||
|
Standard |
ARIB STD-B31 |
|||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||
|
Transmission Mode |
2K, 4K, 8K |
|||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||
|
RF frequency |
100~900MHz, 1KHz step |
|||
|
RF output level |
-63~ -16dBm, 1dB step |
|||
|
ATSC Modulator Section (Optional) |
||||
|
Standard |
ATSC A/53 |
|||
|
Constellation |
8 VSB |
|||
|
RF output level |
-63~-16dBm (44~91 dBµV), 1dB step |
|||
|
MER |
≥35dB |
|||
|
RF frequency |
100~900MHz, 1KHz step |
|||
|
RF output level |
-63~ -16dBm, 1dB step |
|||
|
System |
||||
|
Management |
Web-GUI, LED+Keyboard |
|||
|
Language |
English |
|||
|
Upgrade |
Web update |
|||
|
General |
||||
|
Power supply |
DC 12V |
|||
|
Dimensions |
160*120*52mm |
|||
|
Weight |
< 1kg |
|||
