Quick Details
-
Voltage:
-
220V/380V or Customized is available
-
Dimension(L*W*H):
-
1970*1670*1750mm
-
Weight:
-
1300 KG
-
Product name:
-
Stlb20/30/60/80/100 Gold Centrifugal Knelson Concentrator
-
Capacity:
-
10-40Tph
-
Max feeding size:
-
0-6mm
-
Feeding density (%):
-
0-50%
-
Color:
-
As you request
-
Application:
-
gold mining industry
-
MOQ:
-
1 Set
-
Price:
-
Negotible
-
Optional Models:
-
STLB19/20/30/60/80/100
-
Main products:
-
Jaw crusher,Vibrating Screen,Ball mill,Spiral chute,Shaking table etc
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Hengchang
-
Voltage:
-
220V/380V or Customized is available
-
Dimension(L*W*H):
-
1970*1670*1750mm
-
Weight:
-
1300 KG
-
Product name:
-
Stlb20/30/60/80/100 Gold Centrifugal Knelson Concentrator
-
Capacity:
-
10-40Tph
-
Max feeding size:
-
0-6mm
-
Feeding density (%):
-
0-50%
-
Color:
-
As you request
-
Application:
-
gold mining industry
-
MOQ:
-
1 Set
-
Price:
-
Negotible
-
Optional Models:
-
STLB19/20/30/60/80/100
-
Main products:
-
Jaw crusher,Vibrating Screen,Ball mill,Spiral chute,Shaking table etc
Full Automatic Gravity Separation Machine Alluvial Gold Extractor Stlb20/30/60/80/100 Gold Centrifugal Knelson Concentrator
Hengchang machinery gold centrifugal concentrator can be used for many minerals separating, such as gold, copper, tungsten, tin, tantalum, coltan, chrome, zinc ore and some other minerals. When you find us, you find one best mining machinery manufacturer.
Centrifugal Gold Concentrator
Introduction:
Gold centrifugal concentrator also called knelson concentrator is a new type of gravity concentration equipment, used in the gold mining industry. It is used for the recovery of fine particles of free gold, meaning gold that does not require gold cyanidation for recovery.
Working Principle:
The hollow shaft of gold centrifugal concentrator can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailings launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
Widely Applications:

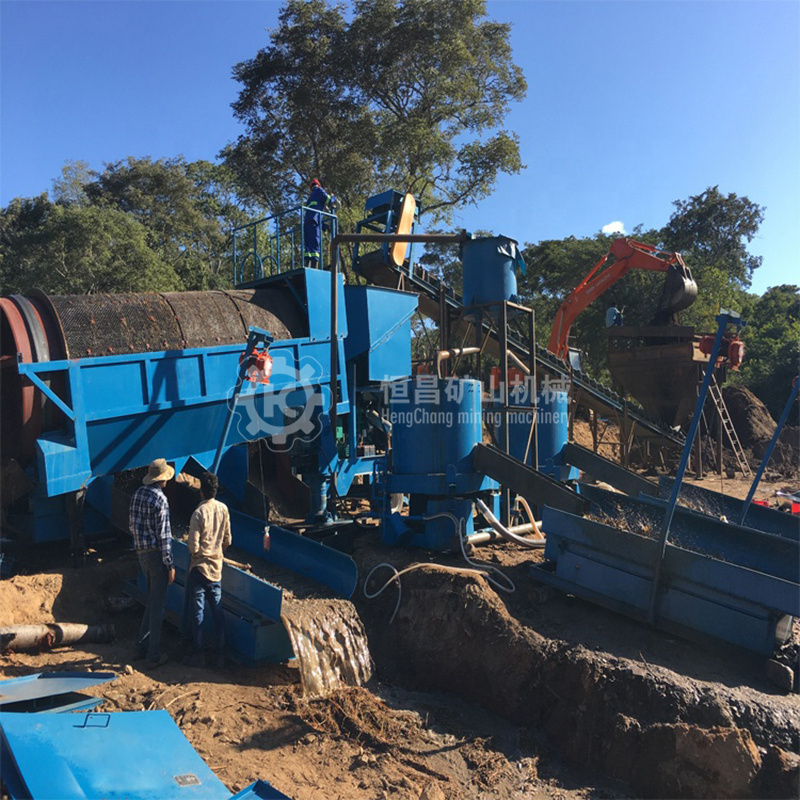

It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
Gold centrifugal concentrator also called knelson concentrator is a new type of gravity concentration equipment, used in the gold mining industry. It is used for the recovery of fine particles of free gold, meaning gold that does not require gold cyanidation for recovery.
Working Principle:
The hollow shaft of gold centrifugal concentrator can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailings launder. After one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
Widely Applications:
It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
|
Model
|
STL-30
|
STL-60
|
STL-80
|
STL-100
|
|
Capacity (t/h)
|
2-3
|
10-20
|
35-45
|
60-120
|
|
Feeding size (mm)
|
0-4
|
0-6
|
0-6
|
0-6
|
|
Feeding density (%)
|
0-50%
|
0-50%
|
0-50%
|
0-50%
|
|
Backwash water (t/h)
|
4-6
|
10-15
|
17-25
|
40-60
|
|
Output(kg/time)
|
10-20
|
30-40
|
60-70
|
70-80
|
|
Motor power(kw)
|
1.5
|
5.5
|
11
|
18.5
|
|
Revolution ®
|
600
|
460
|
400
|
360
|
|
Pressure water(Mpa)
|
0.12
|
0.25
|
0.35
|
0.4
|
|
Dimension(mm)
|
1180x1140x1250
|
1970x1670x1750
|
2300x1800x2200
|
2500x2000x2400
|
|
Weight (kg)
|
400
|
1300
|
2000
|
2500
|
1.What is your machine used for ?
Our Centrifugal Concentrator is used for Separation the Materials Such as: Gold, Mining, ilmenite, chromite, pyrite, zircon,
rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore etc.
rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore etc.
2.Are you factory or trade company?
Yes,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
4.How about your Service ?
All of our machines with one year warranty and Wholelife Technology support to make sure your machine work well.
5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
quantity.
6.What about the payment method?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
