Quick Details
-
Voltage:
-
110V-220V
-
Power:
-
50W
-
Dimension(L*W*H):
-
it depends
-
Weight:
-
12kg
-
Certification:
-
CE
-
Equipment Name:
-
Test System Powder Coating Manual Spray Machine Cup Gun
-
Application:
-
Decorative Coating
-
Coating color:
-
Multi Color
-
Advantage:
-
faster color changes
-
Usage:
-
Manual Powder Coating
-
Control System:
-
Manual Control
-
Power supply:
-
220V/110V
-
Spraying Guns:
-
kf-08 powder coating gun
-
Technology:
-
Electrostatic Powder Spraying Technology
-
Function:
-
Metal Surface Powder Coating
Quick Details
-
Machine Type:
-
Powder Coating Manual Spray Machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KF-900T
-
Voltage:
-
110V-220V
-
Power:
-
50W
-
Dimension(L*W*H):
-
it depends
-
Weight:
-
12kg
-
Certification:
-
CE
-
Equipment Name:
-
Test System Powder Coating Manual Spray Machine Cup Gun
-
Application:
-
Decorative Coating
-
Coating color:
-
Multi Color
-
Advantage:
-
faster color changes
-
Usage:
-
Manual Powder Coating
-
Control System:
-
Manual Control
-
Power supply:
-
220V/110V
-
Spraying Guns:
-
kf-08 powder coating gun
-
Technology:
-
Electrostatic Powder Spraying Technology
-
Function:
-
Metal Surface Powder Coating
Product Description

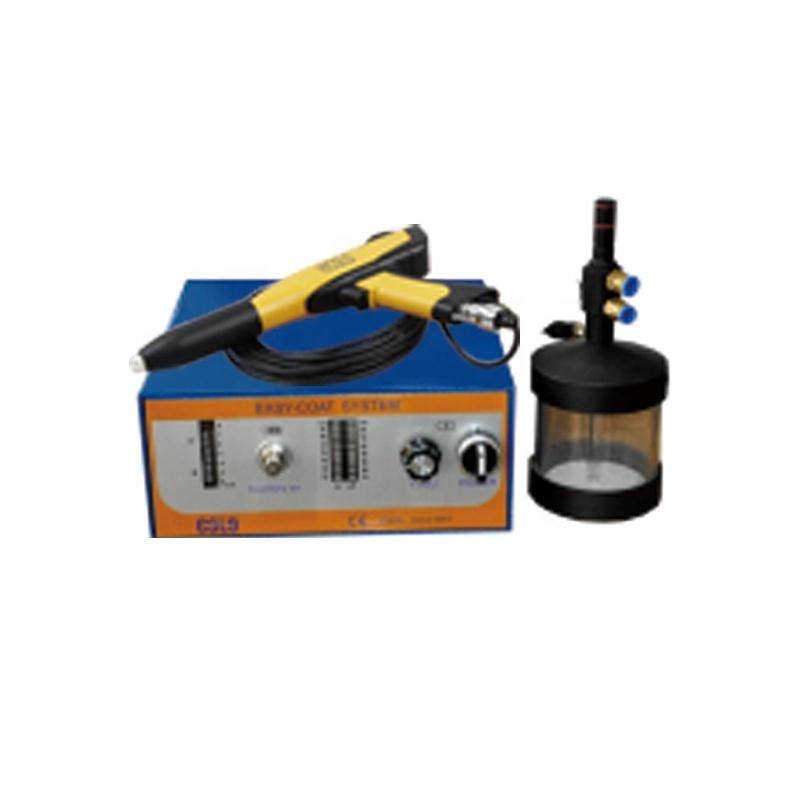

Test System Powder Coating Manual Spray Machine Cup Gun
This cup spray gun, suiable for lab use, such as powder coating factory for testing, small part powder coating
1) 0-100 Digital adjustable KV, fully adjustable amperage
2) Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
3) Ergonomic 100kv powerful spray gun, comes with Full Array of Nozzle Assortment.
4) Field Tested and Proven to operate in the toughest environments.
Details Images
What’s included in the powder coating spray gun packages?
Complete Powder Coating System with gun, controller, cup, hoses, cables, and connectors.
Assembly and Operation Manual and Video in English
Assembly and Operation Manual and Video in English
Product Paramenters
|
Electrical data
|
|
|
|
Power range
|
220V/110V
|
|
|
Frequency
|
50HZ /60HZ
|
|
|
Temperature range in use
|
-10 ℃+50 ℃
|
|
|
Powder Gun
|
|
|
|
Gun weight
|
500G
|
|
|
Rated output voltage
|
24VDC
|
|
|
Input voltage
|
- 200kv
|
|
|
Maximum output current
|
180Ua(max)
|
|
|
Maximum output voltage
|
0-100KV ( adjustable)
|
|
|
Maximum powder injection
|
600g/min
|
|
|
Polarity
|
negative (-)
|
|
|
Pneumatic data
|
|
|
|
Maximum input-air pressure
|
10kg/cm
|
|
|
Optimum input-air pressure
|
6kg/cm
|
|
|
Minimum input-air pressure
|
4kg/cm
|
|
|
Maximum oil vapor content of compressed air
|
0.1ppm
|
|
|
Maximum compressed-air consumption
|
13.2 m3/h
|
|
Warranty
Every powder coating system is by a full 2 year factory warranty. Should your system ever fail to operate, just call us, will resolve and make powder coating machine running fast.
