Quick Details
-
Brand Name:
-
MERRILL
-
Model Number:
-
4SD(220V)
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.5-7.5hp
-
Cable Length:
-
30m
-
Outlet Size:
-
25mm
-
Power:
-
0.37-5.5kw
-
Material:
-
Stainless Steel
-
Product name:
-
pump machine pompe a eau
-
Motor:
-
100% Copper Wire
-
Warranty:
-
1 Years
-
Type:
-
deep water pump
-
Item:
-
Water Irrigation Pump
-
Head:
-
60m
-
Solar panel:
-
1.1kw
-
Certificate:
-
CE Certificate
Quick Details
-
Application:
-
Irrigation and Agriculture
-
Pressure:
-
/
-
Voltage:
-
220v, 220V
-
Brand Name:
-
MERRILL
-
Model Number:
-
4SD(220V)
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.5-7.5hp
-
Cable Length:
-
30m
-
Outlet Size:
-
25mm
-
Power:
-
0.37-5.5kw
-
Material:
-
Stainless Steel
-
Product name:
-
pump machine pompe a eau
-
Motor:
-
100% Copper Wire
-
Warranty:
-
1 Years
-
Type:
-
deep water pump
-
Item:
-
Water Irrigation Pump
-
Head:
-
60m
-
Solar panel:
-
1.1kw
-
Certificate:
-
CE Certificate

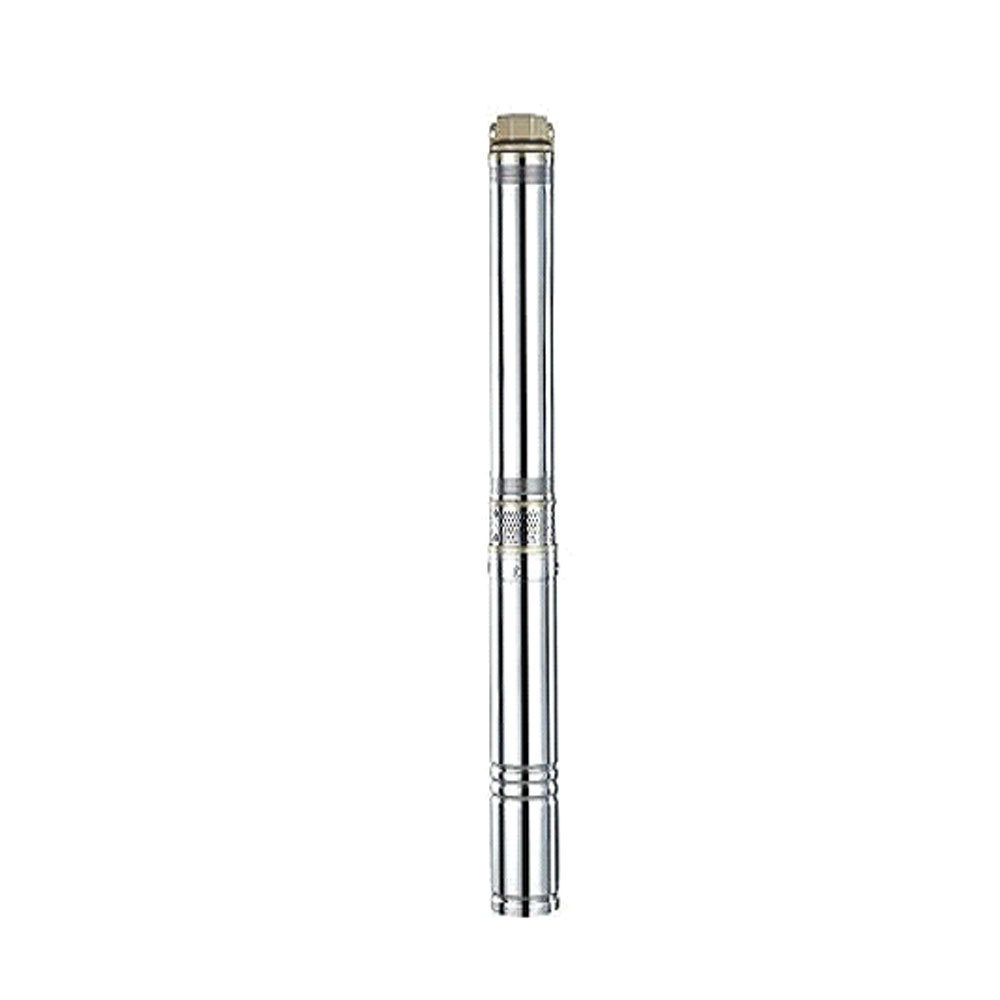

| Deep well submersible irrigation water pump machine pompe a eau |
| Model |
Power
(kw) |
Max Flow
(m³/h) |
Max Head
(m) |
Outlet Diameter
(mm) |
Cable | Core wire | Impeller | Pump housing | Voltage(HZ) |
DimensionL*W*H
(cm) |
|
| KW | HP | ||||||||||
| 4SD3/7 | 0.37 | 1/2 | 4 | 48 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | 75*12*13 |
| 4SD3/9 | 0.55 | 3/4 | 4 | 66 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | 88*12*13 |
| 4SD3/12 | 0.75 | 1 | 4 | 85 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | 93*13*15 |
| 4SD3/17 | 1.1 | 1.5 | 4 | 127 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | |
| 4SD3/22 | 1.5 | 2 | 4 | 148 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | |
| 4SD3/26 | 2.2 | 3 | 4 | 182 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | |
| 4SD3/30 | 2.2 | 3 | 4 | 233 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | |
| 4SD3/36 | 3 | 4 | 4 | 252 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | |
| 4SD3/42 | 4 | 5.5 | 4 | 294 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | |
| 4SD3/48 | 4 | 5.5 | 4 | 336 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | |
| 4SD3/54 | 5.5 | 7.5 | 4 | 378 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | |
| 4SD3/60 | 5.5 | 7.5 | 4 | 420 | 25 | 30m | copper | plastic | AISI 201 SS | 220(50) | |
Q1.What is your product range ?
We are professional in producing several kinds of machinery, from water pumps to agricultural machinery, such as corn(wheat flour)mill machine, corn sheller, fruit/grape juicing machine, car washing machine and etc.
Q2.Are you a manufactuer or trading company?
We are a manufactuer company but we do trading at the same time.
Q3.Can the machine be shipped by air if I need it urgently?
YES. We can deliver it by air. But I need to remind you that the flight freight is very expensive.
Q4.Can I get a sample ?
YES, we'd like to send you a sample.
Q5.The specification requirements of our machines are different from what you give out, can you customize them based on my data?
SURE. Please send me your detailed specification requirements then we will offer the suitable machine for quotation.
