✔ WYJ-90P log grapple Weight: 350kg
✔
Suitable excavator models: 4~9 tons
✔
Working pressure: 16~21MPa
✔
Rotary drive type: vertical straight tooth, hydraulic brake log grapple
✔
Clamp drive type: Bunching type, single cylinder and double connecting bar
✔
Suitable for large-scale port timber handling construction, eucalyptus handling, bamboo handling, sugarcane handling and other construction occasions, The holding structure will highly improve the operation efficiency.
✔
Other name: grabs, excavator grapple, excavator grabs, log grab, excavator attachment, log grab, grapple,skid steer log grapple
✔

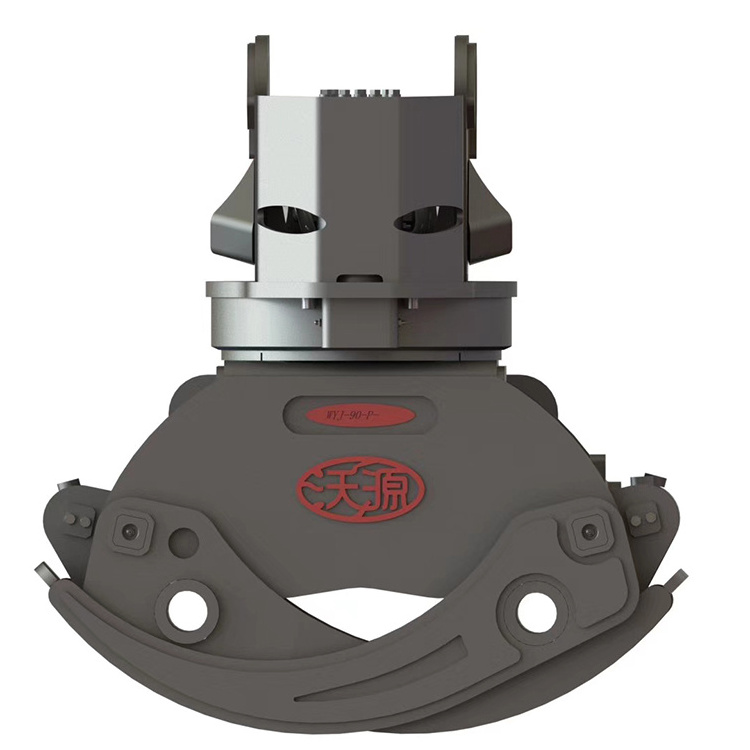

Timber grab Xuvol 90P log grab with 360 rotation grapple with hydraulic rotation mini excavator log grapple
- Product Details
- {{item.text}}
Quick Details
-
Condition:
-
NEW
-
Weight:
-
350
-
Suitable Excavator(ton):
-
6 - 9 Ton
-
Max Jaw Opening:
-
1550±20
-
Product name:
-
ton excavator grabs with 360 rotation 3 point log grapple
-
Application:
-
Excavator Attachment
-
Model grapple:
-
WYJ-P-90
-
Grapple Type:
-
single cylinder/bunching grapple/doubble link
-
Steel material grapple:
-
Q355B
-
Height when clamped(mm):
-
890
-
Height when opened(mm):
-
1150
-
Width of inner/outer clamp(mm):
-
401/441
-
Rotation method grapple:
-
External meshing vertical rotation
-
Motor type:
-
Cycloid motor
Quick Details
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Xuvol
-
Model Number:
-
WYJ-90P log grapple
-
Condition:
-
NEW
-
Weight:
-
350
-
Suitable Excavator(ton):
-
6 - 9 Ton
-
Max Jaw Opening:
-
1550±20
-
Product name:
-
ton excavator grabs with 360 rotation 3 point log grapple
-
Application:
-
Excavator Attachment
-
Model grapple:
-
WYJ-P-90
-
Grapple Type:
-
single cylinder/bunching grapple/doubble link
-
Steel material grapple:
-
Q355B
-
Height when clamped(mm):
-
890
-
Height when opened(mm):
-
1150
-
Width of inner/outer clamp(mm):
-
401/441
-
Rotation method grapple:
-
External meshing vertical rotation
-
Motor type:
-
Cycloid motor
excavator rotating 1100lbs lifting grapple wood log grapple log grab with 360 degree rotary
Advantages of the
Xuvol 90P log
grapple:
1.
Using special steel, Xuvol WYJ-90P log grapple has the advantages of light weight, good strength, and abrasion resistance; Excavator grapple Xuvol WYJ-P-90 grapple use for 4-9 ton excavator with 360 rotation log grapple
2. The grapple control method adopts an electronic control handle operating system, equipped with imported solenoid valves, which can control the rotation speed
3. The WYJ-90P can rotate 360 degrees clockwise and counter clockwise, and the operation is smooth;
4. It can be stalled on 4-9t excavator, use for loading and unloading wood, sugarcane and other materials. Greatly improving work efficiency and greatly saving labor costs.
Excavator grapple Xuvol 90P log grapple use for 4 to 9 ton excavator grabs with 360 rotation grapple
2. The grapple control method adopts an electronic control handle operating system, equipped with imported solenoid valves, which can control the rotation speed
3. The WYJ-90P can rotate 360 degrees clockwise and counter clockwise, and the operation is smooth;
4. It can be stalled on 4-9t excavator, use for loading and unloading wood, sugarcane and other materials. Greatly improving work efficiency and greatly saving labor costs.
Excavator grapple Xuvol 90P log grapple use for 4 to 9 ton excavator grabs with 360 rotation grapple
|
Other Brand Grapple
|
Xuvol Grapple
|
|
Proportional control is not available, and the action has a big damage to the object
|
Electro-hydraulic proportional control can be control to realize the integration of electro-hydraulic, soft and flexible action
|
|
Rely on manual control the pressure of the grapple, Poor Personal skills will easily cause damage to the gripping objects
|
It can be clamped automatically, and the clamping time (0.1~1 second) and clamping pressure are adjustable, which can effectively
protect the clamped object |
|
Unable to weigh
|
It can weigh the gripped objects and store the data
|
|
Unable to send data
|
Data could be sent to the operator timely, ensure manage the material in time
|
Xuvol 90P
log grapple feature:
|
Xuvol Grapple Specifications
|
|
WYJ-90P
|
|
|
Whole Grapple
|
Grapple Type
|
single cylinder/bunching grapple/doubble link
|
|
|
|
Steel material
|
Q355B
|
|
|
|
Optional electric control
|
√
|
|
|
|
Height when clamped(mm)
|
890
|
|
|
|
Height when opened(mm)
|
1150
|
|
|
|
Width of inner/outer clamp(mm)
log grapple
|
401/411
|
|
|
|
Open Width Max(mm)
|
1550±20
|
|
|
|
Minimum holding circle(mm)
|
≦φ70
|
|
|
|
Maximum holding circle(mm)
|
φ500
|
|
|
|
Weight (excluding rotation)kg
|
350
|
|
|
|
Suitable Excavator(Ton)
|
4~9
|
|
|
|
Rotation method(grapple)
|
External meshing vertical rotation
|
|
|
|
Module / raceway diameter
|
M5/224
|
|
|
|
Motor type
|
Cycloid motor
|
|
|
|
Pressure(Mpa)
|
16
|
|
|
|
Rod diameter/bore size
|
45/80
|
|
|
|
Pressure(Mpa)
|
21
|
|
Grapple Package with stretch film and Wooden box
The standard package is wrap with stretch film and tied on wooden pallets. We will do special package by your requirements if you need.
Widely used on 90% of global excavator brands, exported to Japan, Vietnam, Indonesia, England and other countries.
X
uvol is the leading manufacturer of grapples in China. Over 1,000 sets are produced and sold annually, and the market share is about 40%!
Excavator grapple Xuvol 90P log grapple use for 4 to 9 ton excavator grabs with 360 rotation grapple
