Quick Details
-
Voltage:
-
110V/220V/380V
-
Power:
-
3KW/3.7W
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1480*800*980mm/1940*980*1100mm
-
Product name:
-

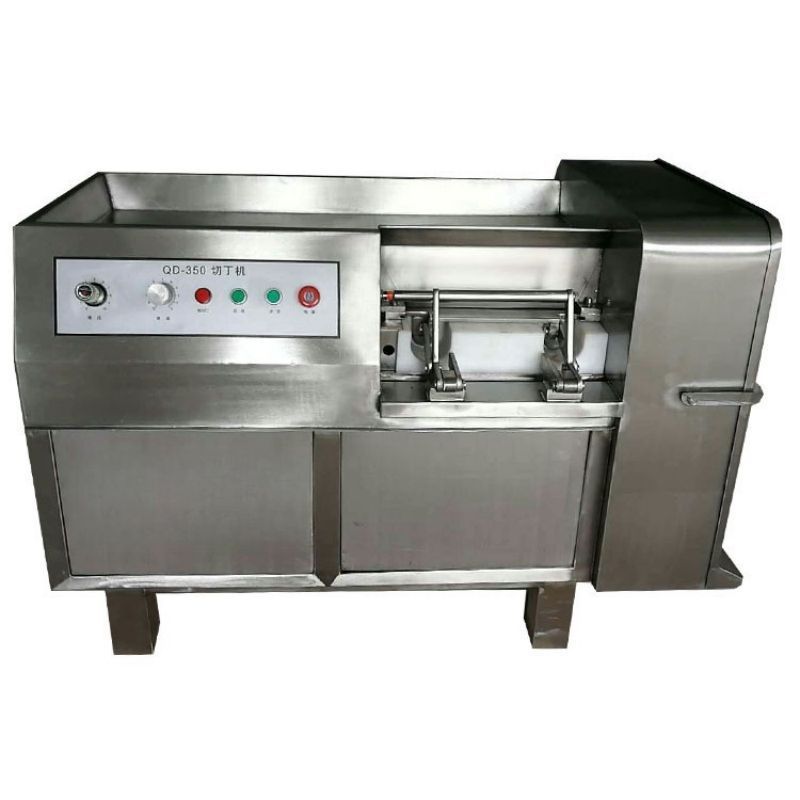

Frozen meat dicing machine
-
Capacity:
-
500-600kg/h,700-900kg/h
-
Cutting groove size:
-
84x84x350mm
-
Material:
-
SUS304 Stainless Steel
-
Power source:
-
Electric
-
Certification:
-
ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL
-
Cutting grid size:
-
4, 5, 6, 7, 8, 9, 11, 13, 16, 20, 27 mm
-
OEM/ODM Service:
-
Acceptable
-
Color:
-
Silver
-
Function:
-
Dicing Slicing Frozen Meat
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHENGRUO
-
Voltage:
-
110V/220V/380V
-
Power:
-
3KW/3.7W
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1480*800*980mm/1940*980*1100mm
-
Product name:
-
Frozen meat dicing machine
-
Capacity:
-
500-600kg/h,700-900kg/h
-
Cutting groove size:
-
84x84x350mm
-
Material:
-
SUS304 Stainless Steel
-
Power source:
-
Electric
-
Certification:
-
ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL
-
Cutting grid size:
-
4, 5, 6, 7, 8, 9, 11, 13, 16, 20, 27 mm
-
OEM/ODM Service:
-
Acceptable
-
Color:
-
Silver
-
Function:
-
Dicing Slicing Frozen Meat
Product descriptions from the supplier
Introduction
Meet Cutting machine is an important equipment in the production process of meat products. Cut meat, fat and other main raw materials into diced meat required by users, and adjust the size of the knife grid to cut shredded meat, meat slices, and meat diced. The size of the diced meat is determined by the number of blades in the knife grid. The cutting machine is mainly composed of a frame, a reducer, a motor, a tool rest, an eccentric shaft assembly, a main cutter assembly, and a hydraulic system. The main motor drives the main shaft to rotate through the reducer, the fork on the main shaft drives the upper knife grid, the lower knife grid and the left and right reciprocating motion, the material pushed out by the push block is cut into strips, and the main cutter cuts the meat strips into diced meat.
Application
It is used for dicing of poultry products, various frozen meat trays and meat products. It is formed at one time. The cut products have clear edges and corners, regular shapes and consistent sizes.
This machine is often used in meat processing factories, snack food processing enterprises, Chinese restaurants, central kitchens, western restaurants, etc.
Application
It is used for dicing of poultry products, various frozen meat trays and meat products. It is formed at one time. The cut products have clear edges and corners, regular shapes and consistent sizes.
This machine is often used in meat processing factories, snack food processing enterprises, Chinese restaurants, central kitchens, western restaurants, etc.
Features
1. The safety protection performance is good, and the rotating cutter stops working immediately after the front door is opened.
2. All kinds of knives are easy to disassemble, easy to install, easy to clean and replace the knife grid.
3. The side pressure mechanism can increase the amount of meat cut at one time, and help the pre-pressure to reach the set value faster, improving production efficiency.
4. The design of the fork mechanism improves the cutting quality of the product, reduces the noise, and reduces the mechanical failure rate.
5. Adjust the pre-pressure knob to ensure consistent product throughout the cutting process.
6. Meat material can be fed in steps to minimize product squeezing during cuttingdjust the pre-pressure knob to ensure consistent product throughout the cutting process.
7. Changing the number of blades in the knife grid can cut meat of different sizes, which is easy to combin.
1. The safety protection performance is good, and the rotating cutter stops working immediately after the front door is opened.
2. All kinds of knives are easy to disassemble, easy to install, easy to clean and replace the knife grid.
3. The side pressure mechanism can increase the amount of meat cut at one time, and help the pre-pressure to reach the set value faster, improving production efficiency.
4. The design of the fork mechanism improves the cutting quality of the product, reduces the noise, and reduces the mechanical failure rate.
5. Adjust the pre-pressure knob to ensure consistent product throughout the cutting process.
6. Meat material can be fed in steps to minimize product squeezing during cuttingdjust the pre-pressure knob to ensure consistent product throughout the cutting process.
7. Changing the number of blades in the knife grid can cut meat of different sizes, which is easy to combin.
Paramater
|
Model
|
Output
kg
|
Powder
kw
|
Oil pump
motor power
|
Main engine
motor power
|
Longest
cutting length
|
Cut grid size
(mm)
(Can be customized)
|
Cutting
groove size
mm
|
weight
kg
|
Size
mm
|
|||||||||
|
350
|
500-600
|
3.2
|
1.5kw
|
1.7kw
|
300mm
|
5/6/7/8/9/11/13/16/20/27
|
84*84*350
|
500
|
1480*800*980
|
|||||||||
|
550
|
700-900
|
3.7
|
1.5kw
|
2.2kw
|
550mm
|
5/6/7/8/9/11/13/16/19
|
120*120*550
|
700
|
1940*980*1100
|
|||||||||
|
Note: Suitable for cutting boneless meat, not suitable for too hard bones, easy to damage the blade
|
|
|
|
|
|
|
|
|
|
|||||||||
Product structure
Detail display
Processing effect show
FAQ
Q1
Can the voltage of the machine be adapted ?
A: We can adapt the machine to your needs to match your local voltage.
Q2 Can you ship the machine to my address?
A:Yes, we support shipping and air transportation, as well as door-to-door service.
Q3 Can I go to China and visit your factory?
A: Sure, welcome to our factory.
Q4 Do you have English Manual for each machinery?
A: Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
Q5 What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.
A: We can adapt the machine to your needs to match your local voltage.
Q2 Can you ship the machine to my address?
A:Yes, we support shipping and air transportation, as well as door-to-door service.
Q3 Can I go to China and visit your factory?
A: Sure, welcome to our factory.
Q4 Do you have English Manual for each machinery?
A: Yes. The instruction manual, the test report and other Data Sheets related shall be provided by us.
Q5 What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.
Packing & Delivery
Install waterproof membrane to reduce dust and water pollution
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Standard wooden boxes are used as outer packaging to reduce bumps in international transportation
Delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
For customized type , delivery date need to be negotiated before taking order.
