Quick Details
-
Engine Brand:
-
Chinese famous brand
-
Travel Speed:
-
0-5km/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mountain Raise
-
Dimension(L*W*H):
-
1500*1000*1650mm
-
Product name:
-

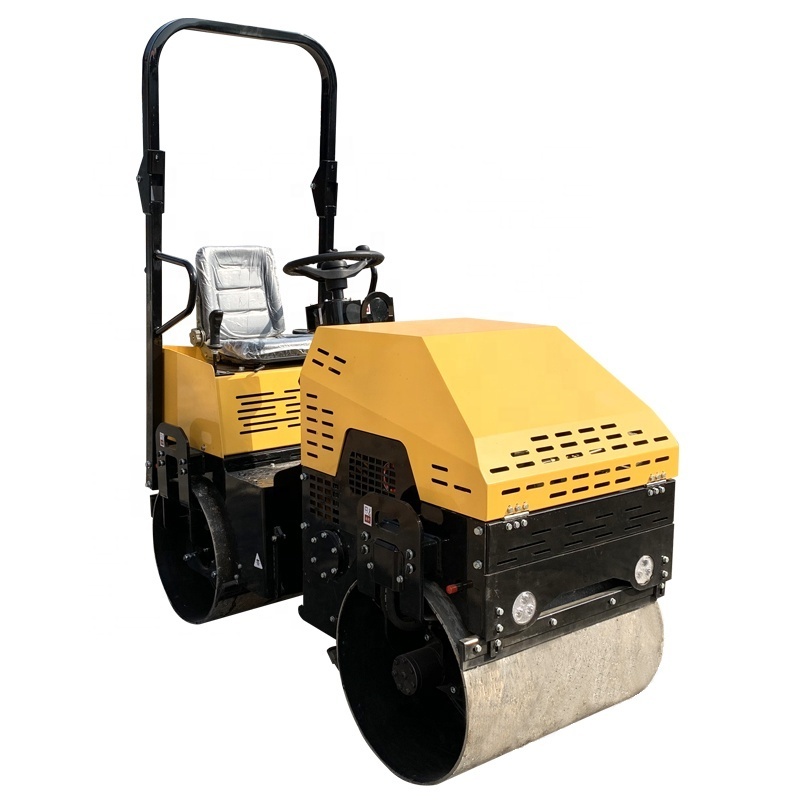

rodillo compactacion compactador de 3 toneladas
-
Volume of hydraulic tank L:
-
18
-
Water tank capacity L:
-
55
-
Climbing capacity:
-
30%
-
Vibration frequency / excitation force:
-
70Hz/20KN
-
Drive:
-
Inlet variable column plunger pump hydraulic motor
-
Steering direction:
-
Hydraulic steering
-
Vibration:
-
Mechanical drive Electromagnetic clutch
-
Operating weight Kg:
-
1200
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
9hp
-
Weight:
-
1 Ton
-
Engine Brand:
-
Chinese famous brand
-
Travel Speed:
-
0-5km/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mountain Raise
-
Dimension(L*W*H):
-
1500*1000*1650mm
-
Product name:
-
rodillo compactacion compactador de 3 toneladas
-
Volume of hydraulic tank L:
-
18
-
Water tank capacity L:
-
55
-
Climbing capacity:
-
30%
-
Vibration frequency / excitation force:
-
70Hz/20KN
-
Drive:
-
Inlet variable column plunger pump hydraulic motor
-
Steering direction:
-
Hydraulic steering
-
Vibration:
-
Mechanical drive Electromagnetic clutch
-
Operating weight Kg:
-
1200
rodillo compactacion compactador de 3 toneladas
Technical Parameter
1.Engine
|
Type of engine |
Single cylinder Vertical Air cooling Four stroke Diesel engine |
|
Engine model |
186F |
|
Power |
8.5hp/3600rpm |
|
Start mode |
Electric start |
|
Fuel consumption g/kw.h |
280 |
|
Lubricating oil capacity L |
1.65 |
2.Road Roller
|
Machine parameter |
|
|
Operating weight Kg |
1200 |
|
Volume of hydraulic tank L |
18 |
|
Water tank capacity L |
55 |
|
Fuel oil volume L |
5.5 |
|
Fuel type |
Diesel oil |
|
Forward / backward speed km/h |
0-5 |
|
Climbing capacity |
30% |
|
Vibration frequency / excitation force |
70Hz/20KN |
|
Nominal amplitude |
0.5mm |
|
Drive |
Inlet variable column plunger pump hydraulic motor |
|
Vibration |
Mechanical drive Electromagnetic clutch |
|
Steering direction |
Hydraulic steering |
|
Steel wheel diameter / widthmm |
Φ530X740/Φ530X800 |
3. Lubrication
|
Engine lubrication type |
SAE 15W40 |
|
Type of hydraulic oil |
Advanced wear-resisting hydraulic oil 46# |
|
Vibration |
Bearing lubrication oil |
|
Front and rear frame hinge |
Oil injecting nozzle |
|
Hand-held oil gun |
