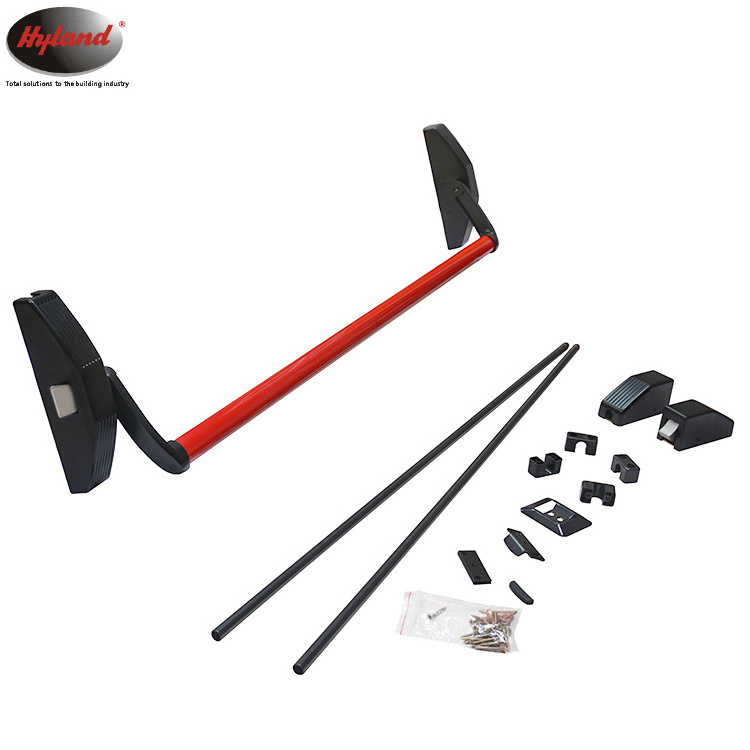

Panic Push Bar 3 points locking , Hyland OEM 330 Fire Door Plastic and iron tube Panic exit device for emergency door

1. Close with mortice
2. Exposure type
3. Press type rod
4. Different length according to the width of door
5. Different colors can be chosen

Check that a standard or a panic lock is inserted in the door.
With reference to the drawing above proceed as follows:
1. Cut the square pole on the proper length in order to couple it to the chosen lock/handle. Insert it in the crossbar sub-plate on the opposite side of the hinges and fix it with the allen key.
2. Fix the crossbar sub-plate with the self tapping screws 4.8 x 16mm inserting the square pole in the lock drilling the internal reinforcement steel with a 3mm diameter bit through the prepared holes on the leaf, if there are no holes use the template.
3. Fix the crossbar sub-plate with the self tapping screws 4.8 x 16mm on hinges side of leaf drilling the internal reinforcement steel sheet with a 3mm diameter bit through the prepared holes on the leaf, if there are no holes use the template.
4. Snap-on the plastic covers.
5. Install the crossbar arms tightening them with the supplied screws.
6. Take the correct "L" measure, add 19mm and cut the aluminium bar. Remove one arm, insert the bar and assemble all again.
7. Snap-on the "T" caps and stick on the adhesive label with the arrow.

Warning:
The security features of this product are of extreme importance for the conformity to the standard EN1125. Modifications are not allowed except those eventual ones written in the present installation instructions. The emergency crossbar has a good resistance to corrosion, it is anyhow opportune to protect it from direct sun or water. The assemble must be carried out following scrupulously the present instructions and the drawing shown above. For a correct installation it is necessary to assemble all the components shown in the above drawing, washers and spacers included. Assemble and maintenance should be done by specialized staff only.

Zhongshan Myland Hardware Products Factory is a manufacturer of door locks, patch fittings, panic devices,door hardware, lever handles, lock cases, cylinder glass locks, etc. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building project, office, residential and other industries.

Packing Details  : White box or color box, 1set/box, 10pcs/ctn

Package content: 2 crossbar sub-plates and 2 arms, squared pole 9 x 9 or 8 x 8, plastic covers of crossbar and caps, screws, allen keys, installation and maintenance instruction sheet, template, adhesive label with arrow, lock plugs.

Delivery Details : Around 40 days upon receipt of order comfirmation
