Quick Details
-
Brand Name:
-
Duling
-
Model Number:
-
DLPS-YKM
-
Max. Current:
-
3A/6A
-
Max. Working Pressure:
-
4.5mpa
-
Product name:
-
12v air pressure switch
-
Color:
-
Customer's Request
-
Rated voltage:
-
120V/240V
-
Frequency:
-
50-60HZ
-
Pressure range:
-
3-667PSI/0.02-4.6Mpa
-
Tolerance range:
-
1.45-14.5PSI/0.01-0.1Mpa
-
Contact form:
-
Nomal open(H), close(L)
-
Adaptive temperature:
-
-30~80℃
-
Life cycle:
-
100,000 times
-
Application:
-
12 volt air pressure switch
-
Certification:
-
UL
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
220V-240V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Duling
-
Model Number:
-
DLPS-YKM
-
Max. Current:
-
3A/6A
-
Max. Working Pressure:
-
4.5mpa
-
Product name:
-
12v air pressure switch
-
Color:
-
Customer's Request
-
Rated voltage:
-
120V/240V
-
Frequency:
-
50-60HZ
-
Pressure range:
-
3-667PSI/0.02-4.6Mpa
-
Tolerance range:
-
1.45-14.5PSI/0.01-0.1Mpa
-
Contact form:
-
Nomal open(H), close(L)
-
Adaptive temperature:
-
-30~80℃
-
Life cycle:
-
100,000 times
-
Application:
-
12 volt air pressure switch
-
Certification:
-
UL
Product Description
Fixed 12V Air Pressure Switch 12 Volt Air Pressure Switches
| No. | Opening Pressure Value | Closing Pressure Value | Pressure Category | Contact Form |
| DLPS-YKH | 2.50±0.06 | 2.00±0.05 | High Pressure | Nomal Close |
| DLPS-YKH | 2.60±0.06 | 2.20±0.06 | High Pressure | Nomal Close |
| DLPS-YKH | 2.80±0.06 | 2.20±0.06 | High Pressure | Nomal Close |
| DLPS-YKH | 3.00±0.06 | 2.40±0.06 | High Pressure | Nomal Close |
| DLPS-YKL | 0.05±0.03 | 0.15±0.04 | Low Pressure | Nomal Open |
| DLPS-YKL | 0.15±0.04 | 0.30±0.05 | Low Pressure | Nomal Open |
| DLPS-YKL | 0.30±0.05 | 0.45±0.05 | Low Pressure | Nomal Open |
| DLPS-YKL | 0.02±0.01 | 0.15±0.04 | Low Pressure | Nomal Open |

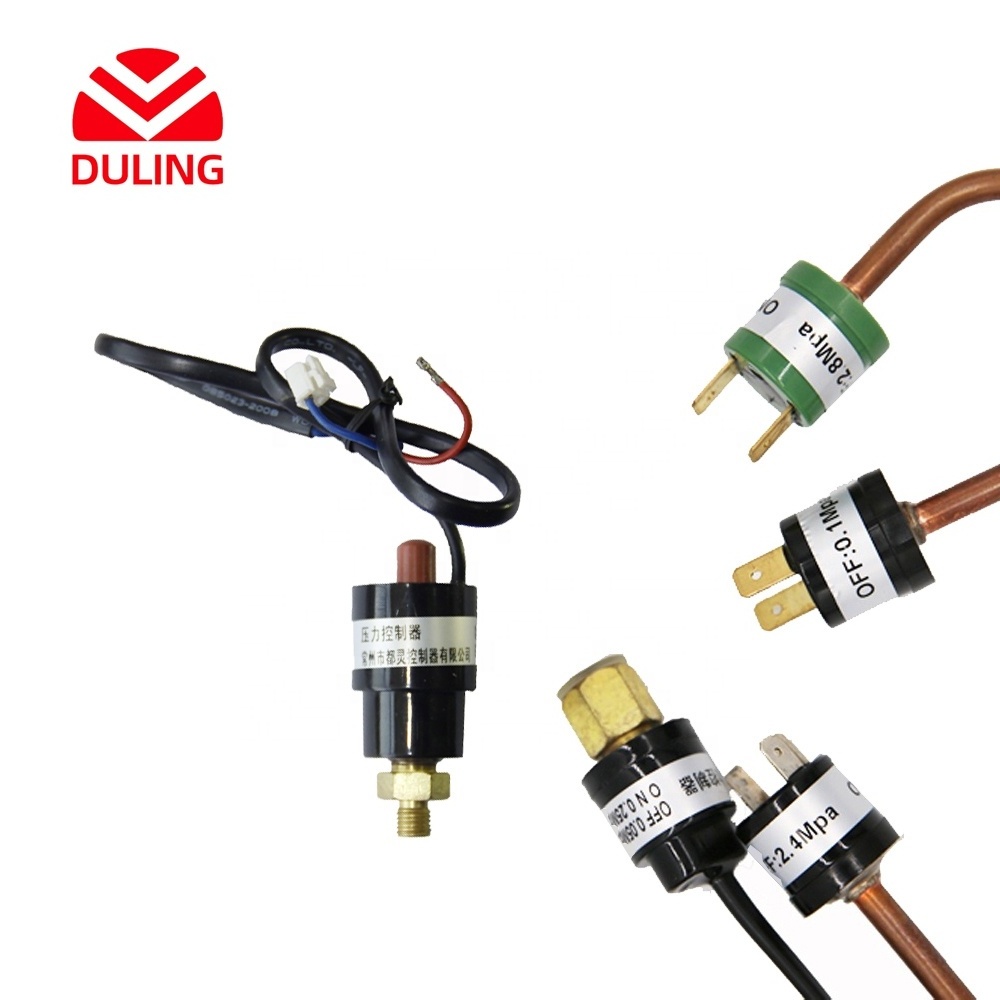

Detailed Images
Fixed 12V Air Pressure Switch 12 Volt Air Pressure Switches
Packaging & Shipping
Fixed 12V Air Pressure Switch 12 Volt Air Pressure Switches
