Quick Details
-
Brand:
-
xinteng
-
Application:
-
Juice cup, Camera flash, Electronic door locks, Camera
-
Color:
-
silver
-
Material:
-
C3604
-
Plunger:
-
Brass C3604,Plating 5u"Au over 60~100u" Ni.
-
Barrel:
-
Brass C3604,Plating 5u"Au over 60~100u" Ni
-
Spring:
-
SUS 304,Plating 1u"
-
Housing:
-
Black HTN+30GF UL94 V-0.
-
Srinforce:
-
40g±20g at 0.8mm working storke.
-
Full stroke:
-
0.8mm.
-
Mechanical life:
-
10000cycle Min.
-
Rated current:
-
2A Max.
-
Rated voltage:
-
DC 12V
-
Salt spray:
-
24H
Quick Details
-
Model Number:
-

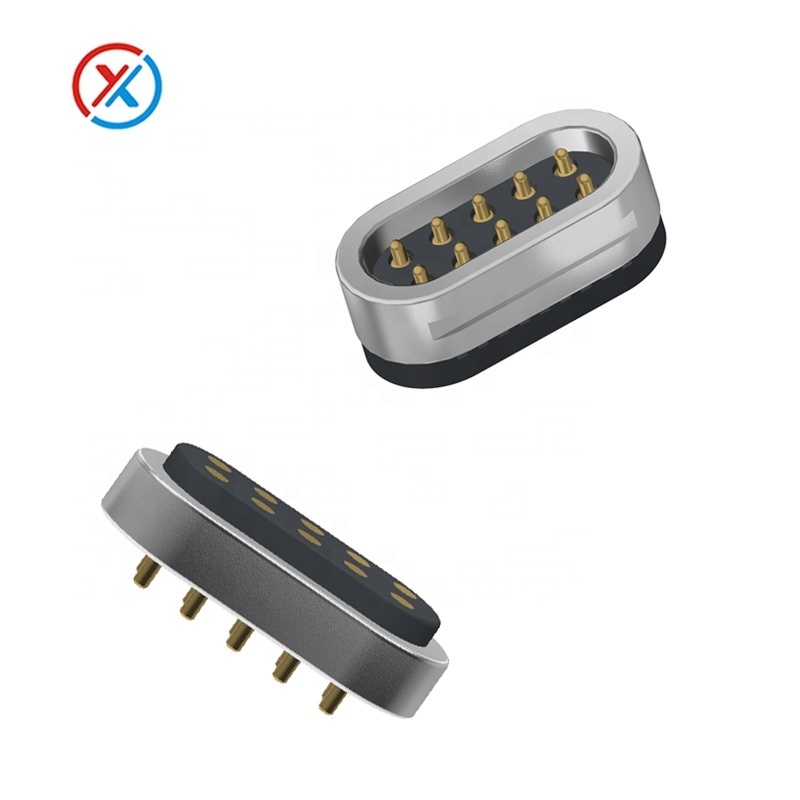

RM1222-10P
-
Type:
-
Magnetic connectors
-
Place of Origin:
-
Guangdong, China
-
Brand:
-
xinteng
-
Application:
-
Juice cup, Camera flash, Electronic door locks, Camera
-
Color:
-
silver
-
Material:
-
C3604
-
Plunger:
-
Brass C3604,Plating 5u"Au over 60~100u" Ni.
-
Barrel:
-
Brass C3604,Plating 5u"Au over 60~100u" Ni
-
Spring:
-
SUS 304,Plating 1u"
-
Housing:
-
Black HTN+30GF UL94 V-0.
-
Srinforce:
-
40g±20g at 0.8mm working storke.
-
Full stroke:
-
0.8mm.
-
Mechanical life:
-
10000cycle Min.
-
Rated current:
-
2A Max.
-
Rated voltage:
-
DC 12V
-
Salt spray:
-
24H
Products Description
|
Magnetic terminals Materials
|
|
|
|
Plunger
|
Brass C3604,Plating 5u"Au over 60～100u" Ni
|
|
|
Barrel
|
Brass C3604,Plating 5u"Au over 60～100u" Ni
|
|
|
Spring
|
SUS 304，Plating 1u"
|
|
|
Housing
|
Black HTN+30GF UL94 V-0
|
|
|
Mechanical
|
20,000 CyclesSUS 304，Plating 1u"
|
|
|
Srinforce
|
40±20at 0.8 workinstroke
|
|
|
Full stroke
|
0.8mm
|
|
|
Mechanical life
|
10000cycle Min
|
|
|
Electrical
|
|
|
|
Rated current & voltage
|
DC 12V，2A Max
|
|
|
|
Contact resistance 50mΩ max At working height
|
|
The magnetic connector is a combination of magnets added on the basis of the pogo pin connector, and the use of NdFeB permanent magnet ensures a stable and reliable connection between male and female. The magnetic connector makes up for the advantages of convenient plugging, safety, compact size, easy cleaning, and lateral pull-out that traditional connectors lack, and truly realizes 100% automatic positioning, automatic connection, quick plugging and unplugging, separation by external force, and forced disconnection will not damage the connection port of the device. It has been rapidly promoted and used in many fields.
