Quick Details
-
Max. Loading Capacity:
-
200
-
Weight (KG):
-
1300 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rick
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
48 kW
-
Product name:
-
vacuum emulsifier
-
Keyword:
-
vacuum emulsifier
-
Heating method:
-
Electric Steam Heating
-
Function:
-
emulsion, homogenizing, mixing
-
Machine Type:
-
Vacuum Mixer Mixing Machine
-
Homogenizing speed:
-
0-3000RPM
-
Capacity:
-
80-200L
-
Application scope:
-
Chemical Cosmetic Food
-
Stirrer type:
-
Wall Scraper Mixer
Quick Details
-
Barrel Volume (L):
-
200
-
Max. Loading Volume (L):
-
200 L
-
Range of Spindle Speed(r.p.m):
-
0 - 3000 r.p.m
-
Max. Loading Capacity:
-
200
-
Weight (KG):
-
1300 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rick
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
48 kW
-
Product name:
-
vacuum emulsifier
-
Keyword:
-
vacuum emulsifier
-
Heating method:
-
Electric Steam Heating
-
Function:
-
emulsion, homogenizing, mixing
-
Machine Type:
-
Vacuum Mixer Mixing Machine
-
Homogenizing speed:
-
0-3000RPM
-
Capacity:
-
80-200L
-
Application scope:
-
Chemical Cosmetic Food
-
Stirrer type:
-
Wall Scraper Mixer

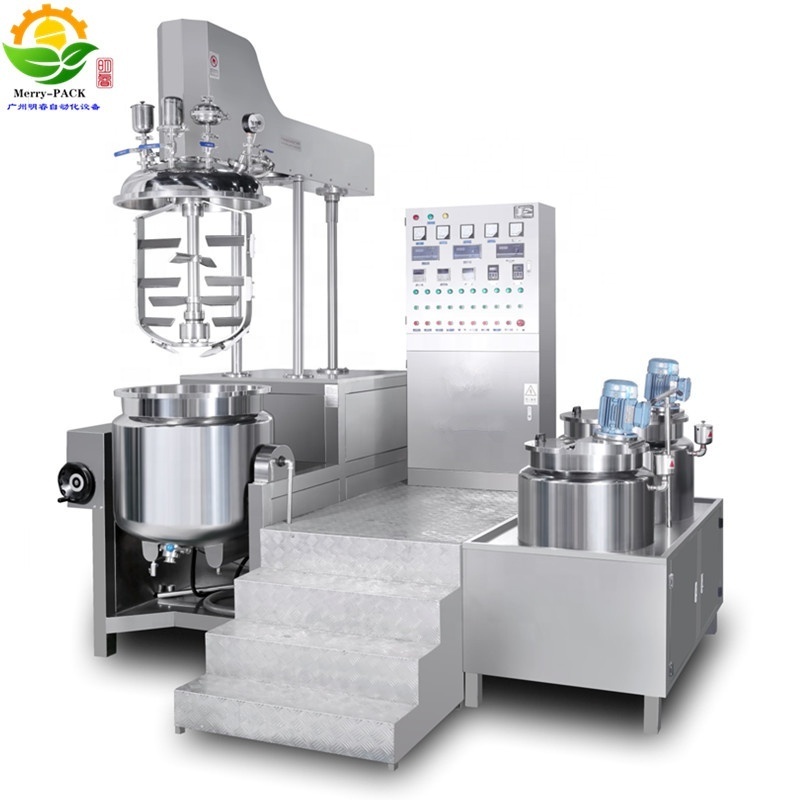

Chemical cosmetics equipment agitator mixer homogeneous stainless steel mixing tank came syrup making homogenizing machine price
T he homogeneous machine is a kind of versatile equipment which can make liquid, suspended solids and particles substance into homogeneous thinning. homogenizer works by breaking or subdividing the dispersed components into smaller particles and then distributing them evenly throughout the mixture, to produce a uniformly consistent mixture. Homogenizing is primarily used with components that are not dissolvable in each other, that are barely mixable or not mixable at all. Solids can usually be homogenized by stirring.
Application:
1.
Daily Chemical & Cosmetics Industry:
Such as baby cream, skin cream, face cream, shaving cream, shaving cream, lotion, shampoo, toothpaste, cold cream, sunscreen cream,face cleanser, moisture cream, liquid soap etc;
2. Food Industry:
Sauce, mayonnaise, juice, cheese, oral, nutrition, infant food, chocolate, sugar , tomato paste etc;
3. Health care Industry:
Paste, ointment, Latex, emulsions, salves (ointments), oral syrup, liquid. etc;
4. Chemical Industry:
Latex, saponification products, paints, coatings, resins, adhesives, lubricants and the like.
Features description:
1,
PLC control v
acuum
emulsif
ying
mixer
is control by PLC system, can setting the parameter by HMI touch panel,
the
machine
material contacted part
with product
is made by SS316L, inside and outside of the equipment are with mirror polishing and get to GMP standard.
2, PTFE scraping board cater to body of
blending
groove and scrape out viscosity material on tank wall
s,
is suitable to every kind of complicated recipe and achieve optimizing effect.
3,
PLC control v
acuum
emulsif
ying
mixer
the homogenizer
is installed
on
top
for easy to make machine cleaning
. During few production,
i
t can exert
emulsion
effect fully.
4.
PLC control v
acuum
emulsif
ying
mixer
is frequency conversion timing control and can setting the homogenizing time, it adopts the most advanced German-technology,
t
he speed of high emulsification is 0-3000r/min, you can
customized
highest rotate speed up to 4500r/min
5, Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,
rubbing,
centrifugal to make sure exquisite and slick product.
6. Finished products can be discharged by
p
ositive pressure
or tilt the tank, or by
transfer
pump.
Technical Parameters:
|
Model |
Working capacity |
Stir motor/speed |
Homogenizer motor/speed |
||
|
RHJ-300L |
300L |
2.2Kw |
0-63RPM |
4Kw |
0-3000RPM |
|
RHJ-500L |
500L |
3Kw |
0-63RPM |
5.5Kw |
0-3000RPM |
|
RHJ-1000L |
1000L |
4Kw |
0-63RPM |
7.5Kw |
0-3000RPM |
|
RHJ-2000L |
2000L |
5.5Kw |
0-63RPM |
11Kw |
0-3000RPM |
|
RHJ-3000L |
3000L |
7.5Kw |
0-63RPM |
15Kw |
0-3000RPM |
GMP Project case:
