Quick Details
-
WIFI:
-
NO
-
Customized support:
-
yes
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hungso
-
Model Number:
-
LDG
-
Cable length:
-
0m
-
Color:
-
white
Quick Details
-
Rated Voltage:
-
250
-
Rated Current:
-
13
-
Application:
-
Industrial
-
WIFI:
-
NO
-
Customized support:
-
yes
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hungso
-
Model Number:
-
LDG
-
Cable length:
-
0m
-
Color:
-
white
Products Description
Product parameters
|

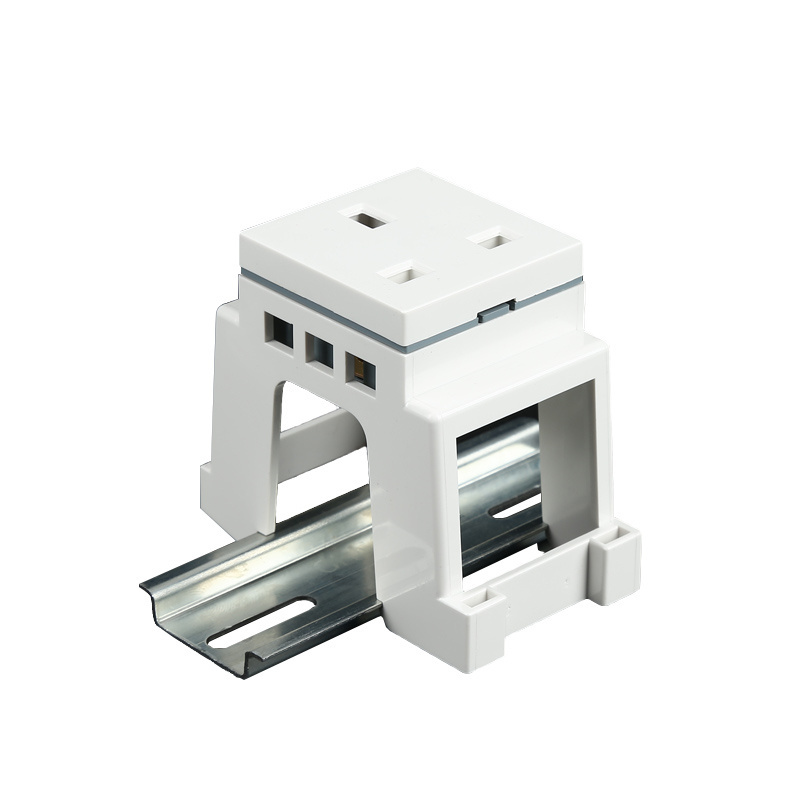

PRODUCT NAME
|
PRODUCT MODEL
|
RATED CURRENT
|
|
RAIL SOCKET
|
LDG
|
13A
|
|
NOMINAL VOLTAGE
|
MODE OF CONNECTION
|
INSTALLATION METHOD
|
|
250V
|
PLATEN CONNECTION
|
RAIL MOUNTING
|
Installation Instructions
Guiderail socket installation procedure
1. Place the product on the guide rail
2. Put the school clip into the side of the track first
3. Forcefully pull the product to the right, so that the other end of the installation buckle is flush with the guide rail
4. Install the other end of the buckle flush with the guide rail, then press down the production socket and put it on the track
Guide rail socket disassembly method
1. Pull the product to the right, so that the other end of the cover buckle (no spring end) off the edge of the track
2. Lift the product - side slightly upwards so that the end face of the cover plate is slightly higher than the guide plane. In this process, the socket should not be overly lifted to prevent the school latch cracking
3. Push the product to the left to make the cover buckle (spring end) leave the guide rail
4. Directly remove the product from the guide rail
1. Place the product on the guide rail
2. Put the school clip into the side of the track first
3. Forcefully pull the product to the right, so that the other end of the installation buckle is flush with the guide rail
4. Install the other end of the buckle flush with the guide rail, then press down the production socket and put it on the track
Guide rail socket disassembly method
1. Pull the product to the right, so that the other end of the cover buckle (no spring end) off the edge of the track
2. Lift the product - side slightly upwards so that the end face of the cover plate is slightly higher than the guide plane. In this process, the socket should not be overly lifted to prevent the school latch cracking
3. Push the product to the left to make the cover buckle (spring end) leave the guide rail
4. Directly remove the product from the guide rail
