Pneumatic Piston Filling Machine Single Nozzle Honey Creams Water 5-50ml Paste and Liquid Bottle Filling Machine

Pneumatic Piston Filling Machine Single Nozzle Honey Creams Water 5-50ml Paste and Liquid Bottle Filling Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $195

≥5 Pieces

US $185

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: less than 1%, 0.2~1ml

Voltage:: 110V/220/,50HZ/60HZ

Place of Origin:: China

Dimension(L*W*H):: 270*270*700mm

Weight:: 15 KG

Core Components:: Piston

Material:: Stainless steel/PTFE/Iron

Mini. Filling Nozzle:: 2.2mm

Filling Speed:: 20~60pcs/min(as per filling range)

Filling Range:: 5~50 g(ml)

Capacity of Hopper:: 10 Liter

Work Air Pressure:: 0.4~0.6 Mpa

Suitable for product:: Paste Liquid Reagent Cream

Dimensions:: 270*270*700 mm

Net.Weight:: 15 kg

Quick Details

Machinery Capacity:: 20~60 bottles/min

Packaging Material:: Plastic, Metal, Glass

Filling Material:: Water, Oil, Juice, Paste like cream lotion, Chemical Reagent

Filling Accuracy:: less than 1%, 0.2~1ml

Voltage:: 110V/220/,50HZ/60HZ

Place of Origin:: China

Dimension(L*W*H):: 270*270*700mm

Weight:: 15 KG

Core Components:: Piston

Material:: Stainless steel/PTFE/Iron

Mini. Filling Nozzle:: 2.2mm

Filling Speed:: 20~60pcs/min(as per filling range)

Filling Range:: 5~50 g(ml)

Capacity of Hopper:: 10 Liter

Work Air Pressure:: 0.4~0.6 Mpa

Suitable for product:: Paste Liquid Reagent Cream

Dimensions:: 270*270*700 mm

Net.Weight:: 15 kg

Products Description

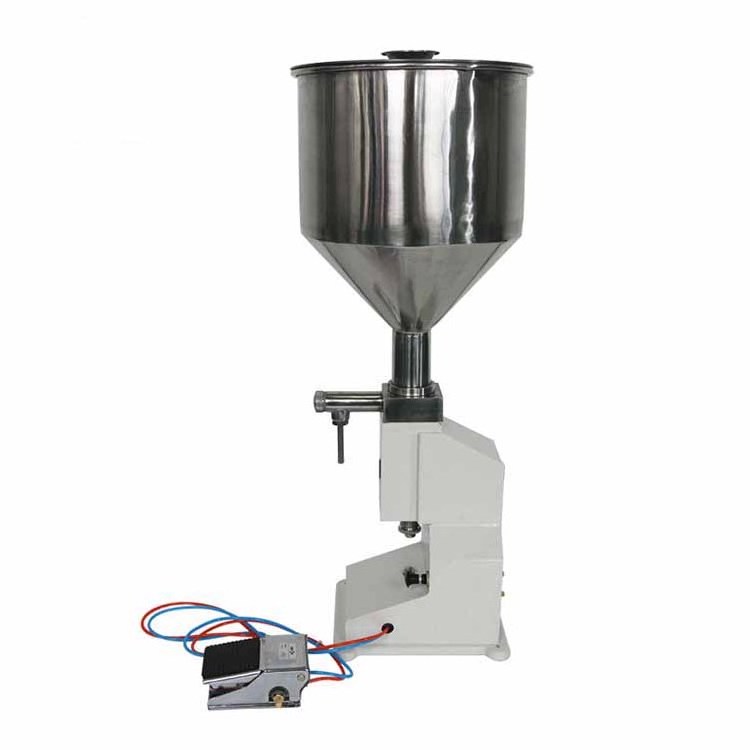

A02 Pneumatic Filling Machine

❖ A02 pneumatic filling machine is improved on the basis of the A03 manual filling machine, and it is driven by compressed air, which make operation more convenient.

❖ It is suitable for small dose filling work in hospitals, laboratories, beauty salons, daily chemical industries and small/medium - sized enterprises .

❖ It is an ideal equipment for paste & liquid to be packed/filled. Which can fill 5-50g for liquids, pastes and other products.

❖ The main body and parts to contact with products is made of stainless steel and PTFE, wear-resisting and resist corrosion.

Parameter Sheet

Item No.	Model	A02
01	Filling Speed	20 ~ 60 pcs/min
02	Filling range	5-50ml
03	Diameter of nozzle	4mm/8mm
04	Filling Accuracy	0.2 ~ 1ml
05	Hopper Capacity	10 L
06	Air pressure	0.4 ~ 0.6 Mpa
07	Dimension(LxWxH)	270 x 270 x 700mm
08	Net.Weight	15.0kg
09	Auxiliary equipment	Air compressor

Details Images

Recommend Products

REX-C700 Lipstick Filling Machine

G1WG Liquid/Paste Filling Machine With Mixer

After-sales Service

* 7 x 24 hours time for after-sales service, online guide etc.
* Online guide to installation and commission; On-site service available if need and will send professional engineer to

your office/factory to install and test the machine and train your worker for free.
* Warranty period for all machines is one (1) year.
* Out of warranty one year, guide and help you to maintain the machines in free charges.
* Every 2 years, we will help customers to overhaul the complete machines in free charges.
