Quick Details
-
Controller Type:
-
Time controller
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE ,TUV ,ISO
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JinHong
-
Model Number:
-
JHSZ02-6kw
-
Load Power (W):
-
6000w
-
Output Voltage (V):
-
220v
-
Output Frequency:
-
50Hz/60Hz
-
Work Time (h):
-
24H
-
Module number:
-
20units
-
Module Size:
-
1650 x 992mm
-
Tracking precision:
-
≤ 1°
-
Tracking angle:
-
-120° ~ +120°
-
Power Supply:
-
90~264VAC,47~63HZ
-
Electricity consumption:
-
≤0.5(KW.h)
-
Bracket Material:
-
Aluminum/Galvanized steel
-
Design Life:
-
> 25 years
-
Certification:
-
CE,CQC, ISO9001, ISO14001, OHSAS18001
-
Package dimension:
-
5.25m*0.6m*0.8m
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
Time controller
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE ,TUV ,ISO
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JinHong
-
Model Number:
-
JHSZ02-6kw
-
Load Power (W):
-
6000w
-
Output Voltage (V):
-
220v
-
Output Frequency:
-
50Hz/60Hz
-
Work Time (h):
-
24H
-
Module number:
-
20units
-
Module Size:
-
1650 x 992mm
-
Tracking precision:
-
≤ 1°
-
Tracking angle:
-
-120° ~ +120°
-
Power Supply:
-
90~264VAC,47~63HZ
-
Electricity consumption:
-
≤0.5(KW.h)
-
Bracket Material:
-
Aluminum/Galvanized steel
-
Design Life:
-
> 25 years
-
Certification:
-
CE,CQC, ISO9001, ISO14001, OHSAS18001
-
Package dimension:
-
5.25m*0.6m*0.8m
Products Description
The dual axis solar tracking system uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller (DSP core), making the system accurate and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.
|

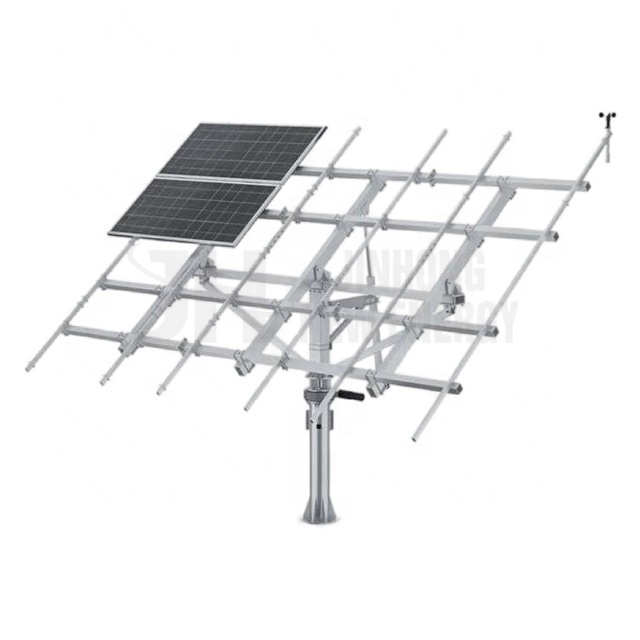

6kw dual-axis solar tracking system reference
|
|
|
|
|||
|
Module Num
|
20pcs
|
Dimension
|
2278*1134*35mm
|
|||
|
Tracking Precision
|
≤ 1°
|
Communicating Protocol
|
RS485-MODBUS
|
|||
|
Power Supply
|
220VAC/1500VDC
|
Electricity Consumption
|
≤0.5(KW.h)
|
|||
|
X tracking Angle
|
-120°~ +120°
|
Y tracking Angle
|
+30°~ +90°
|
|||
|
Bracket Area
|
≈ 33m2
|
Operating Temperature
|
-35 ~ +70 ℃
|
|||
|
Bracket Material
|
Hot Galvanizing steel
|
Device Weight
|
≈ 900 KG
|
|||
|
Standard
|
GBT 29320-2012 ,CE,TUV
|
Design Life
|
> 25 years
|
|||
Why Choose Us
Main Advantages:
1) Power generation efficiency increased by
35%~45%
.
2) Simple structure ,easy in installation and debugger application.
3).provide installation video ,introduction and foundation design drawing.
4)
Cover a small area
,you can grow shade-loving plant under the system.
5) The tracker could adjusts solar panels into horizontal level when meeting strong wind.
6)
Exclusive design patent
:dual axis solar bracket and solar controller.
Welcome to our company to see our patent and technology.
Details Images
solar tracker controller
The control method of the solar tracker is time control,precise calculation.The tracking precision is up to 0.5degree.When lack of illumination in cloudy and rainy days,the solar tracker can calculate the actual location of the sun accurately.When the weather turning to sunny from cloudy,the solar tracker can collect all the solar energy immediately,realizing the most efficient solar tracking.
The tracking system has wind protection interface,supports external wind speed sensor,can turn into maximum wind resistance state at any time.With 485communication interface,device data can be read through software,remote control and group control of multiple devices also can be achieved.
After Sales Service
Installation video + foundation design
We will design the foundation diagram as soon as possible after placing the order. You can make the foundation first and install it immediately after receiving the goods.We will provide not only a manual, but also a video of the installation. In addition, if there is any problem on the installation site, we can also provide video guidance.
Certifications
Company Introduction
Established in 2013,Shandong Jinhong New Energy Co.,Ltd is a manufacture and trader,specialized in the research,development and production of Dual axis solar tracking system 、single axis solar tracking system and solar water pump.We are located in Taian Shandong,with convenient transportation access.All of our products comply with international quality standards and are greatly appreciated in a variety of different market throughout the world.
FAQ
1. Are you a factory ?
Yes, we are.
2. Where is your factory location ?
Our factory locates at Guhe East Branch Road, Zhong Tianmen Street, High-tech Zone, Taian City, Shandong Province, China
3. Which is your nearest port for delivery ?
Qingdao port
4. What will be the delivery time of your products ?
Normally in 5-10days if we have finished products in stock, production time of new ones is 20-35days.
5.Monthly output?annual output?
10mw/month, 1000mw/year
