Quick Details
-
Brand Name:
-
N
-
Model Number:
-
3000w
-
Output Frequency:
-
2450Mhz
-
Output Current:
-
1100mA
-
Product Description:
-

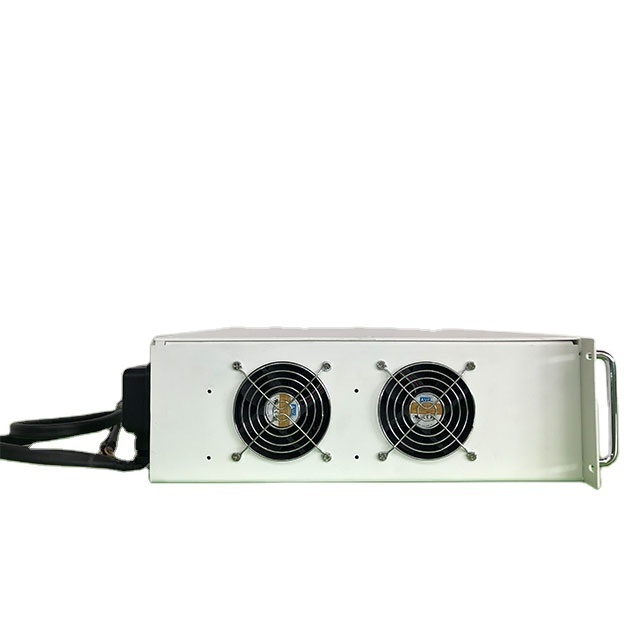

Industrial Microwave Equipment Inverter
-
Application:
-
Industrial Heater,Dryness Equipment
-
Normal voltage range:
-
AC 180-260V
-
Frequency Range:
-
50Hz-60Hz
-
Max input current:
-
27A
-
Regulation input power range:
-
400-3000W
-
Max endure input voltage:
-
AC 270V
-
Rated Output Anode HV:
-
DC 4400V
-
Anode Output Current Max:
-
1100mA
-
Filament preheating time:
-
10S
-
Output Power:
-
50-1500W
Quick Details
-
Input Voltage:
-
220V
-
Output Voltage:
-
3.8kV-4.2kV
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
N
-
Model Number:
-
3000w
-
Output Frequency:
-
2450Mhz
-
Output Current:
-
1100mA
-
Product Description:
-
Industrial Microwave Equipment Inverter
-
Application:
-
Industrial Heater,Dryness Equipment
-
Normal voltage range:
-
AC 180-260V
-
Frequency Range:
-
50Hz-60Hz
-
Max input current:
-
27A
-
Regulation input power range:
-
400-3000W
-
Max endure input voltage:
-
AC 270V
-
Rated Output Anode HV:
-
DC 4400V
-
Anode Output Current Max:
-
1100mA
-
Filament preheating time:
-
10S
-
Output Power:
-
50-1500W
Product Paramenters
|
Normal voltage range
|
AC 180-260V
|
|
|
Frequency Range
|
50Hz-60Hz
|
|
|
Max input current
|
27A
|
|
|
Regulation input power range
|
400-3000W
|
|
|
Max endure input voltage
|
AC 270V
|
|
|
Rated Output Voltage & Current
|
|
|
|
Rated Output Anode HV
|
DC 4400V
|
|
|
Anode Output Current Max
|
1100mA
|
|
|
Rated Filament Voltage/ Current
|
2.0-4.8V（REF）/10-22A（REF）
|
|
|
Filament preheating time
|
10S
|
|
|
Protection
|
|
|
|
Input OCP
|
30A
|
|
|
OTP
|
75℃ typ
|
|
|
Output OVP
|
6500VDC
|
|
|
Output OCP
|
2A
|
|
|
Microwave Power
|
3KW
|
|
