Quick Details
-
accuracy:
-
0.2%FS
-
size:
-
108*46*25.4mm
-
Input and output:
-
0-10V5V
-
Power Supply:
-
DC24V
-
response time:
-
≤10ms
-
working frequency:
-
50HZ/60HZ
-
working temperature:
-
-20℃~+55℃
-
Insulation strength:
-
1500V AC / 1min
-
power waste:
-
1W
-
insulation resistance:
-
>100MΩ
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DOCHQH henandongchuan
-
Model Number:
-
DQ703Y
-
accuracy:
-
0.2%FS
-
size:
-
108*46*25.4mm
-
Input and output:
-
0-10V5V
-
Power Supply:
-
DC24V
-
response time:
-
≤10ms
-
working frequency:
-
50HZ/60HZ
-
working temperature:
-
-20℃~+55℃
-
Insulation strength:
-
1500V AC / 1min
-
power waste:
-
1W
-
insulation resistance:
-
>100MΩ
Hot Product
Product Paramenters
|
Model
|
dq703m
|
|
Input signal
|
4-20mA、0-20mA、0-10V、0-5V
|
|
Output signal
|
4-20mA、0-20mA、0-10V、0-5V
|
|
Power supply
|
DC24V ± 10%
|
|
Basic accuracy
|
0.2% F.S
|
|
Rated power consumption
|
≤ 1W
|
|
Service temperature
|
(- 20 ℃ ~ + 55 ℃)
|
|
Response time
|
≤ 10ms (0-90%) (typ)
|
|
Insulation strength
|
1500V AC / 1min (between input, output and power supply)
|
|
Installation method
|
35mm guide rail
|
|
Applicable field equipment
|
current signal output equipment
|

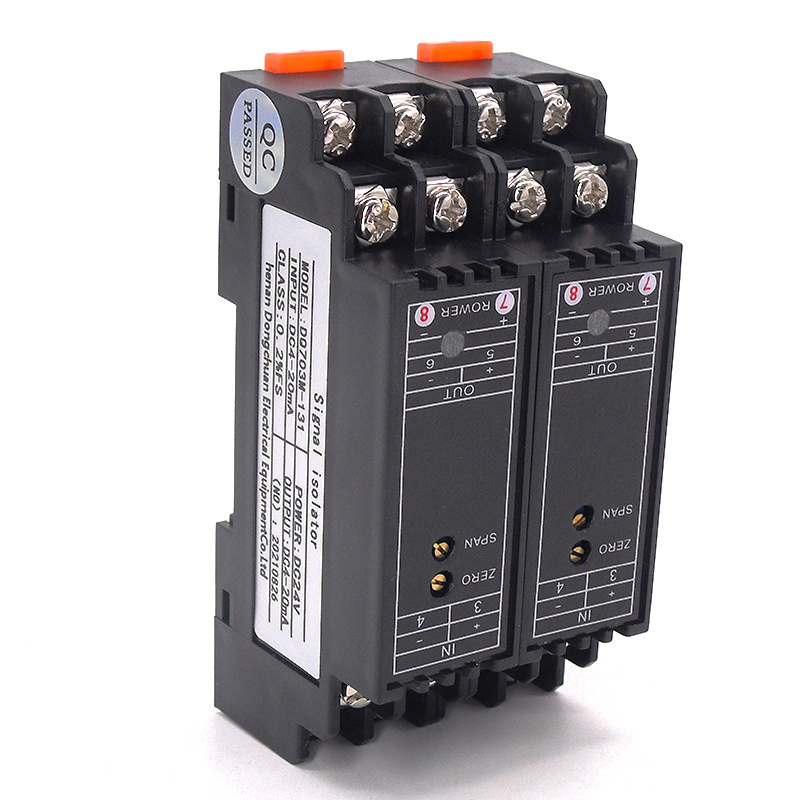

Dq703m-131 product manual
DC24V power, provide quarantine distribution power supply for the transmitter on site, and transmit the current signal generated by the transmitter from the field quarantine to the control room, PLC, DCS, etc
Specification
size
wiring diagram
