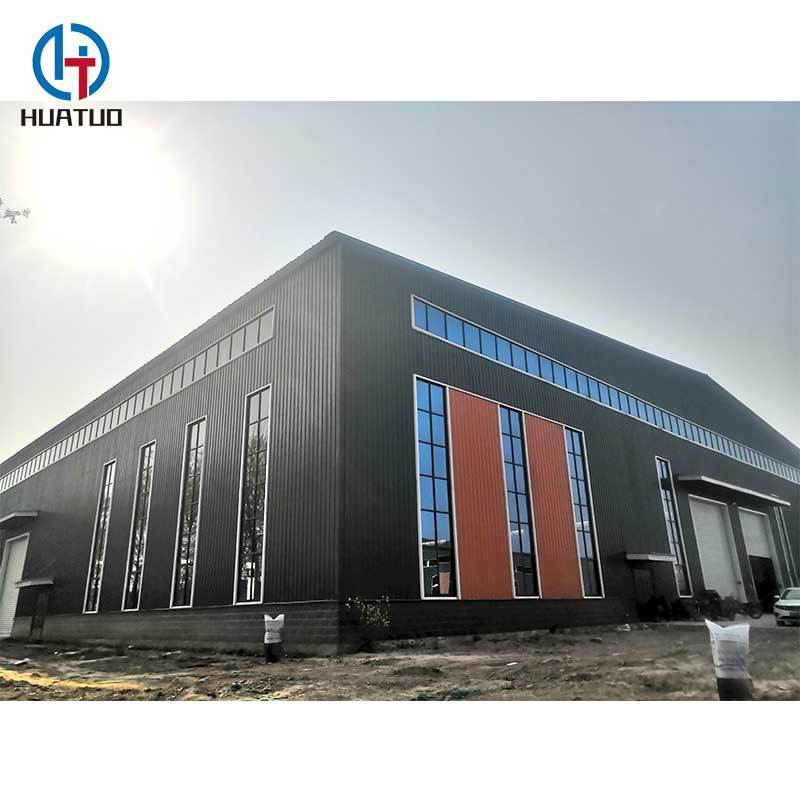

Steel Truss System Prefabricated Wedding Hall Steel Structures Metal Building

Steel Truss System Prefabricated Wedding Hall Steel Structures Metal Building

FOB Reference Price: Get Latest Price

≥500 Square meters

US $45

≥1000 Square meters

US $37

≥5000 Square meters

US $29

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Huatuo

Model Number:: SW-z034-TOP3

Delivery Time:: 20-30 days

Product name:: Steel Structure Warehouse

Surface treatment:: 1. Painting 2. Galvanized

Purlin:: C/Z shaped galvanized steel(Q235)

Keyword:: steel structural frame workshop

Material:: Q355, Q235

Use:: Warehouse Workshop Hangar Garage

Wall&Roof panel:: PU, EPS,rock wool/fiber glass sandwich panel

Other Name:: prefabricated buildings

Life span:: 50 Years

Installation:: Engineers Guidance

Quick Details

Grade:: Steel Structure(Q355B)

Tolerance:: ±1%

Place of Origin:: Shandong, China

Brand Name:: Huatuo

Model Number:: SW-z034-TOP3

Delivery Time:: 20-30 days

Product name:: Steel Structure Warehouse

Surface treatment:: 1. Painting 2. Galvanized

Purlin:: C/Z shaped galvanized steel(Q235)

Keyword:: steel structural frame workshop

Material:: Q355, Q235

Use:: Warehouse Workshop Hangar Garage

Wall&Roof panel:: PU, EPS,rock wool/fiber glass sandwich panel

Other Name:: prefabricated buildings

Life span:: 50 Years

Installation:: Engineers Guidance

Steel Truss System Prefabricated Wedding Hall Steel Structures Metal Building

Product Description

ITEMS		SPECIFICATION
Main Steel Frame	Colum	Q235,Q355 Welded/Hot Rolled H Section Steel
	Beam	Q235,Q355 Welded/Hot Rolled H Section Steel
Secondary Frame	Purlin	Q235 C/Z purlin
	Knee Brace	Q235 Angle Steel
	Tie Rod	Q235 Circular Steel Pipe
	Brace	Q235 Round Bar
	Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance System	Roof System	EPS/Glass Wool/Rock Wool/PU Sandwich Panel or Corrugated Steel Sheet,Skylighting Panel
	Wall System	Sandwich Panel or Corrugated Steel Sheet,Glass Curtain Wall
Window System	Aluminum Alloy Window/ PVC Window
Door System	Sliding Sandwich Panel Door/Rolling Metal Door/PVC Door/Lift door
Others	PVC Rainspout,Gutter, Wall Exhaust Fan,Roof Unpowered Fan,etc
Wind Resisitance Grace	11 Grades
Earthquake-resistance	7 Grades
Structure life span	Up to 50 years
Temperature	Suitable temperature -50℃~+50℃
Certification	CE, ISO
Finishing Options	Vast array of colors and textures available
Paint Options	Alkyd painting, two primary painting, two finish painting(gray paint, red paint, white paint, epoxy zinc etc.) or Galvanized.

Project Shown

Some of Materials

1. Main Steel Structure
A.The Main steel structure: Q355B Q235B H section column Beam

B.Secondary Steel Structure: Q355B Q235B C/Z purlin/square tube/ angle iron/ circular tube etc
C.Floor decking: Hot dipped galvanized 688 / 720 type decking sheet

2. Roof and Wall System
A.Corrugated steel sheet

B.Sandwich Panel: EPS/ Rock wool/ Glass Wool /Polyurethane(PU) sandwich panel
C. Steel wire / steel sheet+ Fiberglass wool roll

3. Bolt Accessories

Production Line

Our Services

Our Service and Team

Produce:
1. Production job based on steel building confirmed drawing.
2. We also can make the products with materials and drawing from customer.
3. Quality control work goes through every step during production.
4. Third Party Quality Check , customer on-site quality inspection and any other reasonable inspection way is ok.
After-sale service:
1.After production, we will supply steel building installation drawing
2.Send techinican to guide installation on site if customer request.
Additional service:
if need us check the other factory, or need us inspect the container loading , we are glad to help.
