Quick Details
-
Voltage:
-
24V/12v (customizable)
-
Dimension(L*W*H):
-
4080*1980*2350mm
-
Weight:
-
2380kg
-
Air capacity:
-
12 m3/min
-
Product name:
-
Diesel Engine Portable Screw Air Compressor
-
Cooling Method:
-
Air Cooling
-
Diesel Brand:
-
CUMMINS
-
Air end brand:
-
Baosi Airend
-
Bearing:
-
SKFBrand
-
Protection Grade::
-
IP23 or IP54
-
Exhaust Oil Content::
-
< 3ppm
-
Noise level:
-
Low Noise
-
OEM / ODM::
-
Offered
-
Color:
-
Customized Color
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Tuowei
-
Model Number:
-
SYC-12/12
-
Voltage:
-
24V/12v (customizable)
-
Dimension(L*W*H):
-
4080*1980*2350mm
-
Weight:
-
2380kg
-
Air capacity:
-
12 m3/min
-
Product name:
-
Diesel Engine Portable Screw Air Compressor
-
Cooling Method:
-
Air Cooling
-
Diesel Brand:
-
CUMMINS
-
Air end brand:
-
Baosi Airend
-
Bearing:
-
SKFBrand
-
Protection Grade::
-
IP23 or IP54
-
Exhaust Oil Content::
-
< 3ppm
-
Noise level:
-
Low Noise
-
OEM / ODM::
-
Offered
-
Color:
-
Customized Color
Product Description

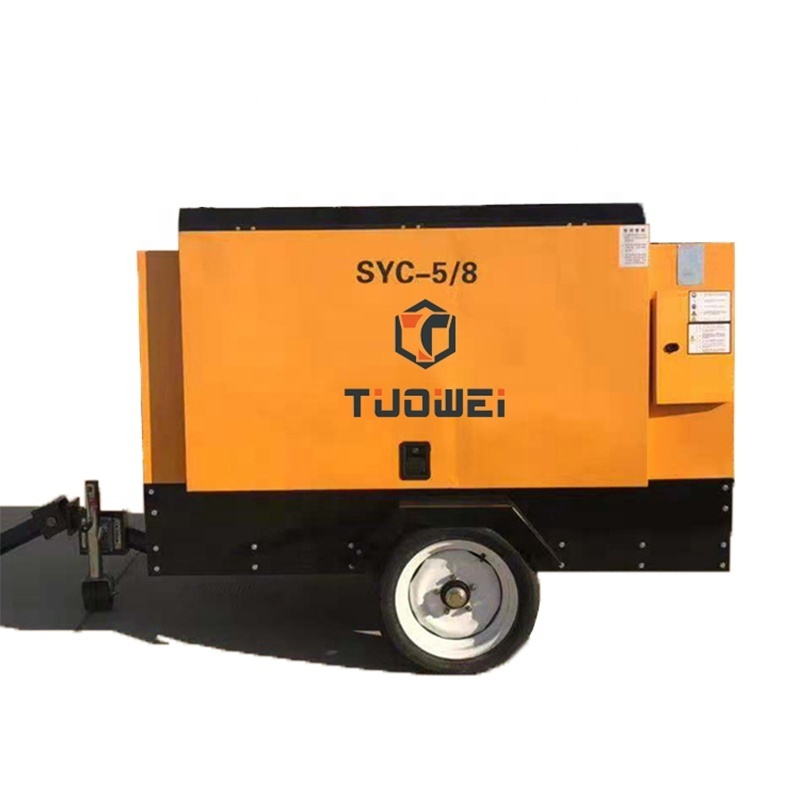

Diesel Engine Power Portable Screw Air Compressor
Technical Data of Diesel Engine Portable Screw Air Compressor
| Model | Capacity | Pressure | Diesel Brand | Diesel engine type | Weight | Dimensions |
| m3/min | bar | KGS | L*W*H mm | |||
| SYC-3/7 | 2.8 | 7 | Huayuan | 32kw | 1000 | 2200*1560*1400 |
| SYC-5/7 | 5 | 7 | *ICHAI | 41KW | 1100 | 2821*1470*1361 |
| SYC-6/8 | 6 | 8 | *ICHAI | 55kW | 1400 | 3750*1920*1700 |
| SYC-7/8 | 7 | 8 | YUCHAI | 4D80-K20,58kW | 1400 | 3750*1920*1700 |
| SYC-8/7 | 8 | 7 | YUCHAI | 65kw | 1400 | 3750*1920*1700 |
| SYC-8/8 | 8 | 8 | *ICHAI | 65kw | 1400 | 3750*1920*1700 |
| SYC-9/8 | 8.8 | 8 | YUCHAI | 75kW | 1600 | 3750*1920*1700 |
| SYC-10/7 | 10 | 7 | YUCHAI | YC4D95Z-K20,70kW | 1900 | 3900*1920*1700 |
| SYC-8.5/14 | 8.5 | 14 | CUMMINS | 4BTA3.9-C125,93kW | 1900 | 3900*1920*1900 |
| SYC-10/10 | 10 | 10 | CUMMINS | 4BTA3.9-C125,93kW | 1900 | 3900*1920*1900 |
| SYC-10/13 | 10 | 13 | CUMMINS | 4BTA3.9-C125,93kW | 2050 | 4080*1980*2350 |
| SYC-13/10 | 13 | 10 | CUMMINS | 4BTA3.9-C125,93kW | 2050 | 4080*1980*2350 |
| SYC-12/7 | 12 | 7 | CUMMINS | 4BTA3.9-C125,93kW | 2050 | 3900*1980*1900 |
| SYC-12/12 | 12 | 12 | CUMMINS | 6BTA5.9-C180,132kW | 2380 | 4080*1980*2350 |
| SYC-12/13 | 12 | 13 | CUMMINS | 6BTA5.9-C180,132kW | 2750 | 4080*1980*2350 |
| SYC-13/13 | 13 | 13 | CUMMINS | 6BTA5.9-C180,132kW | 2750 | 3450*1520*2220 |
| SYC-17/7 | 17 | 7 | CUMMINS | 6BTA5.9-C180,132kW | 3350 | 3380*1640*2350 |
| SYC-15/13 | 15 | 13 | YUCHAI | YC6A240-20,177kW | 3350 | 3380*1650*2500 |
| SYC-16/13 | 16 | 13 | CUMMINS | 6CTA8.3-C215,158kW | 3350 | 3980*1800*2450 |
| SYC-13/17 | 13 | 17 | CUMMINS | 6CTA8.3-C215,158kW | 3400 | 3780*1980*2350 |
| SYC-17/14.5 | 17 | 14.5 | CUMMINS | 6CTA8.3-C260,194kW | 3400 | 3980*1800*2450 |
| SYC-19/14.5 | 19 | 14.5 | CUMMINS | 6CTA8.3-C260,194kW | 3400 | 3980*1800*2450 |
| SYC-18/17 | 18 | 17 | CUMMINS | 6CTA8.3-C260,194kW | 3400 | 3980*1800*2450 |
| SYC-20/13 | 20 | 13 | CUMMINS | 6CTA8.3-C260,194kW | 3400 | 3980*1800*2450 |
| SYC-22/8 | 22 | 8 | CUMMINS | 6CTA8.3-C260,194kW | 4000 | 4580*1950*2600 |
| SYC-26/8 | 26 | 8 | CUMMINS | 6CTA8.3-C260,194kW | 4000 | 4580*1950*2600 |
| SYC-22/14 | 22 | 14 | CUMMINS | 6CTA8.9-C325, 239kW | 4500 | 4580*1950*2600 |
| SYC-27/10 | 27 | 10 | CUMMINS | 6CTA8.9-C325, 239kW | 5000 | 4600*1950*2850 |
| SYC-30/10 | 30 | 10 | CUMMINS | 6CTA8.9-C325, 240kW | 5000 | 4600*1950*2850 |
| Two Stages Compression Portable Diesel Screw Air Compressor | ||||||
| SYC-19.5/19 | 19.5 | 19 | CUMMINS | 6CTA8.3-C260,194KW | 3700 | 3650*1800*2500 |
| SYC-22/20 | 22 | 20 | CUMMINS | 6LTA8.9-C360,265KW | 4500 | 4600*1950*2850 |
| SYC-26/20 | 26 | 20 | CUMMINS | 6LTA8.9-C360,265KW | 4850 | 4600*1950*2850 |
| SYC-27/22 | 27 | 22 | CUMMINS | NTA855-P400 | 5000 | 4600*1950*2850 |
| SYC-26/25 | 26 | 25 | CUMMINS | QSZ13-C500 | 5100 | 4700*2100*2500 |
| SYC-21/35 | 21 | 35 | CUMMINS | QSZ13-C500 | 5100 | 4700*2100*2500 |
| SYC-33/25 | 33 | 25 | CUMMINS | QSZ13-C550 | 5200 | 4700*2100*2500 |
| SYC-26/35 | 26 | 35 | CUMMINS | QSZ13-C550 | 5200 | 4700*2100*2500 |
| Contact us for more models | ||||||
