Quick Details
-
Brand Name:
-
Yante
-
Model Number:
-
YT-ACM
-
Warranty Period:
-
One Year
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yante
-
Model Number:
-
YT-ACM
-
Warranty Period:
-
One Year
Product Overview

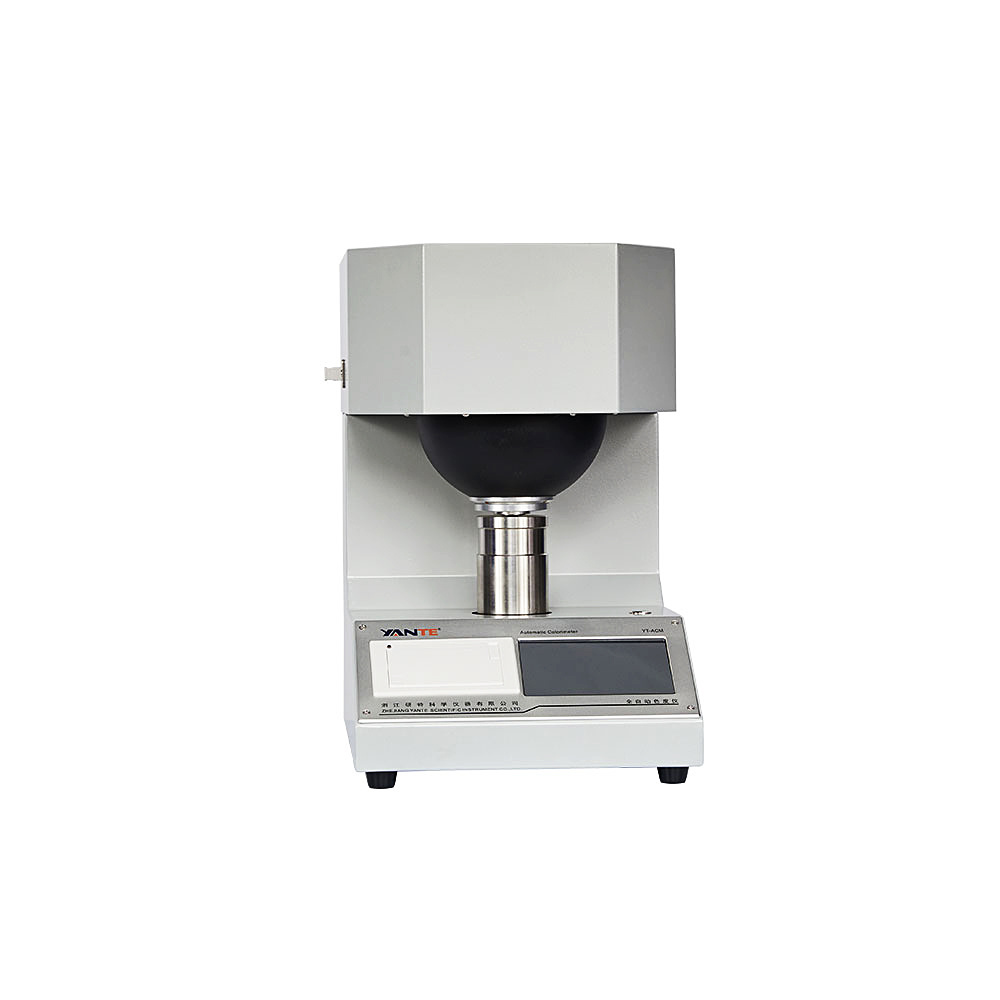

Automatic Colorimeter is a detection instrument for measuring the color, chromatic aberration and whiteness of objects based on the principle of light reflection.
Features At A Glance
Details Images
Product Function
Measure the color and chromatic aberration reflected by the object
Measure D65 brightness (R457 blue light whiteness)
Measure the degree of fluorescent whitening produced by the emission of fluorescent substances (the sample contains fluorescent whitening agent)
Measure CIE whiteness (Gantz whiteness W10 and color cast value TW10)
Measure the whiteness of ceramics, building materials and non-metallic mineral products
Measure Hunter System Lab and Hunter (Lab) whiteness
Measure yellowness, ink absorption value
Measure the opacity, transparency, light scattering coefficient and light absorption coefficient of the sample
Application Range
Paper, cardboard,pulp, plastic;
Salt, cement, starch, calcium carbonate, talc and other powders;
Chemical fiber pulp, cotton, chemical fiber, textiles;
.
Execute Standard
GB/T 7973、GB/T 7974、GB/T 7975、GB/T 8940.2、GB/T 1840、GB/T 13025、GB/T5950
GB/T 9338、GB/T 4739、GB/T 1543、GB/T 10339、GB/T 12911、ISO 2470、ISO 2471
Sales And Service Network
Product Paramenters
|
No.
|
Parameter item
|
Technical index
|
|
1
|
Power Supply
|
AC(100～240)V，(50/60)Hz，50W
|
|
2
|
Working Environment
|
Temperature(10~35)℃, Humidity≤ 85％
|
|
3
|
Display
|
480X272 dot matrix 5 inch color touch screen
|
|
4
|
Light source
|
Analog D65
|
|
5
|
Integrating sphere
|
Diameter 150mm
|
|
6
|
Sample Size
|
Test plate diameter ≥φ30mm while sample thickness≤40mm
|
|
7
|
Resolution ratio
|
Chromaticity Coordinate 0.0001,others 0.01
|
|
8
|
Zero Drift
|
≤0.1
|
|
9
|
Indicating Drift
|
≤0.1
|
|
10
|
Indication accuracy
|
Chromaticity coordinates≤0.01,R457≤0.5Y≤1.0
|
|
11
|
Repeatability
|
R457≤0.1, chromaticity coordinates≤0.001,Y≤0.1,△E≤0.2
|
|
12
|
Specular Reflectance Accuracy
|
≤0.1
|
|
13
|
Print
|
Built-in thermal printer
|
|
14
|
Communication Interface
|
RS232（optional）
|
|
15
|
Dimension
|
385×280×410 mm
|
|
16
|
Net Weight
|
12.5kg
|
