Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Greensun
-
Model Number:
-
SUN-14K-SG05LP3-EU-SM2
-
Input Voltage:
-
160-650V
-
Output Voltage:
-
380/400/415V
-
Output Current:
-
30.5-43.5A
-
Output Frequency:
-
50/60HZ
-
Size:
-
456*750*266mm
-
Certificate:
-
CE IEC
-
Warranty:
-
10Years, 10Years
-
Weight:
-
38kgs
-
Product name:
-
Three Phase Hybrid Inverter
-
Application:
-
Solar Power System
-
Protection:
-
IP65
-
Max PV Input Power:
-
18.2-26KW
-
Communication:
-
RS485; CAN
-
Efficiency:
-
≥97.6%
-
Cooling:
-
Smart cooling
-
Permissible Altitude:
-
3000m
-
Phase:
-
Three Phase
Quick Details
-
Output Type:
-
Single, DUAL, Triple
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97.6%
-
Place of Origin:
-
China
-
Brand Name:
-
Greensun
-
Model Number:
-
SUN-14K-SG05LP3-EU-SM2
-
Input Voltage:
-
160-650V
-
Output Voltage:
-
380/400/415V
-
Output Current:
-
30.5-43.5A
-
Output Frequency:
-
50/60HZ
-
Size:
-
456*750*266mm
-
Certificate:
-
CE IEC
-
Warranty:
-
10Years, 10Years
-
Weight:
-
38kgs
-
Product name:
-
Three Phase Hybrid Inverter
-
Application:
-
Solar Power System
-
Protection:
-
IP65
-
Max PV Input Power:
-
18.2-26KW
-
Communication:
-
RS485; CAN
-
Efficiency:
-
≥97.6%
-
Cooling:
-
Smart cooling
-
Permissible Altitude:
-
3000m
-
Phase:
-
Three Phase
Products Description
Specification
|

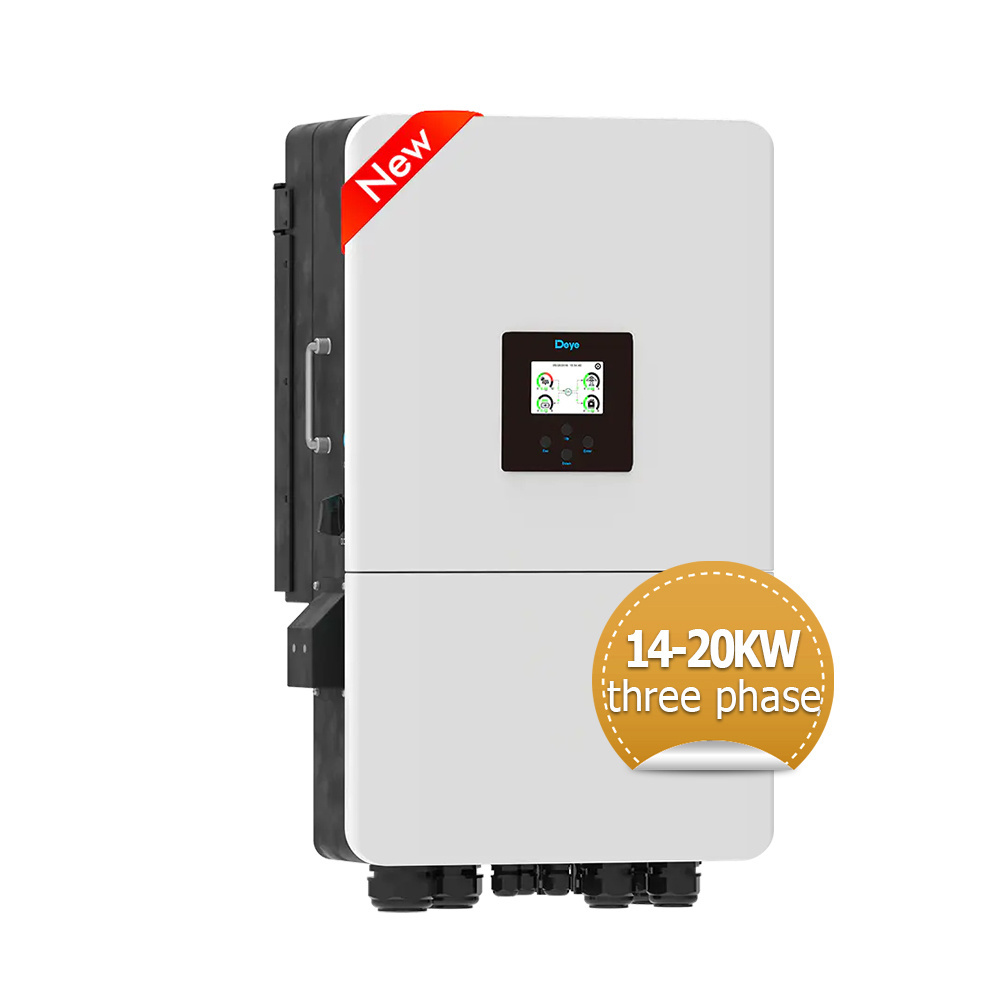

Hybrid Inverter 3Phase EU Standard
|
14KW
|
15KW
|
16KW
|
18KW
|
20KW
|
|||||
|
Battery Input Data
|
|
|
|
|
|
|||||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
|
|
|
|||||
|
Battery Voltage Range
|
40-60V
|
|
|
|
|
|||||
|
Max.Charging Current (A)
|
260
|
280
|
300
|
330
|
350
|
|||||
|
Max.Discharging Current (A)
|
260
|
280
|
300
|
330
|
350
|
|||||
|
Number of battery input
|
1
|
2
|
|
|
|
|||||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
|
|
|
|||||
|
PV String Input Data
|
|
|
|
|
|
|||||
|
Max. DC Input Power (W)
|
18200
|
19500
|
20800
|
23400
|
26000
|
|||||
|
Max. DC Input Voltage (V)
|
800
|
|
|
|
|
|||||
|
MPPT Voltage Range
|
160-650
|
|
|
|
|
|||||
|
Number of MPPT / Strings per MPPT
|
2/2+2
|
3/2+2+2
|
4/2+2+2+2
|
|
|
|||||
|
PV Input Current (A)
|
36+20
|
36+36+36
|
36+36+36+36
|
|
|
|||||
|
AC Input/Output Data
|
|
|
|
|
|
|||||
|
Rated AC Input/Output Active Power (W)
|
14000
|
15000
|
16000
|
18000
|
20000
|
|||||
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
|
|
|
|
|||||
|
Output Frequency and Voltage
|
50/60Hz; 3L/N/PE 220/380, 230/400Vac
|
|
|
|
|
|||||
|
Rated AC Input/Output Current (A)
|
21.3/20.3
|
22.8/21.8
|
24.3/23.2
|
27.3/26.1
|
30.4/29
|
|||||
|
Max. AC Input/Output Current (A)
|
23.4/22.4
|
25/24
|
26.7/25.6
|
30/28.7
|
33.4/31.9
|
|||||
|
Efficiency
|
|
|
|
|
|
|||||
|
Max Efficiency
|
97.6%
|
|
|
|
|
|||||
|
MPPT Efficiency
|
>99%
|
|
|
|
|
|||||
|
Certifications and Standards
|
|
|
|
|
|
|||||
|
Grid Regulation
|
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
|
|
|
|
|
|||||
|
Safety EMC / Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
|
|
|
|
|||||
|
General Data
|
|
|
|
|
|
|||||
|
Dimension (mm)
|
456×750×266 (Excluding Connectors and Brackets)
|
|
|
|
|
|||||
|
Weight
|
38
|
|
|
|
|
|||||
|
Protection Degree
|
IP65
|
|
|
|
|
|||||
|
Communication with BMS
|
WIFI, RS485, CAN
|
|
|
|
|
|||||
Factory and Production
Greensun Solar Energy Tech. Co., Limited is a professional, fast growing company. Greensun Solar is well known as a world leadingmanufacturer of cost-effective, high efficiency and good quality photovoltaic panel, storage battery, and complete solar energy system for residential and C&I application.
Having professional engineering team, Greensun Solar provide best design andcustomization of One-Stop Solar Solution. Greensun Solar was founded in 2004, headquartered in Hefei, Anhui China.
Our factory covers 90,000 square meters area and has more than 2,000 employees. Greensun Solar has 15years experience in solar industry and is dedicated to research and development, production innovation and strict quality control management.
We have comprehensive product range: solar panel, inverter, controller, battery, on grid and off grid solar system, hybrid solar system and solar pump system.
We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world.
Our factory covers 90,000 square meters area and has more than 2,000 employees. Greensun Solar has 15years experience in solar industry and is dedicated to research and development, production innovation and strict quality control management.
We have comprehensive product range: solar panel, inverter, controller, battery, on grid and off grid solar system, hybrid solar system and solar pump system.
We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world.
