Quick Details
-
Warranty:
-
1 year, 1 Year
-
Weight (KG):
-
0.8 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RD
-
Product name:
-
Harmonic Drive
-
Color:
-
Customer Request
-
Structures:
-
Bearing + Gear + Box
-
Application:
-
Machine Tool
-
Gears Style:
-
Planetary Gear Arrangement
-
Usage:
-
Machenical Area
-
Input Form:
-
Shaft Input
-
Type:
-
Harmonic Drive Robot
-
Packing:
-
Wooden Box
Quick Details
-
Gearing Arrangement:
-
Harmonic
-
Input Speed:
-
8500r/min
-
Output Speed:
-
140
-
Warranty:
-
1 year, 1 Year
-
Weight (KG):
-
0.8 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RD
-
Product name:
-
Harmonic Drive
-
Color:
-
Customer Request
-
Structures:
-
Bearing + Gear + Box
-
Application:
-
Machine Tool
-
Gears Style:
-
Planetary Gear Arrangement
-
Usage:
-
Machenical Area
-
Input Form:
-
Shaft Input
-
Type:
-
Harmonic Drive Robot
-
Packing:
-
Wooden Box

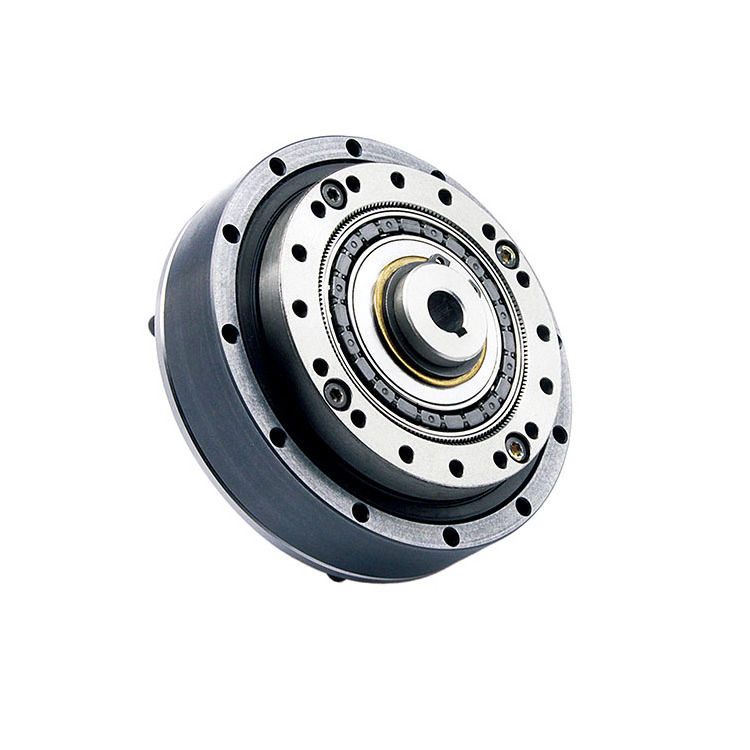

Product Show
Product Parameter
| RHSG Parameter: | |||||||
| Model | Speed Ratio | Enter The Rated Torque At 2000r/Min | Allowed Peak Torque At Start Stop | The Allowable Maximum Of The Average Load Torque | |||
| NM | kgfm | NM | kgfm | NM | kgfm | ||
| 14 | 50 | 6.7 | 0.7 | 22 | 2.2 | 8.6 | 0.9 |
| 80 | 9.7 | 1.0 | 29 | 2.9 | 13.7 | 1.4 | |
| 100 | 9.7 | 1.0 | 35 | 3.5 | 14 | 1.4 | |
| 17 | 50 | 20 | 2.0 | 43 | 4.3 | 33 | 3.3 |
| 80 | 27.8 | 2.8 | 54 | 5.4 | 34 | 3.4 | |
| 100 | 30 | 3.0 | 66 | 6.6 | 49 | 4.9 | |
| 120 | 30 | 3.0 | 66 | 6.6 | 49 | 4.9 | |
| 20 | 50 | 32.5 | 3.3 | 72 | 7.2 | 44 | 4.4 |
| 80 | 43 | 4.3 | 93 | 9.3 | 59 | 5.9 | |
| 100 | 51 | 5.1 | 105 | 10.5 | 63 | 6.3 | |
| 120 | 51 | 5.1 | 111 | 11.1 | 63 | 6.3 | |
| 160 | 51 | 5.1 | 117 | 11.7 | 63 | 6.3 | |
| 25 | 50 | 49 | 4.9 | 123 | 12.3 | 69 | 6.9 |
| 80 | 79 | 7.9 | 171 | 17.1 | 109 | 10.9 | |
| 100 | 85 | 8.5 | 199 | 19.9 | 136 | 13.6 | |
| 120 | 85 | 8.5 | 212 | 21.2 | 136 | 13.6 | |
| 160 | 85 | 8.5 | 223 | 22.3 | 136 | 13.6 | |
| 32 | 50 | 96 | 9.6 | 273 | 27.3 | 136 | 13.6 |
| 80 | 146 | 14.6 | 376 | 37.6 | 206 | 20.6 | |
| 100 | 171 | 17.1 | 416 | 41.6 | 269 | 26.9 | |
| 120 | 171 | 17.1 | 440 | 44.0 | 269 | 26.9 | |
| 160 | 171 | 17.1 | 463 | 46.3 | 269 | 26.9 | |
| Maximum Torque Is Allowed In An Instant | Allow The Maximum Speed To Be Entered | Average Input Speed Is Allowed | Back Gap | Design Life | |
| NM | kgfm | r / min | r / min | Arc Sec | Hour |
| 44 | 4.4 | 14000 | 8500 | ≤20 | 15000 |
| 58 | 5.8 | ||||
| 67 | 6.7 | ||||
| 88 | 8.8 | 10000 | 7300 | ≤20 | 20000 |
| 110 | 11.0 | ||||
| 135 | 13.5 | ||||
| 107 | 10.7 | ||||
| 127 | 12.7 | 10000 | 6500 | ≤20 | 20000 |
| 161 | 16.1 | ||||
| 188 | 18.8 | ||||
| 188 | 18.8 | ||||
| 188 | 18.8 | ||||
| 234 | 23.4 | 7500 | 5600 | ≤20 | 20000 |
| 320 | 32.0 | ||||
| 360 | 36.0 | ||||
| 385 | 38.5 | ||||
| 398 | 39.8 | ||||
| 482 | 48.2 | 7000 | 4800 | ≤20 | 20000 |
| 702 | 70.2 | ||||
| 807 | 80.7 | ||||
| 855 | 85.5 | ||||
| 855 | 85.5 | ||||
