200L 55 Gallon 2000W Oil Water Drum Heated Jacket Drum Heaters

Introduction of Drum Heating Blanket

Drum heating blanket consists of heating element, base core, fabric, power cord, junction box and control switch (or thermostat). It can be divided into two types, i.e. thermostatic type and adjustable temperature type. The constant temperature type is one or more fixed temperature control elements implanted in the electric heating blanket, when the temperature is lower than the set temperature, the electric heating blanket automatically starts heating, when the temperature reaches the set temperature; the electric heating blanket automatically disconnects the power and continues to keep warm. The whole process is cyclic. The temperature adjustable type has a built-in temperature probe, which transmits the temperature signal to the relay in the temperature control box, and the relay controls the connection of the circuit. The temperature can be set by the user according to the environment and conditions of use. The common temperature range is -35℃ to 120℃, for other temperature ranges, we can customize according to customer's requirements.

Specifications of drum heater
1 Voltage: 50HZ 220V/110v.
2 Rated power: 100-1500W/m2 (can be customized according to the different needs of users).
3 Rated current: 0.45A~5.5A.
4 temperature: adjustable temperature type ≤ 260 ℃ ± 2 ℃; accessories: electronic temperature control box.
5 constant temperature type: 35 ℃ ~ 260 ℃ ± 5 ℃ (5 ℃ / grade).
6 Heating area: can be customized, for example: 2200mm × 300mm.
7 Product size: Customized, for example: 2500mm x 400mm.

Features of drum heater
A. Thickened insulation layer makes the heating blanket have better heat preservation and faster heating speed.
B. Smooth pressure resistant line makes the heating blanket heats evenly.
C. High temperature resistant flame retardant fabric is used.
D. The heating blanket is designed with connection and fixing devices through which the heating area can be easily extended.
E. Unlike the insulation surface, the temperature tolerance of the heating surface is greater than 260℃.
F. The heating blanket has a built-in temperature control device to prevent the heating blanket from burning due to abnormal use.
G. Multiple temperature probes are uniformly arranged to ensure uniform heating.

Advantages of Drum Heaters
1. Integrated Type.
2. Customized size and shape.
3. Full coverage heating and insulation with high thermal and heating efficiency.
4. good flexibility.
5. Uniform heating.
6. Built-in overheat switch to prevent accidental burning of heated body.
7. Large range, high power and fast heating.
8. High insulation performance of all materials.
9. easy to install and remove, safer and adjustable.

Drum heater thermostat advantages:

The thermostats used in MEGA YU NENG drum heaters are self-developed and have exclusive patent certification.
The main advantages are:
1 Wide voltage range design, applicable voltage range 85-250V.
2 Timed on/off.
3 Celsius and Fahrenheit conversion.
For more details, refer to the manual.

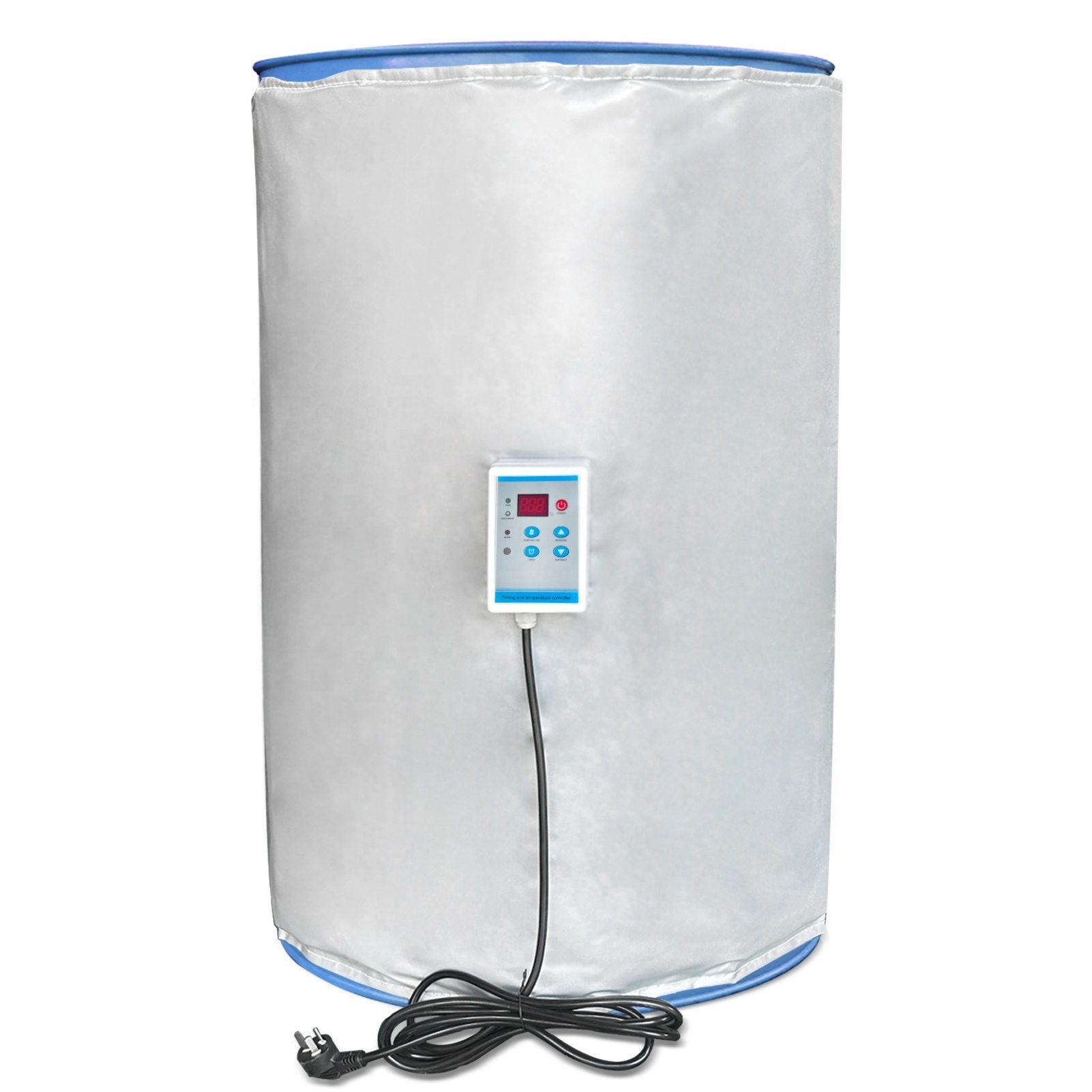

Drum heater detail picture

We will provide a one-stop service for the sale of:
Pre-sales: choose the most suitable drum heater for you according to your usage;
After-sales: We will provide warranty service for the product within one year, and at the same time, we will solve the problems you encounter in the process of use to achieve the maximum efficiency.
