Quick Details
-
Video encoding encoding type:
-
H.264 / H.265
-
Input:
-
HDMI
-
Protocol:
-
RTMP/RTSP/RTP/SRT/HLS/UDP
-
Output:
-
IP stream
-
Application:
-
Broadcast/livestreaming
-
Resolution:
-
1920x1080 / 1680x1056
-
Encoding sampling rate:
-
44100/48000 optional
-
Coding method:
-
AAC / AAC + / AAC ++ / MP3 / MP2 / AC3 optional
-
Digital volume:
-
50 ~ 50 adjustable
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Model Number:
-
HY-88
-
Video encoding encoding type:
-
H.264 / H.265
-
Input:
-
HDMI
-
Protocol:
-
RTMP/RTSP/RTP/SRT/HLS/UDP
-
Output:
-
IP stream
-
Application:
-
Broadcast/livestreaming
-
Resolution:
-
1920x1080 / 1680x1056
-
Encoding sampling rate:
-
44100/48000 optional
-
Coding method:
-
AAC / AAC + / AAC ++ / MP3 / MP2 / AC3 optional
-
Digital volume:
-
50 ~ 50 adjustable
Product introduction:

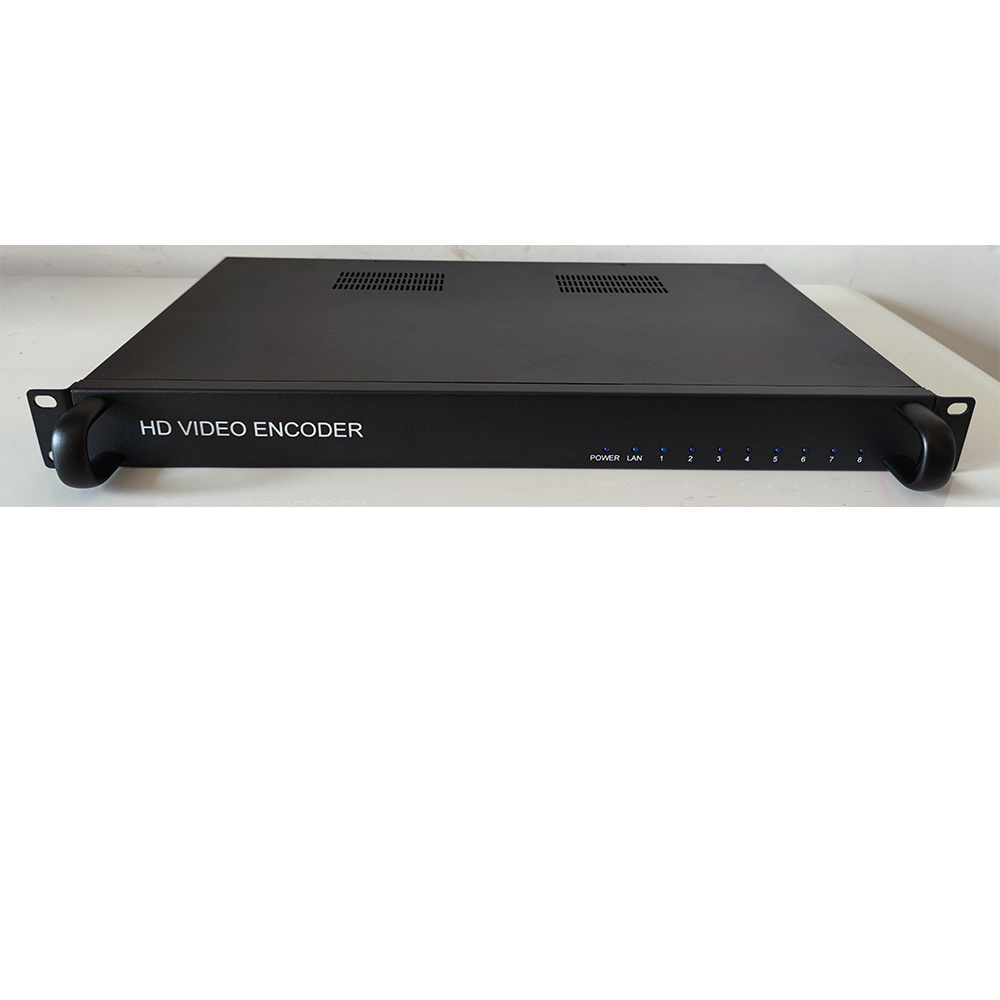

8-channel HD encoder HDMI to IP, H265/264 network encoder, live encoder, Stream support RTMP / RTSP / HTTP TS / HTTP FLV / HLS
Audio and video input Video input 8 HDMI
Ranch
Video encoding encoding type H.264 / H.265
H.264 level Baseline / Main / High optional
Encoding frame rate 5-60 adjustable
Key frame interval (frame) 5-300 adjustable
Bit rate (kbit) 32-32000 adjustable
Encoding resolution 1920x1080 / 1680x1056 / 1280x720 / 1024x576 / 850x480 / 720x576 / 720x540 / 720x480 / 720x404 / 704x576 / 640x480 / 640x360 / 608x448 / 544x480 / 480x480 / 480x384 / 480x360 / 480x320 / 480x272 / 480x270 / 400x320 / 400x224 / 352x480 / 352x228 / 320x256 / 320x240 / 320x180 / 240x180 / same as input resolution
Stream control CBR / VBR optional
Stream support RTMP / RTSP / HTTP TS / HTTP FLV / HLS / UDP multicast / RTP multicast
Audio encoding Audio input Digital / analog / mixed
Encoding sampling rate 44100/48000 optional
Coding method AAC / AAC + / AAC ++ / MP3 / MP2 / AC3 optional
Encoding bit rate AAC: 48000-256000 adjustable / AAC +: 24000-48000 adjustable /
AAC ++: 12000-32000 adjustable / MP3: 64000-320000 adjustable /
MP2: 64000-320000 adjustable / AC3: 40,000-640000 adjustable
Digital volume -50 ~ 50 adjustable
RTSP stream uses G711A encoding Disable / Enable Optional
OSD transparency 0-128 adjustable
Type Text / Picture / Scrolling Text
Zone 4 zones to choose from
X coordinate 0-1920
Y coordinate 0-1080
LOGO can upload 16 LOGO options
Font size 8-72
Background color transparent / white / black
Font color RGB color optional
Universal Network Gigabit
Configuration management Configuration management via WEB
ONVIF supports ONVIF to find and browse videos
Power 12V / DC, 2A
<5W
Working temperature -20 ℃ + 60 ℃
Operating humidity <90%, non-condensing
Size 2.7cm x 17.5cm x 11.1cm
Weight 2KG
