Quick Details
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
micro switch
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25℃~+80℃
-
Protection Level:
-
IP40
-
Certificate:
-
CE,Rohs,CQC
-
Color:
-
Black/White/Blue/Others
-
Material:
-
Bakelite/Plastic
-
Lever:
-
Roller or Lever
-
contact Resistance:
-
30 mΩ max
-
Small quantity order:
-
Available
-
Wired terminal:
-
Available
-
Free samples:
-
Available
-
OEM&ODM:
-
Available
-
Product type:
-
micro switch
-
Certification:
-
CE/ROHS
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
micro switch
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25℃~+80℃
-
Protection Level:
-
IP40
-
Certificate:
-
CE,Rohs,CQC
-
Color:
-
Black/White/Blue/Others
-
Material:
-
Bakelite/Plastic
-
Lever:
-
Roller or Lever
-
contact Resistance:
-
30 mΩ max
-
Small quantity order:
-
Available
-
Wired terminal:
-
Available
-
Free samples:
-
Available
-
OEM&ODM:
-
Available
-
Product type:
-
micro switch
-
Certification:
-
CE/ROHS
zippy microswitch Roller Plunger limit switch 5*20mm fuse holder latching button switch
China Limit micro switch manufacturer high quality limit micro switch
Features:
| Rating | 1A~16A 125/250VAC | |
| Practical temperature range | -25 to 85 degrees Celsius | |
| Operating frequency | Mechanical: 60 cycles/min; | |
| Electrical: 25cycles/min | ||
| Insulation resistance | ≥100 MΩ(500Vdc) | |
| Contact resistancy | ≤30 mΩ(initial value) | |
| Test Voltage | Between terminals of the same polarity | AC 1000V,50/60Hz,1min |
| Between current-carrying mental parts and ground, and between each terminal and non-current-carrying metal parts | AC 3750V,50/60Hz,1min | |
| Life | Mechanical≥1,000,000cycles | |
| Electrical≥100,000cycles | ||
| zippy microswitch | ||
1. Adopt thermosetting plastic or thermoplastic; Long electrical and mechanical life.
2. Small contact gap, snap action, high sensitivity and small operating travel;
3. Different kinds of levers;
4. Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus. zippy microswitch
[Tips] All information above is for reference only; Welcome to contact us for detailed description for each item. For more choice, pls . zippy microswitch
Roller Plunger limit switch

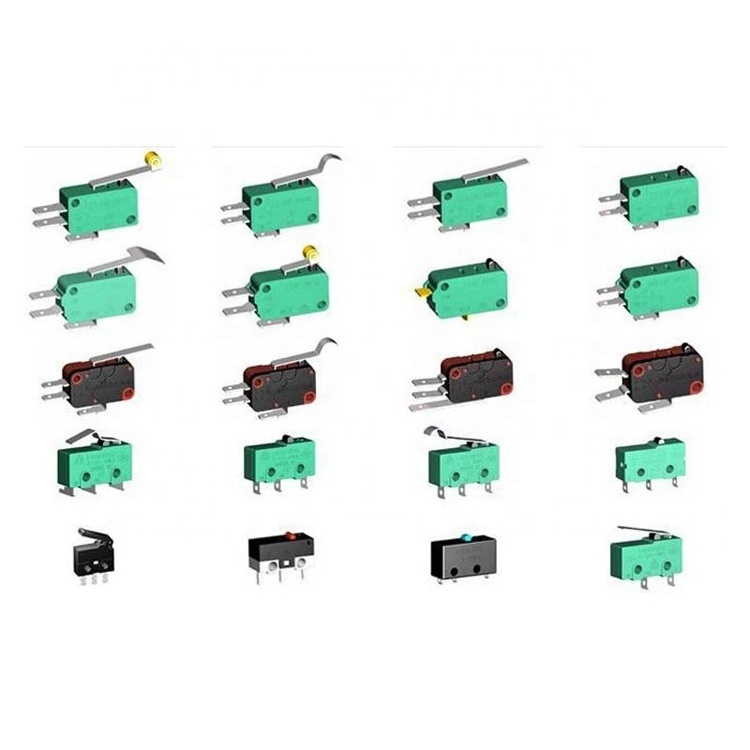

Different kinds of micro switches and other switches from us:
zippy microswitch Roller Plunger limit switch
Packing:
1: Neutral packing : plastic bag for goods+ inner box bubble+ inner box +carton
2: Upon customers' request, but the price is different with neutral packing
3: Carton size: 30*25*30
4: 50 pcs/box,10boxes/carton zippy microswitch Roller Plunger limit switch
Shipping:
1. DHL, EMS, TNT, Fedex, UPS and others international express.
2. By air or by sea. zippy microswitch 5 Roller Plunger limit switch *20mm fuse holder
Payment term:
1.Payment:
Paypal, Western Union, Aliexpress, T/T
2.Port of loading:
Ningbo,Wenzhou or Shanghai Port
3.Discounts:
offered based on order quantities
4.Delivery time:
1-30 days according to order quantities.
zippy microswitch
Roller Plunger limit switch
Feedback:
We WARMLY appreciate your positive feedback. We value our customers so much.If you have any problem, PLEASE FEEL FREE and DON'T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help. $ ords$ Roller Plunger limit switch 5*20mm fuse holder
Why Us?
1. Quality assurance:
All the products will go through lots of tests carefully before dispatch
2. Competitive production capacity
and
fast shipping
3. Manufactuer's price:
Factory direct sale, most competitive price.
zippy microswitch
Roller Plunger limit switch
Our main products:
We manufacture and provide all kind of limit switch and other electronic switches, like limit switch, toggle switch,push button switch,rocker switch,push switch,tact switch,slide switch,fuse holder and so on. l zippy microswitch unger limit switch
