1. You become completely independent from external energy supplies
2. You can combine different energy sources such as PV, wind energy and hydropower
3.You can expand or change your system on a modular basis at any time
- Product Details
- {{item.text}}
Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
tuv ce rohs
-
Warranty:
-
30years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOSHINE
-
Model Number:
-
SY-5KW
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
24H, Depend On Sunshine Duration
-
Product name:
-

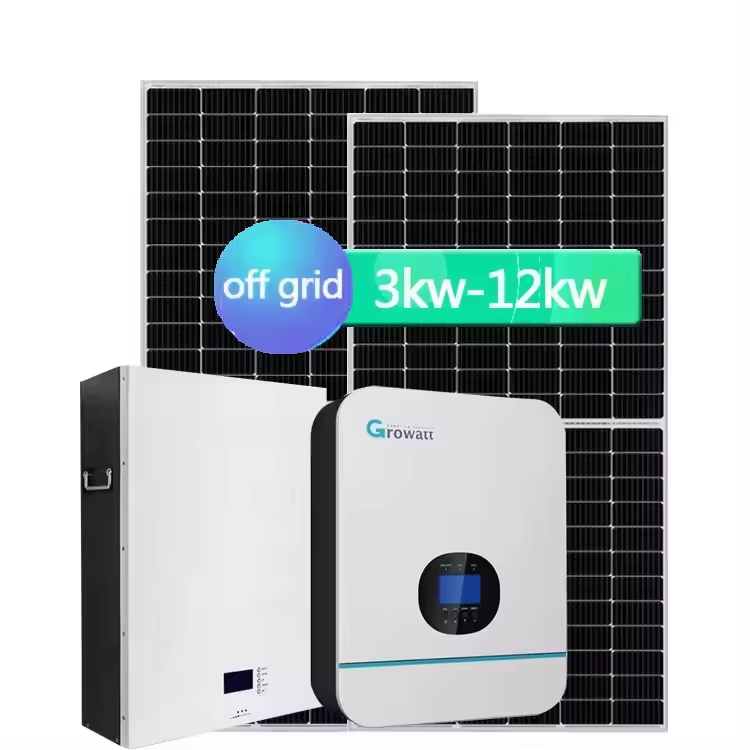

off grid 5kw solar energy system
-
Solar Panel:
-
All Type Solar Panel
-
Grid inverter:
-
Growatt
-
Battery:
-
12V 200AH/4PCS
-
PV Cale:
-
100M
-
Mounting Structure:
-
Flat roof/sloop roof/ground
-
PV combine grid tie control box:
-
AC&DC Switch, Lightning protection
-
Online Monitoring:
-
Wifi/Lan/GPRS
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
tuv ce rohs
-
Warranty:
-
30years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOSHINE
-
Model Number:
-
SY-5KW
-
Output Frequency:
-
50/60HZ
-
Work Time (h):
-
24H, Depend On Sunshine Duration
-
Product name:
-
off grid 5kw solar energy system
-
Solar Panel:
-
All Type Solar Panel
-
Grid inverter:
-
Growatt
-
Battery:
-
12V 200AH/4PCS
-
PV Cale:
-
100M
-
Mounting Structure:
-
Flat roof/sloop roof/ground
-
PV combine grid tie control box:
-
AC&DC Switch, Lightning protection
-
Online Monitoring:
-
Wifi/Lan/GPRS
Hot Sale Off Grid Solar Panels 400 Watt 410W 1Kw Solar Off Grid System 3Kw 5Kw 10Kw 20Kw Solar Power System Complete Hybrid Set
Warranty
Advantages of Off-Grid-Tied Systems.
How it works
System Configuration
How to configure solar off grid power generation system?
Two questions must be clear before buying an off-grid system.
1. What load appliances are you carrying? Determine the inverter power.
2. How much electricity do you use in a day? Determine the battery.
2. How much electricity do you use in a day? Determine the battery.
|
Type
|
HT-S3KW
|
HT-S5KW
|
HT-S10KW
|
||
|
Half Cut Mono 550W Solar Panel
|
6 Pieces
|
8 Pieces
|
20 Pieces
|
||
|
Off-Grid Hybrid Inverter
|
HF4830S60
|
HF4850S80
|
HFP4850S80/2PCS
|
||
|
Battery
|
12V 200AH/4PCS
|
12V 200AH/4PCS
|
12V 200AH/8PCS
|
||
|
DC Cable 4mm2
|
100 meter
|
100 meter
|
100 meter
|
||
|
MC4 Connector
|
10 Pairs
|
10 Pairs
|
10 Pairs
|
||
|
Mounting System
|
Customized Product Based On Installation Roof/Ground
|
|
|
||
|
PV Installation Tools
|
Wire Cable Cutter & Stripper, Disassembly Tool
|
|
|
||
|
Type
|
HT-S15KW
|
HT-S20KW
|
HT-S30KW
|
||
|
Half Cut Mono 550W Solar Panel
|
24 Pieces
|
32 Pieces
|
48 Pieces
|
||
|
Off-Grid Hybrid Inverter
|
HFP4850S80/3PCS
|
HFP4850S80/4PCS
|
HFP4850S80/6PCS
|
||
|
Battery
|
12V 200AH/12PCS
|
12V 200AH/16PCS
|
12V 200AH/20PCS
|
||
|
DC Cable 4mm2
|
200 meter
|
200 meter
|
200 meter
|
||
|
Mounting System
|
Customized Product Based On Installation Roof/Ground
|
|
|
||
|
PV Installation Tools
|
Wire Cable Cutter & Stripper, Disassembly Tool
|
|
|
||
Products Description
Half Cut Mono 550W Solar Panel
Peak Power Watts: 550W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg
All-in-one solar charger inverter
All-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave
output.
Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sinewave.
Advanced MPPT technology with an efficiency of 99.9%.
output.
Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sinewave.
Advanced MPPT technology with an efficiency of 99.9%.
Monitoring System
Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation,
traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
Deep Cycle Gel VRLA Battery
DG (Deep Cycle GEL ) series is pure GEL battery with 20 years flfloating design life, it is ideal for standby or frequent cyclic
discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the DG series offers excellent recovery capability after deep discharge under frequent cyclic discharge use, and can deliver 450 cycles
at 100% DOD
discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the DG series offers excellent recovery capability after deep discharge under frequent cyclic discharge use, and can deliver 450 cycles
at 100% DOD
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps: 35,40,45,50mm L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 OptionalRated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
