Quick Details
-
Product Name:
-
Warehouse motorized slab transfer trolley with remote control
-
Color:
-
Customized
-
Key Words:
-
slab transfer trolley
-
Capacity:
-
1-500 ton for slab transfer trolley
-
Certificates:
-
CE ISO SASO
-
Size:
-
Customized Size
-
Running speed:
-
0-20m/min
-
Power supply:
-
Cable reel power
-
Advantage:
-
Low cost with professional manufacturing
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TOPLD
-
Product Name:
-
Warehouse motorized slab transfer trolley with remote control
-
Color:
-
Customized
-
Key Words:
-
slab transfer trolley
-
Capacity:
-
1-500 ton for slab transfer trolley
-
Certificates:
-
CE ISO SASO
-
Size:
-
Customized Size
-
Running speed:
-
0-20m/min
-
Power supply:
-
Cable reel power
-
Advantage:
-
Low cost with professional manufacturing

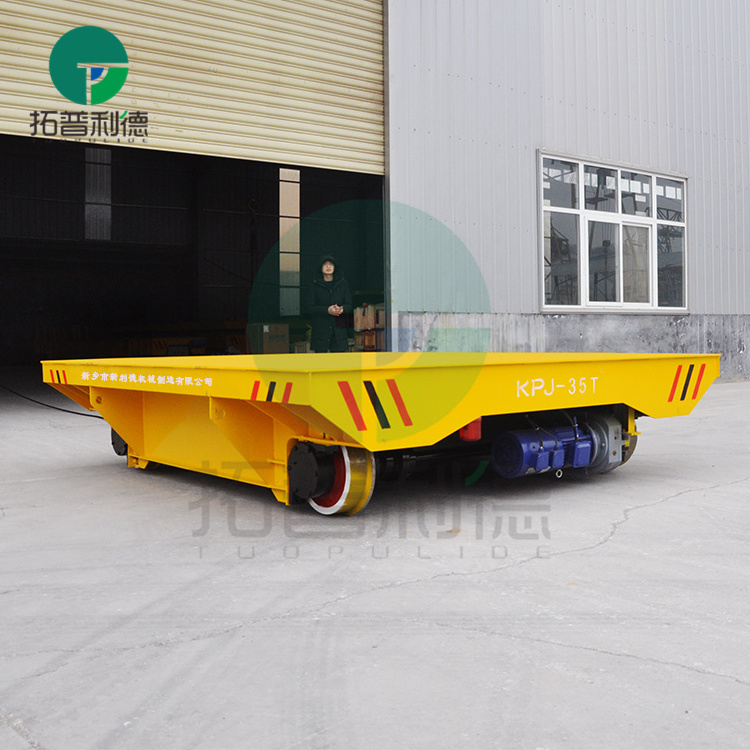

Warehouse motorized slab transfer trolley with remote control
Warehouse motorized slab transfer trolley with remote control, it is an electric transfer trolley powered by cable reel which is installed at the bottom of the slab transfer trolley. It is designed for transporting cargoes or equipment from one bay to another in factory, from indoor to outdoor. It has widely applied in the industry transportation field, our company can designed the trolley to meet our customers' demand.
The slab transfer trolley is the cable reel powered, the slab transfer trolley gets power AC 380v through the device of cable reel, and the motor is controlled by the power through AC control system that make it to start, stop, go forward, backward, adjust the speed and so on.
We adopt the magnetic coupling cable reel, it can make sure that there is no force on the cable and the cable can be wound and released evenly. If it is used in short distance transportation, it is a better choice without limited time. Of course, our product includers different power, the proper solution will be recommended to you after learning your requirements.
Warehouse motorized slab transfer trolley with remote control
- The slab transfer trolley can run on the straight railways to carry many material, workpiece, workpiece;
- The slab transfer trolley can be applied in many occasions, such as easy explosion, easy corrasion, high temperature;
- AC motor, simple structure, not limited for the using time;
- This kinds of slab transfer trolley is powered by cable reel, so there is not strict requirement for the construction of the railway, and the running distance should accord to the length of the cable.
- Cost is not high, easy to operate and maintenance;
- The slab transfer trolleys are customized as per your true demand.
| ------All customized for you | |
|
Warehouse motorized slab transfer trolley with remote control
|
Model
|
KPJ-2T | KPJ-5T | KPJ -10T | KPJ -20T | KPJ -30T | KPJ -50T | KPJ -100T | KPJ -150T | |
| Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 | |
| Table size | length(L) | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 600 | 650 | 850 | 1200 | |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 0.8 | 1.5 | 1.5 | 2.5 | 4 | 5.5 | 11 | 15 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.5 | 3.5 | 4 | 5.6 | 6.5 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 | QU100 | |
Warehouse motorized slab transfer trolley with remote control
The slab transfer trolley is suitable for various occasions, for example, steel field, forged field, mold field, heavy industrial, light industrial, paper making field, construction machinery maker, shipyard, port cargo yard, warehouse, assembly line, spray booth, air and space etc.
The slab transfer trolley has been widely used with hot market. Any interests and problems, please contact with us in any time.We will try our best to help you. Hope rich experience can help you well.
