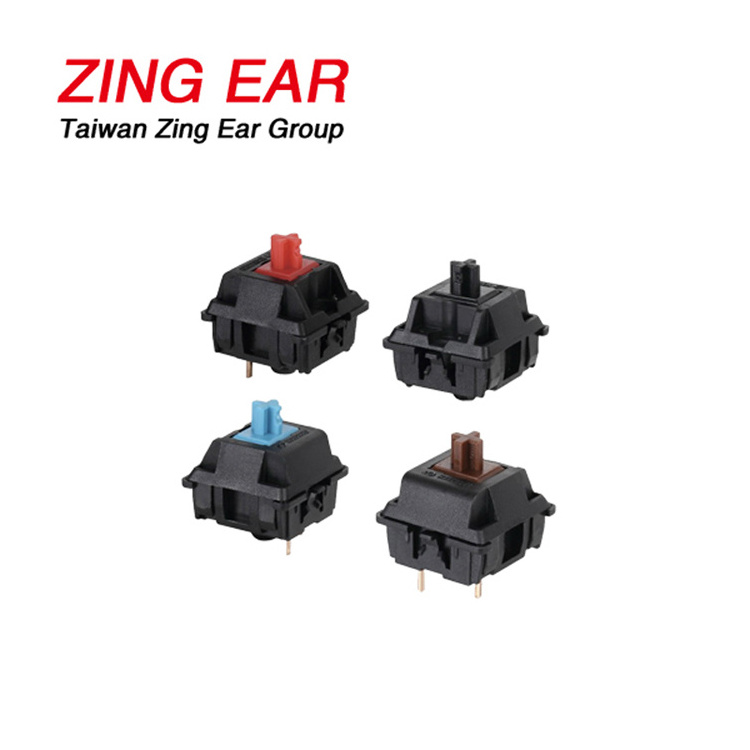

CE RoHS 4mm Travel Push Button Small Mechanical Mouse Keyboard Switch

CE RoHS 4mm Travel Push Button Small Mechanical Mouse Keyboard Switch

FOB Reference Price: Get Latest Price

≥5000 Pieces

US $0.16

≥10000 Pieces

US $0.14

≥100000 Pieces

US $0.12

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ZINGEAR

Model Number:: GT02A2ANW

IP level:: IP00

Rating:: 12VDC/AC max. 10mA AC/DC max

Operating Force:: See Detail Spec

Pre-travel:: 2.0±0.6mm

Total Trave:: 4.0±0.4mm

Mechanical Life:: Over 80,000,000 cycles

Operating Temperature Range:: -40℃~ + 80℃

Ambient Humidity:: ≤85%RH max

Application:: Gaming keyboard

Product Name:: Keyboard Switch

Quick Details

Protection Level:: 0

Max. Current:: 10A

Max. Voltage:: 12VDC

Place of Origin:: Guangdong, China

Brand Name:: ZINGEAR

Model Number:: GT02A2ANW

IP level:: IP00

Rating:: 12VDC/AC max. 10mA AC/DC max

Operating Force:: See Detail Spec

Pre-travel:: 2.0±0.6mm

Total Trave:: 4.0±0.4mm

Mechanical Life:: Over 80,000,000 cycles

Operating Temperature Range:: -40℃~ + 80℃

Ambient Humidity:: ≤85%RH max

Application:: Gaming keyboard

Product Name:: Keyboard Switch

GT Detector Keyboard Switch

* Features

- Tight Configuration,Small Contact Gap , Snap Action
- Long Life, High Reliability
- Global Safety Approvals
- Variety of Terminals
- Wide Range Operating Force
- Wide Range Temperature Grade
- With Optional PTI Grade
- Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,
Communication Equipments.

Products Description

Application
Access Control System	Electronic Equipments	Computer Keyboard
Automatic Machines	Communication Equipments	Gaming keyboard

Product Parameters

Electrical Characteristics	Rating		12VDC/AC max. 10mA AC/DC max
		Contact Resitance		200MΩmax (25MΩtypical)(initial value)
		Insulation Resistance		100MΩMin
		Voltage Resistence		AC 100V (50-60Hz) 1Minute
		Eletrical life		Over 50,000,000 cycles (Load)
		Bounce Time		400mm/s 5msec (operation speed at 400mm/spec)
Parameters	Operating Force		See Detail Spec
		Pre-travel		2.0±0.6mm
		Total Trave		4.0±0.4mm
		Mechanical Life		Over 80,000,000 cycles (No Load)
		Operating Temperature Range		-40℃~ + 80℃
		Ambient Humidity		≤85%RH max

Product size
