Quick Details
-
Model Number:
-
XC-9615
-
Dimension:
-
283.1x269x224.3mm
-
Power Supply Mode:
-
POE Power
-
SNR:
-
≥80dB
-
Output Power:
-
≤65W
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
2KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/2.7A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
97dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
IP Rating:
-
IP65
Quick Details
-
Warranty:
-
2 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Spon
-
Model Number:
-
XC-9615
-
Dimension:
-
283.1x269x224.3mm
-
Power Supply Mode:
-
POE Power
-
SNR:
-
≥80dB
-
Output Power:
-
≤65W
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
2KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/2.7A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
97dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
IP Rating:
-
IP65
Product Parameters

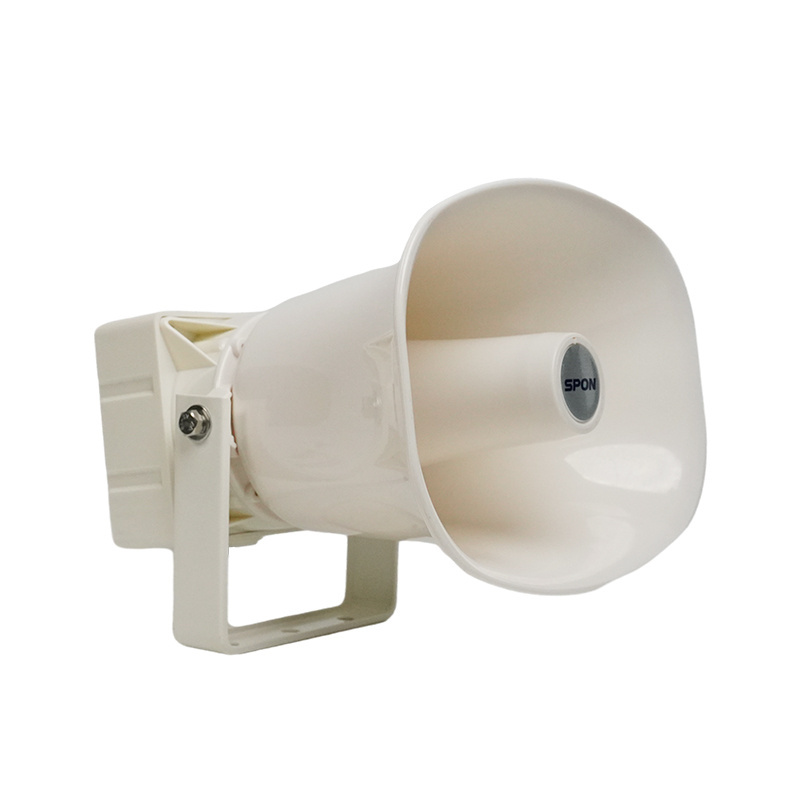

IP POE Horn Speaker
The IP Horn Speaker ensures quick, clear, and adaptable communication, making it simple to deploy and manage messages, notifications, and announcements across various settings.
Ideal for voice announcements and emergency notification alerting in warehouse, factory plant, sea port, outdoor parking lot, bus station, school playground and other outdoor public areas.
Swift Startup:
Equipped with a high-speed dual-core (ARM+DSP) chip, it starts up in ≤1 second for rapid communication.
Quality Sound:
Contains a high-fidelity speaker and stereo Class D power amplifier for clear audio output.
Easy Maintenance:
Features a built-in speaker loop detection function, enabling remote monitoring of speaker status for simplified upkeep.
Flexible Power Options:
Supports both DC and POE (IEEE802.3at) power supplies, providing versatile installation choices.
SIP Protocol:
Supports globally recognized SIP protocol for seamless integration into communication systems.
Easy Connectivity:
Utilizes a standard RJ45 network interface, making it compatible with Ethernet or POE switch ports. Supports cross-segment and cross-r outer connections.
Weatherproof Design:
Built to withstand outdoor conditions with an IP65 weatherproof rating.
Dynamic Volume Control:
Unique "dynamic volume control" feature automatically adjusts output volume based on ambient noise levels.
Emergency Notifications:
Stores specific ringtone files on an FTP server, triggering automatic playback on speaker when a relay input is activated, streamlining emergency alerts.
VoIP Integration:
Works with VoIP telephone systems, enabling live voice announcements for efficient communication.
Powerful Management:
Integrates with SPON® DA-6000 audio management software for features like live and scheduled voice announcements, background music, emergency alerts, and zone paging.
|
Power Supply:
|
DC 24V/2.7A or PoE (IEEE802.3af)
|
|
|
|
|||
|
Power Consumption:
|
≤65W
|
|
|
|
|||
|
Rated Power Output:
|
20W (at DC 24V/2.7A powered)
15W (at PoE powered) |
|
|
|
|||
|
Network Protocol:
|
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
|
|
|
|
|||
|
Audio Codec:
|
MP3/PCM/ADPCM/G711.a/G711.u/G729
|
|
|
|
|||
|
Maximum SPL:
|
97dB±3dB
|
|
|
|
|||
|
S/N (Signal-to-Noise) Ratio
|
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ，60Hz～18KHz
|
|
|
|
|||
|
Frequency Response:
|
100Hz-18kHz
|
|
|
|
|||
|
Interface:
|
1×RJ45 Ethernet Port, 1×Power Input
|
|
|
|
|||
|
IP Rating:
|
IP65
|
|
|
|
|||
|
Dimensions:
|
283.1×269×224.3mm
|
|
|
|
|||
|
Weight:
|
2.0kg
|
|
|
|
|||
|
Standard Accessories:
|
1×2-Pin Terminal Block Connector, 1×Installation Manual
|
|
|
|
|||
|
Optional Accessories:
|
DC 24V/2.7A Power Adapter
IEC C13 Power Cord (US/EU/UK/AU) |
|
|
|
|||
Connection Topology
Dimensional Drawing
