Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
Yinjia
-
Model Number:
-
CM50-200A
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
20HP
-
Cable Length:
-
YE-160/L150
-
Outlet Size:
-
50 Inch
-
Power:
-
15KW
-
motor:
-
100% copper winding
-
Product name:
-

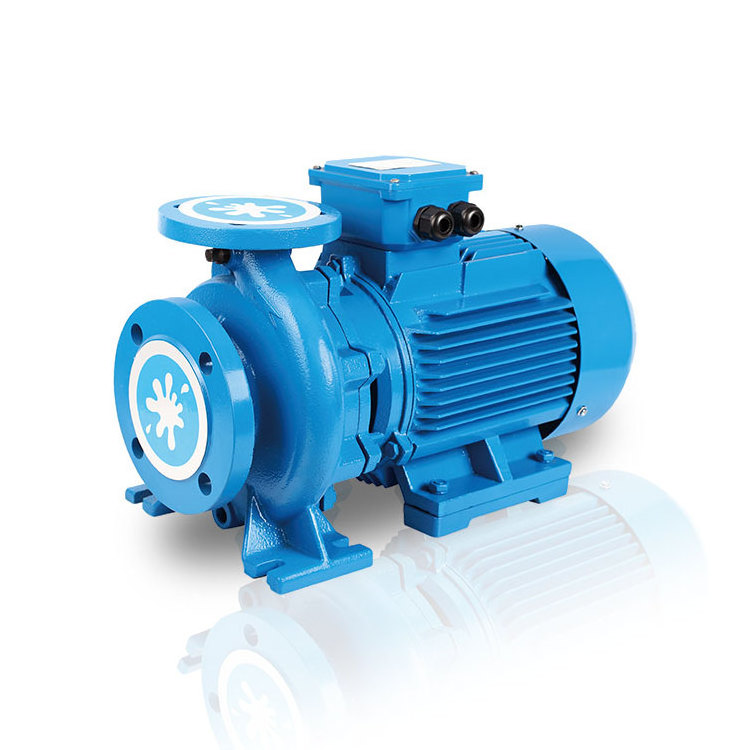

Industrial Centrifugal Pump For Water Supplies
-
Fuel:
-
AC Electric Induction Motor
-
Speed:
-
2900rpm
-
Mechanical Seal:
-
Carbon/SiC/NBR/SUS304
-
Impeller:
-
Casting Iron/S.S/Brass
-
Motor shaft:
-
AISI 304 welded shaft
-
Max head:
-
60M
-
Max Flow:
-
1400L/MIN
-
MOQ:
-
50Pcs
-
Bearing:
-
C&U
Quick Details
-
Application:
-
Automotive Industry, Commercial Buildings, Developing World Water Solutions, Drinking water treatment, Family Homes, Irrigation and Agriculture, Washing and Cleaning, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
380V660V50HZ
-
Warranty:
-
1 years
-
Brand Name:
-
Yinjia
-
Model Number:
-
CM50-200A
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
20HP
-
Cable Length:
-
YE-160/L150
-
Outlet Size:
-
50 Inch
-
Power:
-
15KW
-
motor:
-
100% copper winding
-
Product name:
-
Industrial Centrifugal Pump For Water Supplies
-
Fuel:
-
AC Electric Induction Motor
-
Speed:
-
2900rpm
-
Mechanical Seal:
-
Carbon/SiC/NBR/SUS304
-
Impeller:
-
Casting Iron/S.S/Brass
-
Motor shaft:
-
AISI 304 welded shaft
-
Max head:
-
60M
-
Max Flow:
-
1400L/MIN
-
MOQ:
-
50Pcs
-
Bearing:
-
C&U
|
APPLICATION
-
To be used for a wide variety of applications in civil, agricultural, industrial or general plant uses.
-Water Supply, spray or flowing irrigation, autoclave feed, high pressure system, heating, conditioning and any other general service requiring transfer of clean liquids.
|
|
|
|
|
||||
|
OPERATING LIMITS
-
Temperature of liquid from -10℃ to +120℃
-Ambient temperature from -10℃ to +40℃
-Max operating pressure: 10 bar
|
|
|
PERFORMANCE RANGE
-Speed : 1450/2900 rpm
-Max.Flow :216 m³/h
-Max.Head :100 mt.
-Power range: 1.5-22KW
-Inlet/Outlet: 50*32mm-100*80mm
|
|
||||
|
DESIGN FEATURES
-
Pump body/motor bracket: cast iron
-Impeller: cast iron
-Bearing: C&U
-100% copper winding
-Mechanical seal：Carbon/SiC/NBR/SUS304
-Motor shaft:AISI 304 welded shaft
|
|
|
SPECIAL FEATURES ON REQUEST
-
Anti-rust treatment for casting
-AISI 304 pump body
-AISI 304 or Brass impeller
-AISI 1045 motor shaft
-Other voltage and frequeNcy
-Insulation class F
|
|
||||
|
MOTOR
-2-pole induction motor
-Insulation class: B
-Protection :IP44
-Continuous duty: S1
|
|
|
|
|
||||
Performance
Fujian New Yinjia Pump Co.,Ltd established in 1990, has specialized in various of surface clean water pumps. Covering an area of 66,000m², with 250 employees, monthly capacity 60,000pcs. Thanks to advanced production equipment and strict QC system, we keep providing high quality pumps with factory direct price, and support 1 year guarantee. Welcome to inquiry Yinjia pump, always at your service!
FAQ
Q
: Are you a factory or trading company?
A
: We are a professional surface water pump manufacturer since 1990, located in Fuan, Fujian, China.
Q
: Do you provide OEM/ODM service?
A
: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties.
Q
: What is the feature of your products ?
A
: Our products have 3 obviously features: quite, powerful, heavy duty.
Q
: What is your MOQ ?
A
: 100 pcs per model for factory brand and package.
300 pcs per model for OEM brand and package.
Q
: How do you control the quality ?
A
: All production process strict to follow ISO9001 system, QC team check the quality during the production and do the test before each shipment.
Q
: What is your delivery time?
A
: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
