Quick Details
-
Model Number:
-
KLS7-013
-
Max. Current:
-
6(4)A 250VAC /10A 125V0AC
-
Mechanical Life:
-
over 30000 Cycles
-
Certificate:
-
CE ROHS
-
Model number:
-
selectable
-
Electrical life:
-
over 10000 Cycles
Quick Details
-
Max. Voltage:
-
6(4)A 250VAC /10A 125V0AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KLS
-
Model Number:
-
KLS7-013
-
Max. Current:
-
6(4)A 250VAC /10A 125V0AC
-
Mechanical Life:
-
over 30000 Cycles
-
Certificate:
-
CE ROHS
-
Model number:
-
selectable
-
Electrical life:
-
over 10000 Cycles
Dear valued customer:
KLS ELECTRONIC is a wholesale manufacture and full range components supplier. we
cooperate with many big distributors in many countries. sorry, our order have limit for
USD500/order,or will add extra documents cost. sample order welcome.Thank you!

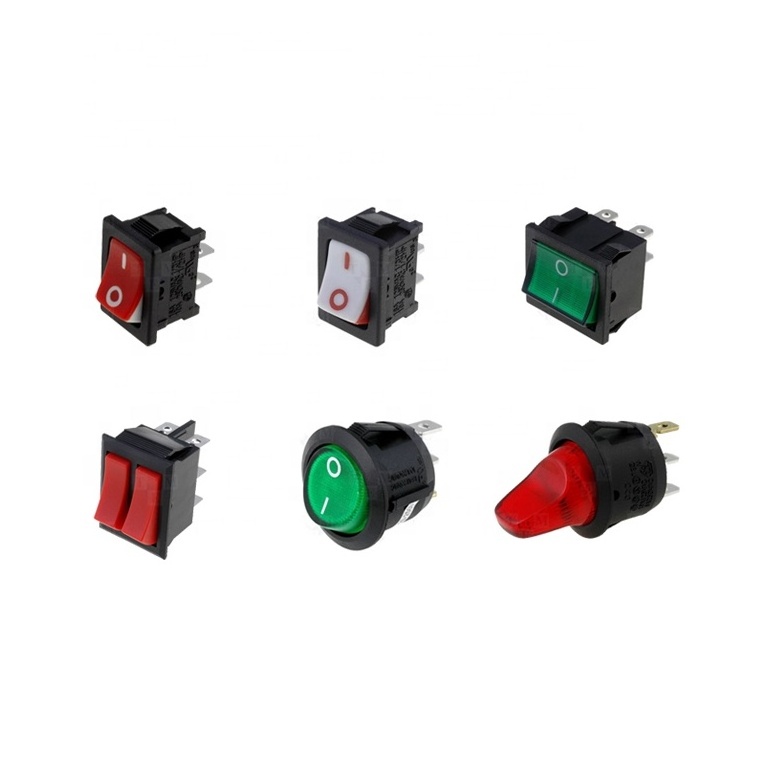

Rocker switch KLS7-013
|
MATERIAL
1.Housing: Nylon 66
2.Rocker: PC & PA66
3.Contacts: Silver Alloy
4.Terminal: Brass Silver Plated
5.Lamp: Neon Lamp,Tungsten Lamp
6.Spring: SWP,SUS
7.Movable Arm: Brass Silver Plated
ELECTRICAL 1.Electrical Rating: 6(4)A 250VAC /10A 125V0AC
2.Mechanical life:Over 30000 Cycles
3.Electrical life: Over 10000 Cycles
4.Contact Resistance: ≤50mΩ
5.Insulation Resistance: ≥100MΩ
6.High Voltage Resistance:>1500V 1 min
7.Ambient Temperature: Terminal Side -20ºC~+85ºC;
Actuating Side -20ºC~+55ºC
8.Storage Temperature: -30ºC~+80ºC Max
9.Atmospheric Humidity: Max 85%
10.Actuating force: 4~8N(depends on different switch function)
11.Flammability: UL94 V-2
12.Temperature rise at the terminal: Max 30ºC (Ul1054)
13.Solder ability of terminal: Max 350ºC 3S
|
