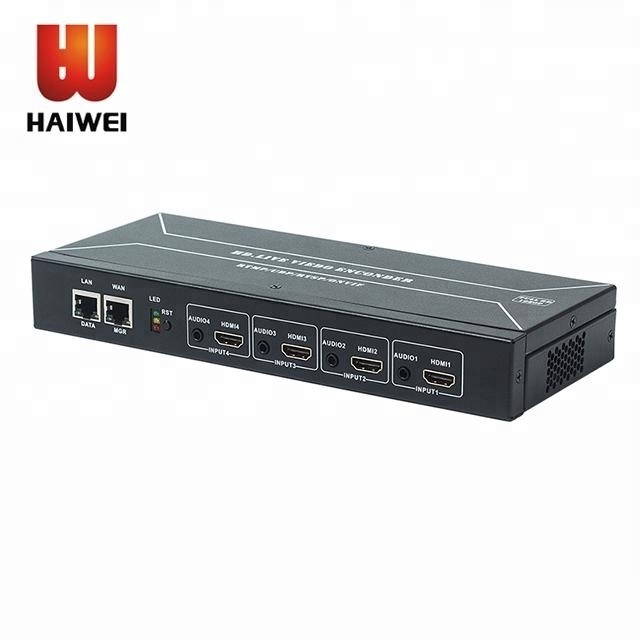

Cheap 4 channel HDMI over IP Encoder Portable Dual Ethernet Port HD m3u8 IPTV Video Encoder

Cheap 4 channel HDMI over IP Encoder Portable Dual Ethernet Port HD m3u8 IPTV Video Encoder

FOB Reference Price: Get Latest Price

≥1 Pieces

US $280

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Input:: HDMI

Output:: IP Output

Application:: IPTV Headend Systems

Product name:: HD Encoder

Protocol:: HTTP/RTSP//RTMP/UDP/O NVIF2.4

Video encoding:: H.264/AVC

Resolution:: 1080P

Type:: Indoor

Audio encoding:: AAC MP3 MP2 G.711

Nature:: Live Streaming IPTV Video Encoder

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Haiwei

Model Number:: U520

Input:: HDMI

Output:: IP Output

Application:: IPTV Headend Systems

Product name:: HD Encoder

Protocol:: HTTP/RTSP//RTMP/UDP/O NVIF2.4

Video encoding:: H.264/AVC

Resolution:: 1080P

Type:: Indoor

Audio encoding:: AAC MP3 MP2 G.711

Nature:: Live Streaming IPTV Video Encoder

Products Description

4 HDMI FHD ENCODER IPTV

Professional-Class Live Broadcast Encoder

Why Choose Haiwei ?

Haiwei is leading video streaming solutions provider in China

8 years experience in R&D and production.

Delivery fast as source manufacturer.

SDK offered for integrated project.

Certifications:CE,FCC,KC,ROHS,CCC.etc.

OEM supported.

In 2018, Haiwei obtained the “high-technology enterprise certification”（National certification）.

Product Parameter

4*Line in audio

Smart encoding,1920x1080p@60

Bit Control: CBR/VBR 16KBIT/S ~ 12MBIT/S

Optional HDCP function , support MP2

1*IP with 4 TS streams+4 2'nd streams+4 HLS streams

Two fans for heat dissipation

Transmission & Management

Simultaneous data transmission and network management

Gigabit port: data transmission

100M port: Management

Support B frame

FHD 1080P Live Video Quality

Real-time 720P/1080P@60 frame hd uncompressed picture quality, even complex, fast moving video picture quality, can easily deal with.At the same time, the software can realize recording and support HDMI video signals output by cameras, SLRS, drones, DV, medical devices, set-top boxes and other devices.

Support Most Live Streaming Platforms

Multi-protocol, multi-platform, all-round live marketing

Support HLS/RTSP/RTP/RTMP/P2P,DHCP, O NVIF, HTTP, UDP unicast, multicast and other protocols, as long as the live broadcast platform, support the above protocol, you can be broadcast

Application

Hotel IPTV System

Digital TV Broadcasting System

IPTV & OTT system

Internet TV

Digital Signage Project

Remote Video Conference

Video Monitoring

Live Streaming

Digital TV Broadcasting System

Digital TV Programs Transmission

Head-end system of Digital TV branch network

CATV Broadcasting system

Edge side of Digital TV backbone network

Connection Schematic Diagram

OSD（On-Screen Display）

About Haiwei

Haiwei is leading video streaming solutions provider in China, mainly for broadcast, webcaster, Multimedia platform, sports, IPTV operator, IPTV project for Hotel/ enterprises, military project, and city's construction. Haiwei provide SDK for integration project, can be tailored to each customer's unique market needs, and developed "IP finder", "Multi devices manager", "APP for smartphone" for different use.
