- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YISHEN
-
Voltage:
-
380v or customized
-
Dimension(L*W*H):
-
1350*1250*1450 mm
-
Weight (KG):
-
800 kg
-
Name:
-

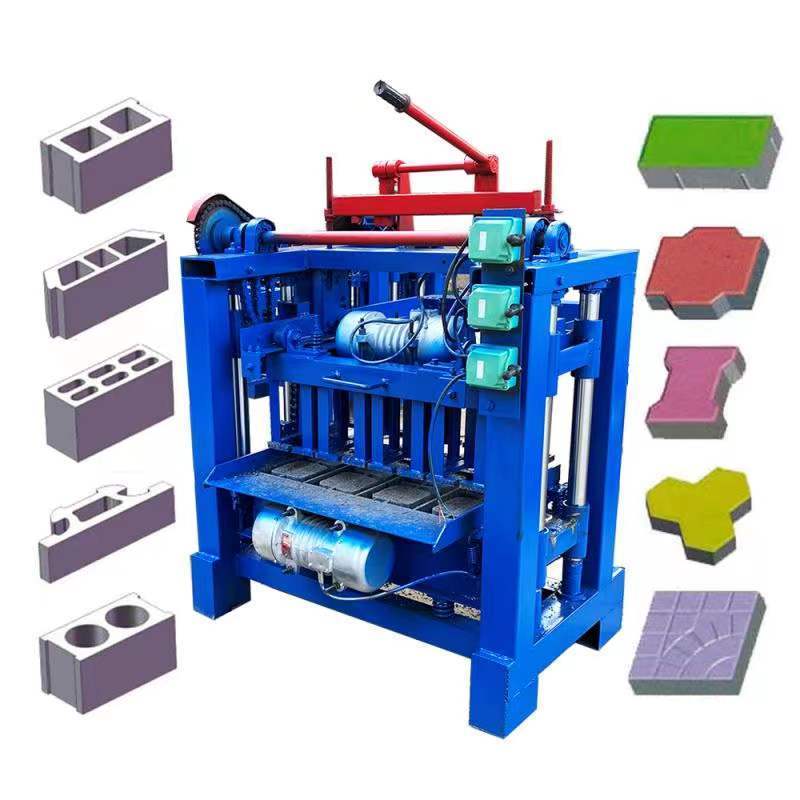

Low price manual concrete cement solid brick making machine
-
Keywords:
-
Brick Making Mahcine
-
Product Name:
-
Manual Block Making Machine
-
Block Type:
-
Hollow Concrete Brick Machine
-
Raw material:
-
Sand
-
Block material:
-
Stone Ect
-
Color:
-
Customer's Request
-
Weight:
-
800 KG
-
Machine Type:
-
Mobile Hollow Block Machine
-
Model:
-
QTJ4-35
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YISHEN
-
Voltage:
-
380v or customized
-
Dimension(L*W*H):
-
1350*1250*1450 mm
-
Weight (KG):
-
800 kg
-
Name:
-
Low price manual concrete cement solid brick making machine
-
Keywords:
-
Brick Making Mahcine
-
Product Name:
-
Manual Block Making Machine
-
Block Type:
-
Hollow Concrete Brick Machine
-
Raw material:
-
Sand
-
Block material:
-
Stone Ect
-
Color:
-
Customer's Request
-
Weight:
-
800 KG
-
Machine Type:
-
Mobile Hollow Block Machine
-
Model:
-
QTJ4-35
Products Description
Features of concrete block molding machine brick making
1. The machine is designed with reasonable structure and advanced technology. Four vertical axis guidance, upper die push and
pull, automatic scraping, reducer lifting mode. Use super vibrating motor to realize vertical directional vibration. The blocks
produced are of good quality, high density and high strength.
2. The operation is convenient and flexible, and the performance is comparable to large-scale equipment.
3. The production process is simple, the blocks are naturally maintained, and energy is saved.
pull, automatic scraping, reducer lifting mode. Use super vibrating motor to realize vertical directional vibration. The blocks
produced are of good quality, high density and high strength.
2. The operation is convenient and flexible, and the performance is comparable to large-scale equipment.
3. The production process is simple, the blocks are naturally maintained, and energy is saved.
Product Paramenters
|
Model
|
QTJ4-35
|
Voltage
|
220V or customize as your need
|
||
|
Operation
|
1-2 person
|
Power
|
4.8kw
|
||
|
Moulding Pressure
|
1.5t
|
Capacity
|
2800-3500pcs/8h
|
||
|
Weight
|
800kg
|
Dimension
|
1370*1240*1600mm
|
||
|
Normal Brick Size
|
400*200*200mm 4pcs/time
390*390*190mm 4pcs/time 390*150*190mm 5pcs/time 390*120*190mm 6pcs/time 240*115*53mm 12pcs/time The mold can be widened or heightened according to customer requirements |
|
|
||
