Quick Details
Quick Details
-
Place of Origin:
-
China
-
Model:
-
LAM1430/LAM1430SA/
Details Images
Features
●

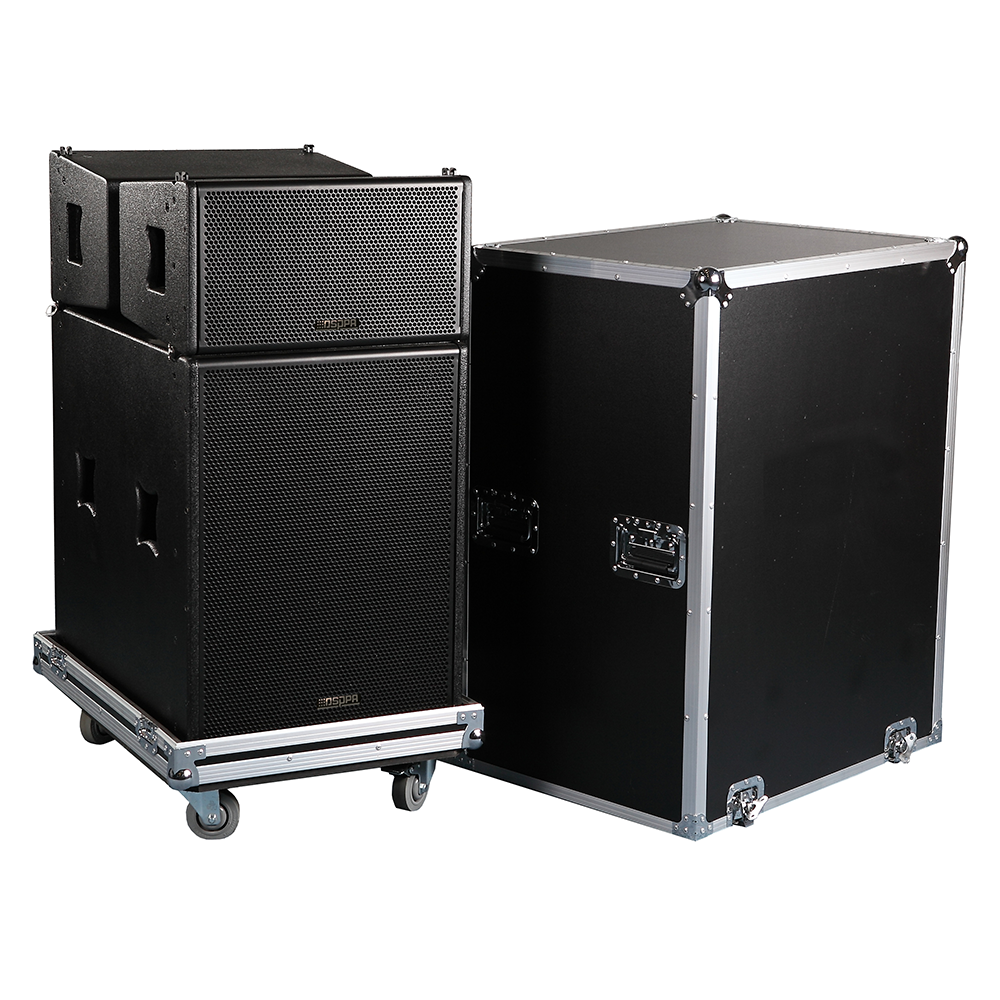

A small line array speaker system with built-in processor (DSP).
●
Small in size, beautiful in shape, equipped with special flight case, with strong mobility.
●
With integrated design and installation, easy to use.
●
Adopt wear-resistant surface treatment, with all-aluminum hanging parts.
●
The system is suitable for small mobile performances, stadiums, theaters, bars, banquet halls and other places.
Product Paramenters
|
Model
|
LAM1430
|
|
Unit Structure
|
10”MF×1, 1.4”HF×2
|
|
Frequency Response
|
65Hz-18kHz
|
|
Sensitivity
|
MF: 96±2dB / HF: 104±2dB
|
|
MAX. SPL.
|
MF: 120±2dB / HF: 126±2dB
|
|
Continuous Power (AES)
|
MF: 350W / HF:120W
|
|
Rated Impedance
|
MF: 4Ω / HF: 16Ω
|
|
Single Speaker Directivity (H×V)
|
100°×10°
|
|
Color
|
Black
|
|
Dimensions (W×H×D)
|
500mm×296mm×342mm
|
|
Weight
|
20kg
|
|
Model
|
LAM1430SA
|
|
Unit Structure
|
18" woofer ×1
|
|
Frequency Response
|
38Hz-220Hz
|
|
Speaker Sensitivity (converted to 1m, 1W)
|
99±2dB
|
|
MAX. SPL.
|
127±2dB
|
|
Active Signal Input Impedance
|
20 kΩ
|
|
Amplifier Power
|
1500W+900W+900W@4Ω
|
|
Continuous Power
|
800W (AES)
|
|
Amplifier Input Sensitivity
|
0.775V
|
|
Amplifier Distortion
|
＜0.05%
|
|
Working Voltage
|
AC220V~50/60Hz
|
|
Color
|
Black
|
|
Dimensions (W×H×D)
|
500mm×650mm×705mm
|
|
Weight
|
48kg
|
