Quick Details
-
Brand Name:
-
Dingbo
-
Model Number:
-
DBCZ
-
Voltage:
-
380V
-
Power:
-
18.5KW
-
Dimension(L*W*H):
-
11000mm*1000mm*1500mm
-
Weight:
-
7 tons
-
Warranty:
-
One year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
up to you
-
Material of main machine:
-
steel
-
The thickness of coil:
-
2.5~3.0mm
-
Certification:
-
CE and SGS
Quick Details
-
Work Pressure:
-
20MPa
-
Production Capacity:
-
10-15m/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dingbo
-
Model Number:
-
DBCZ
-
Voltage:
-
380V
-
Power:
-
18.5KW
-
Dimension(L*W*H):
-
11000mm*1000mm*1500mm
-
Weight:
-
7 tons
-
Warranty:
-
One year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
up to you
-
Material of main machine:
-
steel
-
The thickness of coil:
-
2.5~3.0mm
-
Certification:
-
CE and SGS
Hot selling Z shaped steel purlin cold roll forming machine
The profile drawing:
Working flow:
Uncoiler—Feeding—Leveling—Punching--roll forming---hydraulic cut to length—output table
Main specification:
Manual uncoiler
1) Capacity: 5ton
2) Feeding width: MAX 600mm
3) Expanding range: 460-520mm
Main roll forming system
1) Main motor power: 18.5kw
2) Drive: Chain
3) Main shaft dia: 85mm material: 45#forge steel and quenched
4) Roller material: Gcr15 bearing steel forge steel and quench treatment hardness 58-62, chrome coated 0.05mm
5) Roll station: 16 groups
6) Raw material: 2.5-3.0mm
7) Width of purlin: 100-300mm adjustable
8) Working speed: 10m--15m/min(Exclude cutting time)
9) Length Tolerance: ±1.5mm
10) Weight of machine: about 7ton
11) Size of machine: About 11000×1000×1500mm L x W x H
12) Color of machine: depend on customer
13) Coder: Omron
14) Control: PLC Panasonic, made in Japan. 380V 50HZ
15) Computer operating panel: touching screen
16) Punching: Hydraulic punching before roll forming
17) Cutting: Hydraulic cutting after roll forming
18) Cutting when reach the set length.
19) Hydraulic power: 5.5KW
20) Blade material: Cr12,quenched 58°-62°
21) Working pressure:20mpa
Cutting tolerance: +/- 1.5mm
Equipment list:
|
NO. |
Product |
QTY |
|
1 |
5T Manual uncoiler |
1 |
|
2 |
Main Roll forming(cutting, PLC computer, Hydraulic system) |
1 |
|
3 |
Output table |
2 |

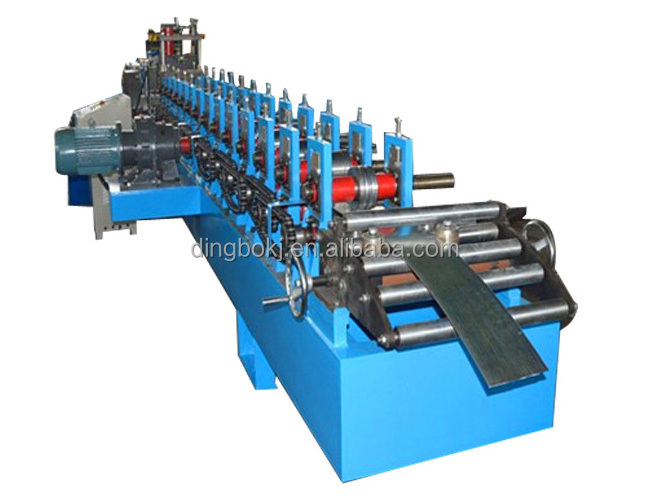

Machine pictures
Product pictures
