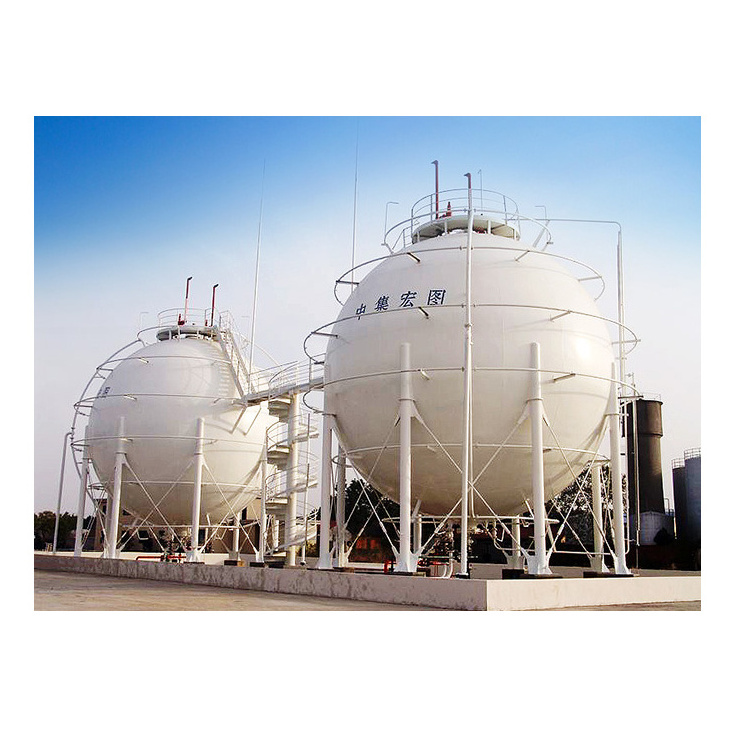

400CBM lpg Propane spherical storage tanks

400CBM lpg Propane spherical storage tanks

FOB Reference Price: Get Latest Price

≥1 Sets

US $200000

≥10 Sets

US $180000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 9200mm*26mm

Capacity:: 400m3

Weight:: 60T

After-sales Service Provided:: Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Product name:: methanol lager spherical tanks

Certification:: ASME BV

Type:: spherical

Material:: Q345R

Working pressure:: 1.77MPa

Process Fluid:: LPG propane

Design Temperature:: 50℃

Full-load weight:: 470T

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: None

Quick Details

Max Working Pressure(MPa):: 1.8 MPa

Place of Origin:: Hubei, China

Brand Name:: CIMC HONTO

Dimension(L*W*H):: 9200mm*26mm

Capacity:: 400m3

Weight:: 60T

After-sales Service Provided:: Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Product name:: methanol lager spherical tanks

Certification:: ASME BV

Type:: spherical

Material:: Q345R

Working pressure:: 1.77MPa

Process Fluid:: LPG propane

Design Temperature:: 50℃

Full-load weight:: 470T

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: None

Products Description

HONGTU has the design and fabrication capability of large ASME codes spherical tanks and owns 5 sets of large hydraulic pressing machine. The maximum pressing capacity for spherical shell plate is 80mm. Besides, HONGTU can also construct the spherical tanks made of special steel such as stainless steel, stainless steel clad carbon steel plate, 9Ni steel and etc., and owns relevant project references.

Product Parameters

Design Code: ASME BPVC VIII-1/VIII-2, GB/T 12337, JB/T 4732 Vessel Capacity: 50m³~10000m³ Liquid Gas Spherical Tank, 200m³~20000m³ Gas Spherical Tank. Vessel Material: SA-516, SA-537 CL1, SA-537 CL2, Q370R, etc.
Design Standard	ASME VIII-2
Total Capacity m³	1500	2000	3000	5000	6000	8000
Medium	LPG	LPG	LPG	LPG	LPG	LPG
*Payload KG	750	1000	1500	2500	3000	4000
Shell Material	SA516M	SA537 CL.1	SA537 CL.1	SA537 CL.2	SA537 CL.2	SA537 CL.2
Filling Ratio	0.85	0.9	0.9	0.9	0.9	0.9
Tank Net Weight KG	258610	288617	431223	636868	732400	893620
Design Pressure MPa	1.77	1.77	1.77	1.8	1.77	1.42
Working Pressure MPa	1.57	1.4	1.57	1.7	1.57	1.2
MAWP MPa	1.77	1.77	1.77	1.8	1.77	1.42
Design Temperature ℃	-20/50	-20/50	-20/50	-40/50	50	-30/50
Working Temperature ℃	-18/40	35	-15~40	-35~40	40	-15/40
Corrosion Allowance MM	1.0	1.5	1.5	1.5	1.0	2.0
NDT	YES	YES	YES	YES	YES	YES
Hydraulic Test Pressure MPa	2.53	2.54	2.54	2.58	2.54	2.04
Air Tightness Test Pressure MPa	1.77	1.77	1.77	1.8	1.77	1.42
PWHT	YES	YES	YES	YES	YES	YES
Wind Pressure Pa	1035	1500	1500	2000	1500	3200
Snow Pressure Pa	--	--	--	300	--	--
Seismic Intensity	7 Degree	7 Degree	7 Degree	8 Degree	8 Degree	8 Degree
Field Soil Category	II	II	II	II	II	II
Please note that different medium component will cause different density and different payload. *Please contact for more different kinds of capacity and standard tanks.

Design Standard	ASME VIII-1			ASME VIII-2
Total Capacity m³	600	974	2000	2000
Medium	C4	Isobutane	Ethylene	Ethane
*Payload KG	278400	1809	1012600	747000
Filling Ratio	0.8	0.9	0.83	0.83
Material	SA537 CL.2	SA516M GR485	SA203 GR.F	SA203 GR.F
Net Weight KG	69628	109500	374367	399963
Design Pressure MPa	0.7/-0.03	0.79	1.98	2.15
Working Pressure MPa	0.47	0.6	1.65	1.775
Design Temperature ℃	-39/65	-20/50	120	120
Working Temperature ℃	42.5	40	-50~-10	-50~-10
Corrosion Allowance MM	2.5	1.5	4.0	4.0
Wind Pressure Pa	600	800	300	300
Snow Pressure Pa	400	0	1800	1800
Seismic Intensity	7 Degree	8 Degree	6 Degree	6 Degree
Field Soil Category	II	II	II	II
Please note that different medium component will cause different density and different payload. *Please contact for more different kinds of capacity and medium tanks.

Product Pictures

Tank Shell Pressing

Tank Shell Cutting

Factory Assembly Welding

Field Assembly

Field Assembling Welding

Heat Treatment

Pressure Test and Air Tightness Test

LPG Receiving Terminal

Based on collectivized operation and business synergy pattern and its own equipment manufacturing advantages, HONGTU is committed to providing global customers with integrated LPG engineering solutions, engineering services giving priority to engineering design and EPC services, and providing integrated services of system design, key equipment manufacturing, onsite installation and commissioning, personnel training and operation technical support.
