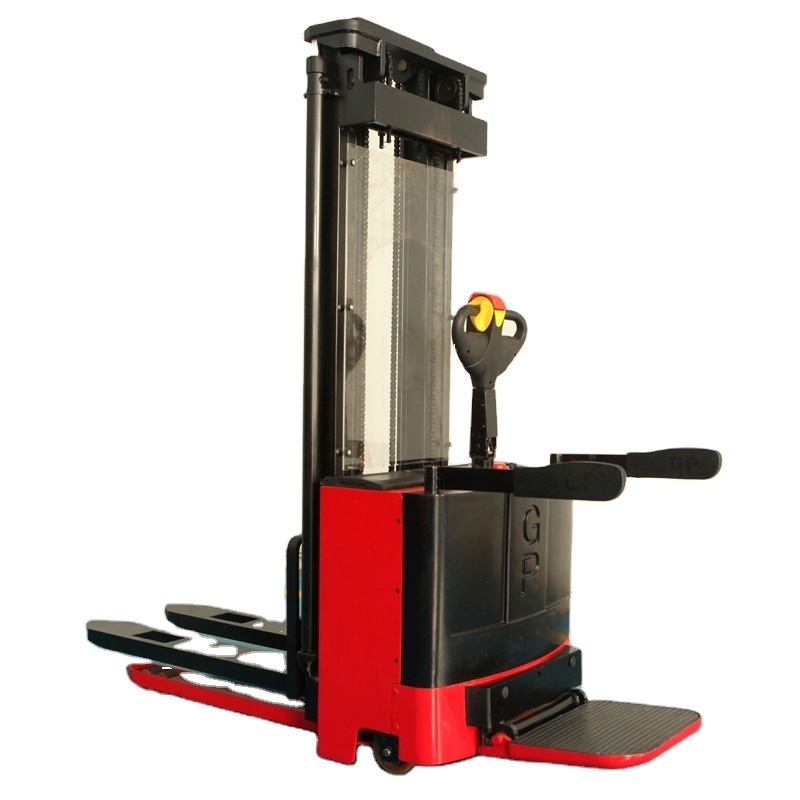

Low Cost Fully Electric Stacker Reach Stacker Types 1.5 Ton Automatic Electric Stacker
Low Cost Fully Electric Stacker Reach Stacker Types 1.5 Ton Automatic Electric Stacker
Low Cost Fully Electric Stacker Reach Stacker Types 1.5 Ton Automatic Electric Stacker
Low Cost Fully Electric Stacker Reach Stacker Types 1.5 Ton Automatic Electric Stacker
Low Cost Fully Electric Stacker Reach Stacker Types 1.5 Ton Automatic Electric Stacker
Low Cost Fully Electric Stacker Reach Stacker Types 1.5 Ton Automatic Electric Stacker
Low Cost Fully Electric Stacker Reach Stacker Types 1.5 Ton Automatic Electric Stacker
Low Cost Fully Electric Stacker Reach Stacker Types 1.5 Ton Automatic Electric Stacker

Low Cost Fully Electric Stacker Reach Stacker Types 1.5 Ton Automatic Electric Stacker

FOB Reference Price: Get Latest Price
≥1 Sets
US $4800
≥2 Sets
US $3500
≥3 Sets
US $2000
≥4 Sets
US $1800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
GP
Fork Length:
1070mm
Fork Width:
150mm
Overall Dimensions:
2100*1000mm (L*W)
Weight (KG):
2000 kg
Type:
Manual Pallet Truck
After-sales Service Provided:
Field installation, commissioning and training
Color:
Customer Demanded
Product Name:
Electric Forklift
Certification:
CE/ISO9001
Marketing Type:
New Product 2020

Quick Details

Min. Lifting Height:
85mm
Warranty:
3 years
Place of Origin:
Shaanxi, China
Brand Name:
GP
Fork Length:
1070mm
Fork Width:
150mm
Overall Dimensions:
2100*1000mm (L*W)
Weight (KG):
2000 kg
Type:
Manual Pallet Truck
After-sales Service Provided:
Field installation, commissioning and training
Color:
Customer Demanded
Product Name:
Electric Forklift
Certification:
CE/ISO9001
Marketing Type:
New Product 2020
Product Description
Product Description

TECHNICAL PARAMETERS

Characteristics
Unit
ESG118
ESG120
operating type
stand on /walkie
stand on /walkie
power source
battery
battery
load capacity
kg
1800
2000
load center
mm
600
600
wheel type
PU
PU
service weight
kg
1230
1230
wheel dimension
mm
230*70/130*55/80*70
230*70/130*55/80*70
wheel base
mm
1390
1390
wheel quantity
pcs
1/2/4
1/2/4
operate handle
mm
1413/1050
1413/1050
overall length
mm
1840/2260
1840/2260
overall width
mm
856
856
fork dimension
mm
60/180/1150
60/180/1150
outside width between forks
mm
570/600/650/685
570/600/650/685
Min ground clearance
mm
25
25
forklift height
mm
3000
3000
Min turning radius
mm
1630
1630
Min aisle width for pallets
mm
2180
2180
Gradeability
%
5/7
5/7
travel speed
km/h
5.5/6
5.5/6
lift speed
mm/s
110/120
110/120
lowering speed
mm/s
115/105
115/105
brake
Electromagnetic
Electromagnetic
drive motor
kw
1.5
1.5
lift motor
kw
3.0
3.0
steering motor
kw
0.165
0.165
battery voltage
v
24
24
battery capacity
Ah
240
280
controller
CURTIS
CURTIS
Detailed Images
Detailed Images

Machine Parts

Name:

Brand: GP

Original: China

Electronic power steering system,light and low noise.

drive unit floating bodies with patent design,AC driving system ,no carbon brush,maintenance free.

Main Features

Name:
Brand: GP
Original: China
USA CURTIS controller German  REMA handler,imported waterproof electrical components.electromagnetic braking system.

Machine Parts

Name:
Brand: GP
Original: China
Step less speed control system,controller with automatic protection. emergency reversing device /emergency brake switch.

Main Features

Name:
Brand: GP
Original: China
Integrated hydraulic and power control system ,Easily operation ,reliable performance.Brake effect when handler at highest and lowest position.More safety with double limit switch when lift.
