Cheap price run table textile fabric flat screen printing machine Used for textile fabric printing

Full-automatic Servo flat screen Scraper printing machine

Application

The flat screen printing machine is suitable for rugs, blankets and thick fabric, natural fiber , chemical fiber & other blended woven & knitted fabric.

Strong penetration of the non-woven fabric printing.

Technical parameter:

The width of the machine: 1800-4000mm

Color:1kinds-16kinds.

Driving Mode:Servo driving

Machine Type:Left/right hand machine

Fabric Weight:50g/ m² ~ 350 g/m ²

Compressed Air:0.6 ~ 0.8Mpa,1m3/min

Water Supply:Water pressure is not less than 0.3Mpa

Designing speed: 1~20m/min

The printed forms: network box of flat screen, Scraper printing printing

The power of the whole machine: About  60KW(Electric Drying)

Heat source: One set of electric/heat-conducting oil/Steam/gas heating the chamber

Drying Mode:3-layer fabric passing, hot air drying

Shape size:  21000*2500*3000MM

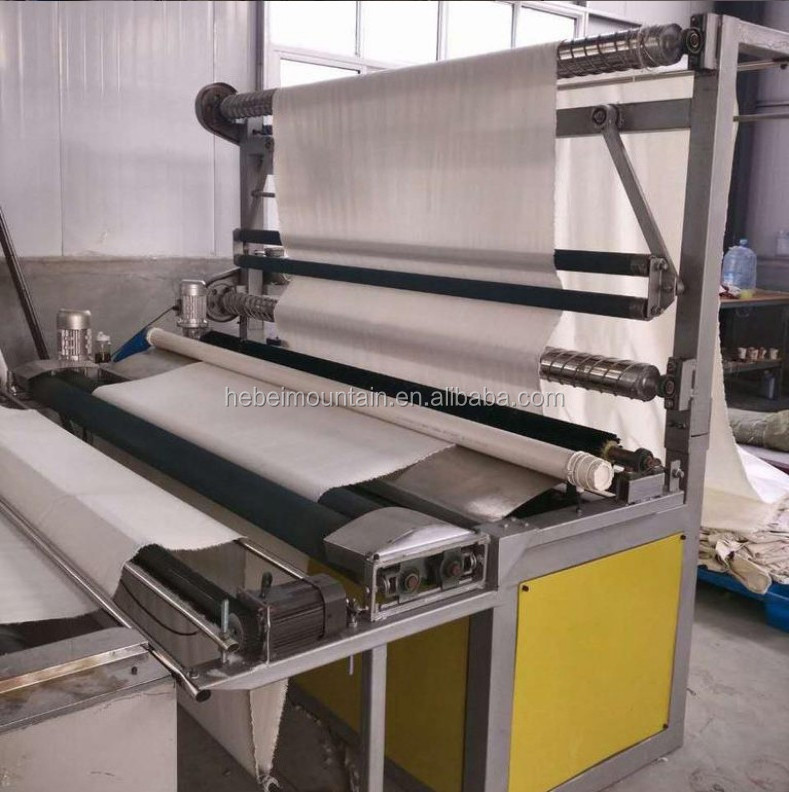

Machine Structure:Fabric entry,printing unit,drying unit,fabric exit

Technical characters

The whole conduction belt controls the search by computer automatically, solve the positive-negative error of conduction belt during high speed motion.

Conduction belt driving coupling adopt interference fit, clamp rigidity hard wired, faster reponse and higher precision.

The whole machine is HD LCD touch screen, high precision numerical positioning, control precison is 0.001MM, encoder resolution is : 131072P/REV, orientation module operating rate is 1.7 million /minute.

All-digital high precision single-servo conduction band positioning system adopt TaiDa system.High precision reducer ,Conduction drive double-roller bearings,

Printing belt adopt Swiss Rapplon high precision belt,

Machine side adopt  servo motor to control the lifting of screen  frame.

Equipped with scraper( coated and peel table glue), equipped with cleaning baffle plate.

MT-04PMG Printer 4 colors

Printing colors: 4 colors printing scrapers

Effective printing width: 2200mm

Standard printing precision: ± 0.1mm

Standard printing pattern repeat: 600-2200mm

Standard printing speed: 1~20m/min(scraper speed can be adjusted)

Aluminium alloy screen frame size: 2600× 900mm

Size of printing table: table is 9000mm long

Weight of printer: around 8 tons

Printer application: suitable for printing different kinds of silk, chemical fiber,cotton,knitted or woven fabric.

Full automatic textile printing process:

Open→ automatic opening across flats → tensionless patch → automatic squeegee printing → feeding → ovens → open-width doffing
