Table Travel (Z) (mm):: 1200 mm

Max. Table Load(kg):: 5000

Travel (W-axis) (mm):: 550 mm

Marketing Type:: Hot Product

Positioning Accuracy (X axis) mm:: 0.015

Positioning Accuracy (Y axis) mm:: 0.015

Positioning Accuracy (Z axis) mm:: 0.015

Range of Spindle Speed(r.p.m):: 2500 r.p.m

Spindle Motor Power(kW):: Fanuc 15/18.5

Production Capacity:: 40 Units/month

Place of Origin:: Jiangsu, China

Brand Name:: Guosheng

Voltage:: 220/380V,50HZ, 65 kva

Dimension(L*W*H):: 5800*6100*3500 mm

Weight (T):: 22 T

Product name:: DBE110 China High Accuracy CNC Cylinder Horizontal Boring Machine

Table size:: 1250*1250 mm

Division angle:: 1 degree

Reference aperture:: 75H7 mm

Max. load on worktable:: 5000 kg

T-shot:: 22H7*160*7 mm

Spindle motor power:: 15/18.5 kw

Max.torque of spindle:: 1182/1457 Nm

Tank Capacity:: 480 L

Quick Details

Table Size (mm):: 1250*1250

Table Travel (X) (mm):: 1700 mm

Table Travel (Y) (mm):: 1400 mm

Table Travel (Z) (mm):: 1200 mm

Max. Table Load(kg):: 5000

Travel (W-axis) (mm):: 550 mm

Marketing Type:: Hot Product

Positioning Accuracy (X axis) mm:: 0.015

Positioning Accuracy (Y axis) mm:: 0.015

Positioning Accuracy (Z axis) mm:: 0.015

Range of Spindle Speed(r.p.m):: 2500 r.p.m

Spindle Motor Power(kW):: Fanuc 15/18.5

Production Capacity:: 40 Units/month

Place of Origin:: Jiangsu, China

Brand Name:: Guosheng

Voltage:: 220/380V,50HZ, 65 kva

Dimension(L*W*H):: 5800*6100*3500 mm

Weight (T):: 22 T

Product name:: DBE110 China High Accuracy CNC Cylinder Horizontal Boring Machine

Table size:: 1250*1250 mm

Division angle:: 1 degree

Reference aperture:: 75H7 mm

Max. load on worktable:: 5000 kg

T-shot:: 22H7*160*7 mm

Spindle motor power:: 15/18.5 kw

Max.torque of spindle:: 1182/1457 Nm

Tank Capacity:: 480 L

Product Overview

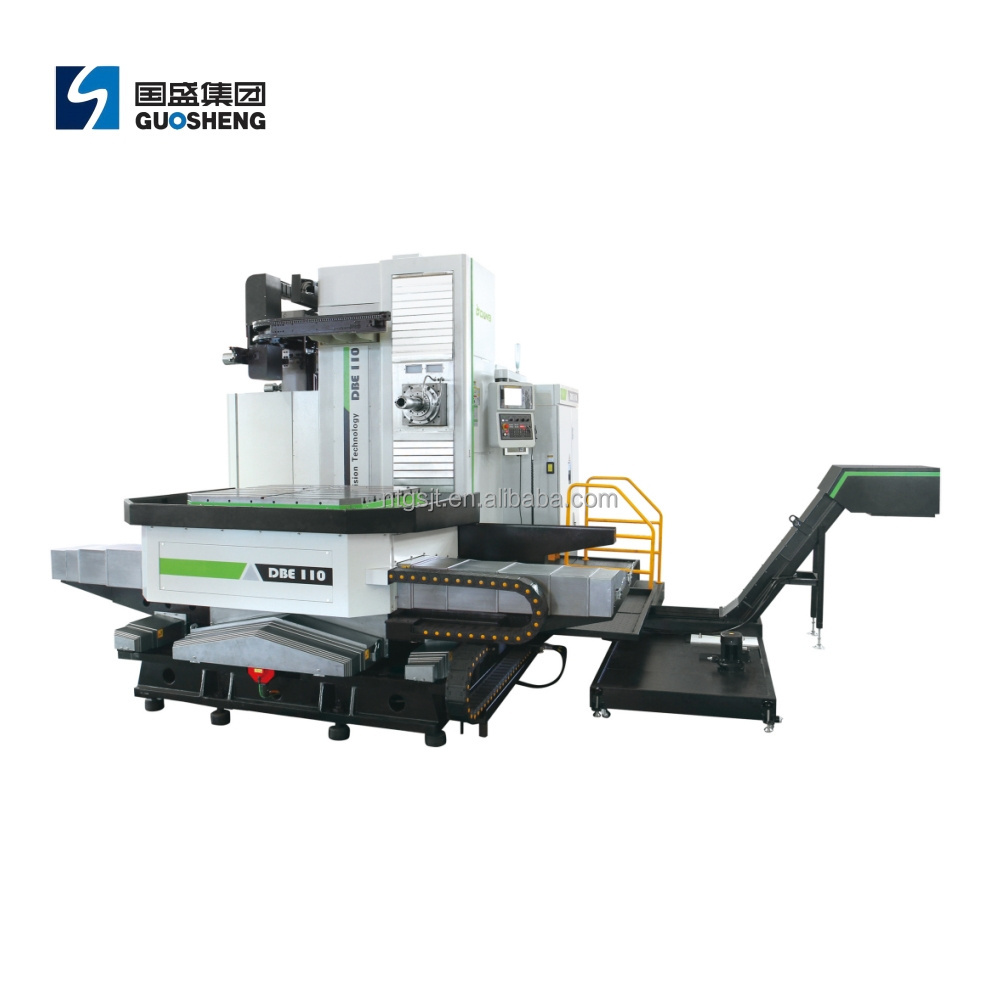

DBE110 China High Accuracy CNC Cylinder Horizontal Boring And Honing Machine For Sale

DBE/DBM series are Dawei’s new high-end products，XZ-axis using heavy roller linear guide , Y-axis using heavy type hard guide，Can deal with from high precision to heavy cutting processing, from steel parts to casting and other materials processing.

FEATURES AT A GLANCE

1. Meehanna castings, integrated casting molding.

2. H eavy-duty roller linear guide.

3. Column mobile heavy cutting structure.

4. The gear spindle head is cast in one piece.

5. Hydraulic station adopts high quality hydraulic components, reliable action, high stability.

Right elevation

Front elevation

Side elevation

PRODUCT SPECIFICATIONS

Model	Unit	DBE110
Travel
X-axis travel (standard)	mm	1700
Y-axis travel (standard)	mm	1400
Z-axis travel (standard)	mm	1200
W-axis travel (standard)	mm	550
Spindle
Spindle center to worktable surface	mm	0~1400
Spindle nose to worktable center	mm	-70~1680
Spinde diameter	mm	110
Spindle taper		BT50
Rotating spindle speed (standard)	rpm/min	35~2500
Rotating spindle speed (optional)	rpm/min	35~3500
Number of steps of rotating speed of spindle		2 Steps
Spindle drive mode		Belt
Spindle motor	Kw	Fanuc 15/18.5
Max.torque of spindle	Nm	1182/1457
Worktable
Table size	mm	1250*1250
Division angle	deg	1°
Reference aperture	mm	Φ75H7
Max. load on worktable	kg	5000
T-shot	mm	22H71607
Precision
Positioning accuracy of rotary table	arc-sec	10″
Repeated Positioning accuracy of rotary table	arc-sec	3″
Positioning accuracy	mm	0.015
Repeated Positioning accuracy	mm	0.01
Drive Mode
XYZ-axis		Direct-drive
W-axis		Belt-drive
Y-axis counterweight		clump weight
Feed speed
Cutting speed X/Y/Z/W	m/min	10/10/10/6
Rapid traverse speed X/Y/Z/W	m/min	12/12/12/8
Configuration of motor
X_axis motor		βiS 30
Y_axis motor		βiS 40 B
Z_axis motor		βiS 40
Spindle motor		βiⅠP 30
B_axis motor		βiS 30
Tool magazine（Optional）
Capacity of tool magazine		40
Max. tool weight	kg	25
Max. tool length	mm	500
Max. tool diameter (No adjacent tool)	mm	Φ125/250
Others
Air pressure	kgf/cm²	6
Voltage	kva	65
Tank Capacity	L	480
Floor area (lengthwidthheight)	mm	580061003500
Weight	kg	22000

Details Images

The rotary table is driven by worm gear

The worm gear drive is used in the mechanical transmission part ofthe slewing table. Compact structure, stable transmission, vibration.shock and noise are small. The rotating worktable (B-axis) has circular grating feedback controlto ensure positioning accuracy.

The rotary table is driven by worm gear

The mechanical transmission part of the workbench is driven by worm gear. Compact structure, smooth transmission, vibration, impact, noise is small

High precision spindle

The main shaft drive adopts two gear speed, wide range of speed, high spindle speed, high output torque, the highest speed 2500rpm, meet the low speed and large cutting amount of face milling conditions.

Exquisite scraping process

Exquisite scraping technology, eliminate the stress of the machine tool, make the surface contact into point contact, increase the stability of the machine tool, reduce the machine tool mechanical movement noise

Reliable automated tool magazine（optional）

Reliable automatic tool library, consisting of tool library and tool change arm, two-way tool library using the shortest path, the large size tool collision only need to consider the first installation.
