Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GUOTUO
-
Model Number:
-
GR600
-
Voltage:
-
220V 50Hz
-
Dimension(L*W*H):
-
L6800xW1700xH1800mm
-
Weight:
-
2700 KG
-
Product name:
-
Fully Automatic Bag Making Machine
-
After-sales Service Provided:
-
1 Year
-
Bag Length:
-
280-700MM
-
Bag Width:
-
180-430MM
-
Speed:
-
100-320pcs/min
-
Main motor:
-
4.8 KW
-
Keywords:
-
HDPE LDPE LLDPE PE BAG MACHINE
-
Bag material:
-
PE Material
-
PLC:
-
PANASONC JAPAN
-
Automatic:
-
Full-automatic
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
GARBAGE BAG
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GUOTUO
-
Model Number:
-
GR600
-
Voltage:
-
220V 50Hz
-
Dimension(L*W*H):
-
L6800xW1700xH1800mm
-
Weight:
-
2700 KG
-
Product name:
-
Fully Automatic Bag Making Machine
-
After-sales Service Provided:
-
1 Year
-
Bag Length:
-
280-700MM
-
Bag Width:
-
180-430MM
-
Speed:
-
100-320pcs/min
-
Main motor:
-
4.8 KW
-
Keywords:
-
HDPE LDPE LLDPE PE BAG MACHINE
-
Bag material:
-
PE Material
-
PLC:
-
PANASONC JAPAN
-
Automatic:
-
Full-automatic
Product Description

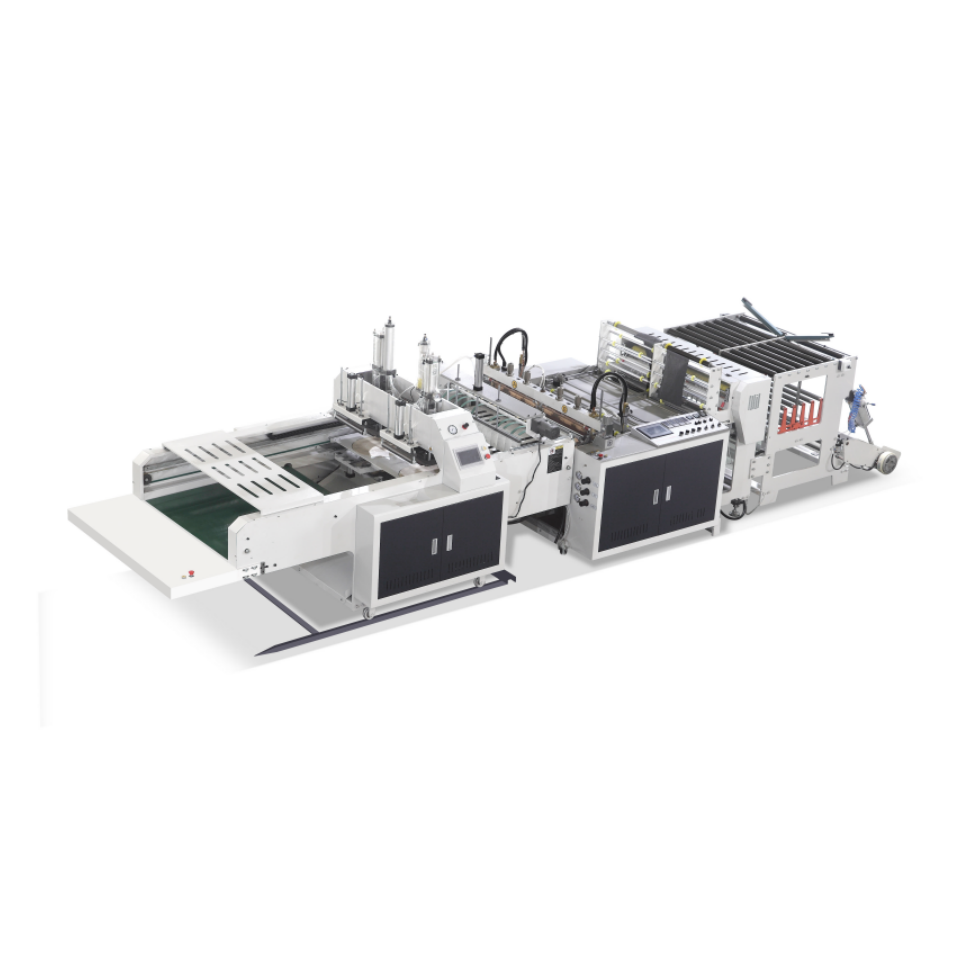

Full Automatic Computer Control Heat Sealing Hot Cutting
Super High Speed T-shirt Bag Making Machines
Main feature
Advanced Technology:
precise cutting and sealing mechanisms.
Versatility:
the machine's ability to produce various types of bags, including polyethylene (PE) bags, biodegradble bags, and more, in different sizes and shapes.
Customization:
machines can be tailored to meet specific production requirements, such as adjustable bag dimensions and printing capabilities.
Automation:
automatic feeding, cutting, and stacking.
Durability:
the robust construction and materials used in the machine's build to ensure longevity and reliable performance.
Specification
|
Model
|
GT500*2
|
GT600
|
GT700
|
GT800
|
Customize
|
|
Max. Width
|
180-450mm×2
|
180-540mm×1
|
180-540mm×1
|
180-740mm×1
|
|
|
Max. Length
|
280-700mm*2
|
280-850mm×1
|
280-850mm×1
|
350-1400mm*1
|
|
|
Thickness
|
0.01-0.05mm
|
0.01-0.05mm
|
0.01-0.05mm
|
0.01-0.05mm
|
|
|
Speed
|
100-400pcs/min*2
|
100-400pcs/min*2
|
100-400pcs/min*2
|
100-400pcs/min
|
|
|
Lines
|
2
|
1
|
1
|
1
|
|
|
Air Pressure
|
10HP
|
10HP
|
10HP
|
10HP
|
|
|
Total Power
|
16KW
|
12KW
|
12KW
|
12KW
|
|
|
Weight
|
2700kg
|
2400KG
|
2500KG
|
2600KG
|
|
|
Dimension (L*W*H)mm
|
6500*2800*1900
|
7500*1500*1800
|
7500*1500*1800
|
7500*1500*1800
|
|
Details Images
Air cylinder unwind device
Magnetic particle control, high speed braking,
High-precision gears,
Pneumatic loading and unloading, reducing manual labor
Feeding tailstock
Oxidized guide roller, long service life,
Make the film plastic bag flat,
No stretching,
Analog temperature control,
Automatic adjustment
Heat sealing and cutting device
The sealing knife "turning" device facilitates cleaning of the sealing knife and makes maintenance easier.
The entire set of bags adopts a swing design, and there is no sticking between the two bag mouths.
Automatic collect table
Imported booster cylinder
The bag collection table adopts automatic bag collection and delivery, equipped with a clamping device, and is controlled by an AC variable frequency motor to make the bags more tidy
